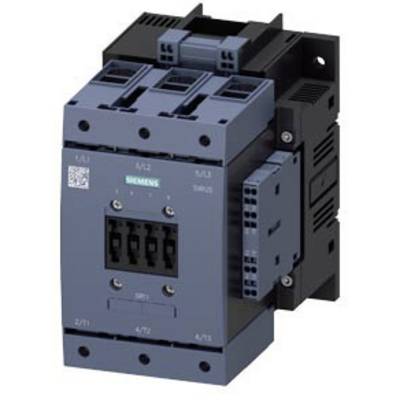

Siemens 3RT1054-3AP36 Electrical contactor 3 makers 1000 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Nominal voltage
1000 V AC
Connection
Clamp
Type
3RT1054-3AP36
Datasheet (PDF)
Number
Total (€ 646.22 / piece)
€ 646.22
plus VAT.
Technical specifications
- Type of voltage, AC/DC
- Conductor cross-section single or multi-strand: 70 mm²
- Conductor cross-section for finely-stranded: 70mm²
- Product type
Electrical contactor
- Type
3RT1054-3AP36
- Type
S6
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
1000 V AC
- Mounting type
Screw-fit
- Connection
Clamp
- Durability
1000 0000
IP00
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
120 mm
- Height
172 mm
- Depth
170 mm
- Dim

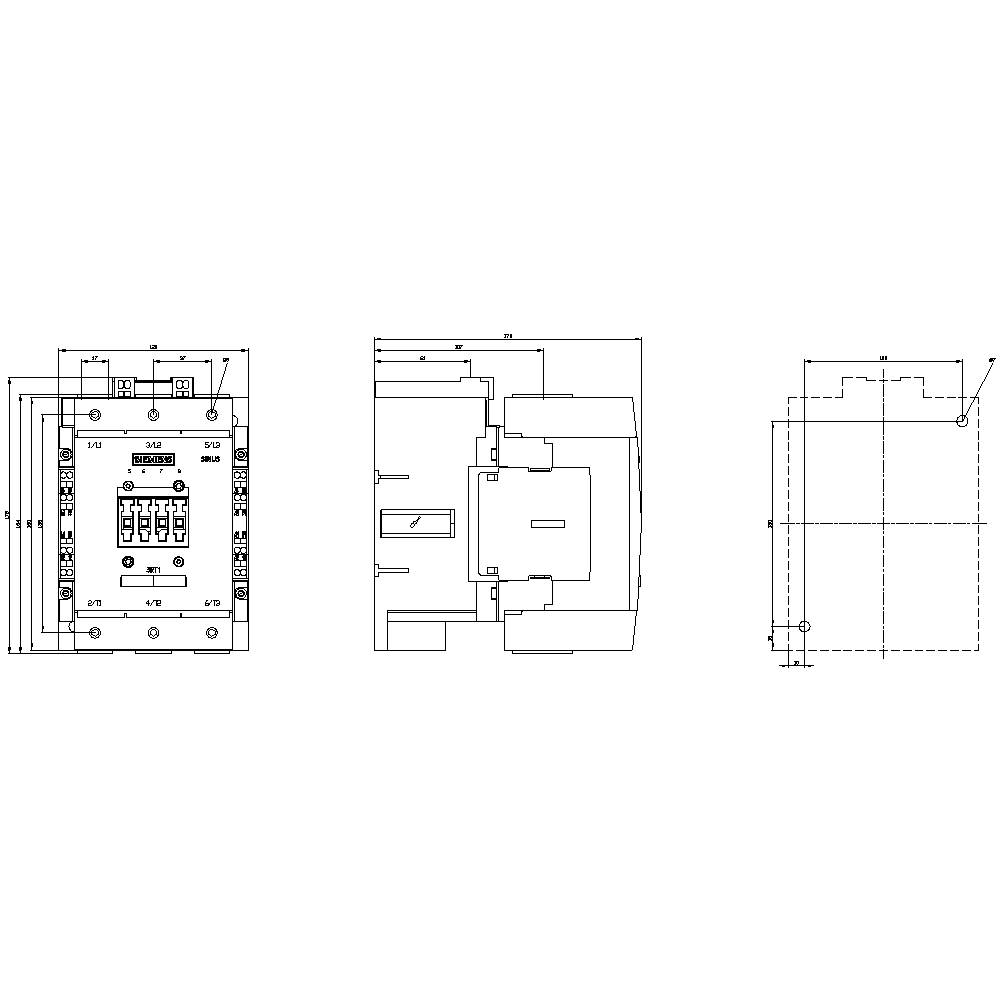

(W x H x D) 120 x 172 x 170 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
55 kW
3
2
2
115 A
160 A
220-240 V
220-240 V
220-240 V
Frame clamp
AC/DC
97 A
55 kW
73.55
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1704632 Siemens 3RT1054-3AP36 Electrical contactor 3 makers 1000 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1704632 Siemens 3RT1054-3AP36 Electrical contactor 3 makers 1000 V AC 1 pc(s)
Description
Adapter for mechanical interlocking of contactor S3 3RT1.4 (AC) with S6 3RT1.5 and locking device 3RA1954-2A
