Name: Siemens 3RT1364-6AR36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand):
Brand: Siemens
SKU: 2863531

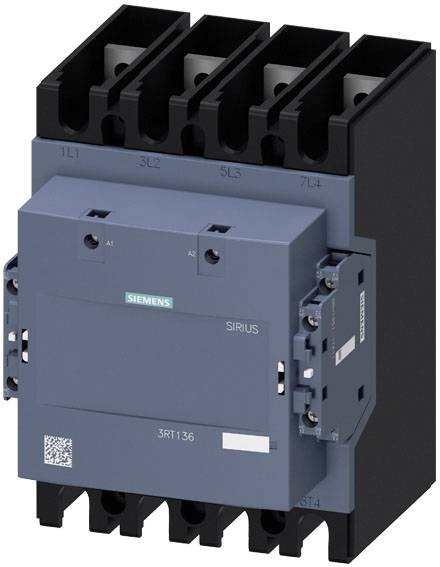

A Siemens electrical contactor, model SIRIUS 3RT136, depicted in a technical diagram.

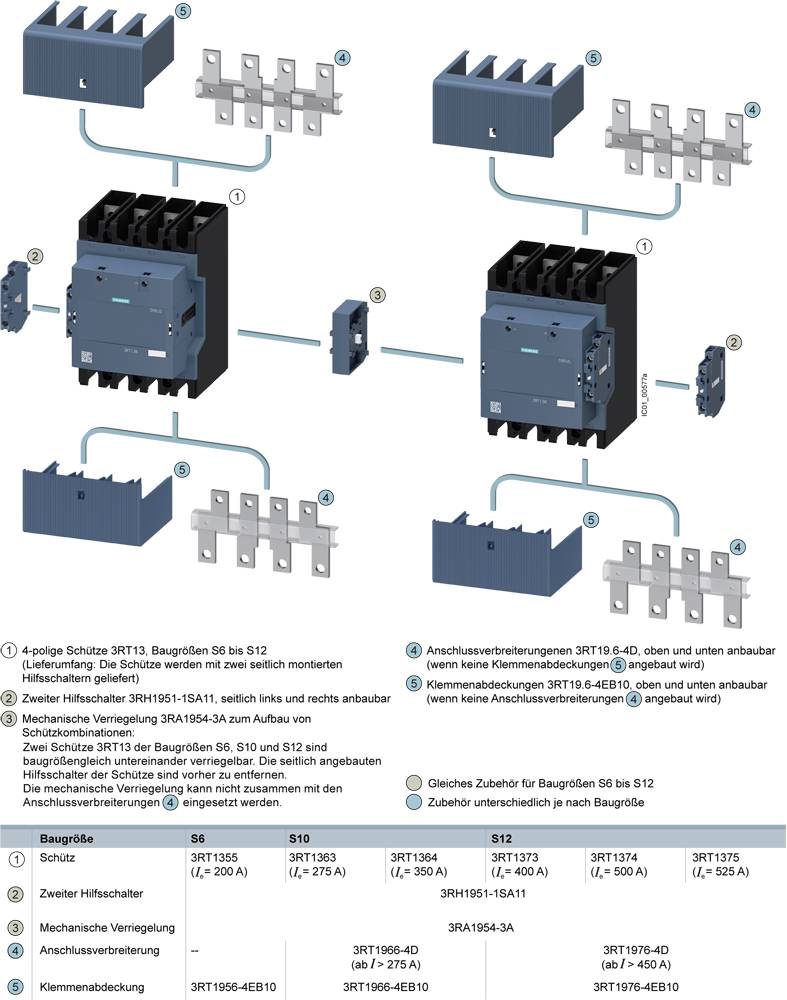

Illustration shows four-pole contactors and their accessories. Presentation of mounting options for connection and extension accessories.

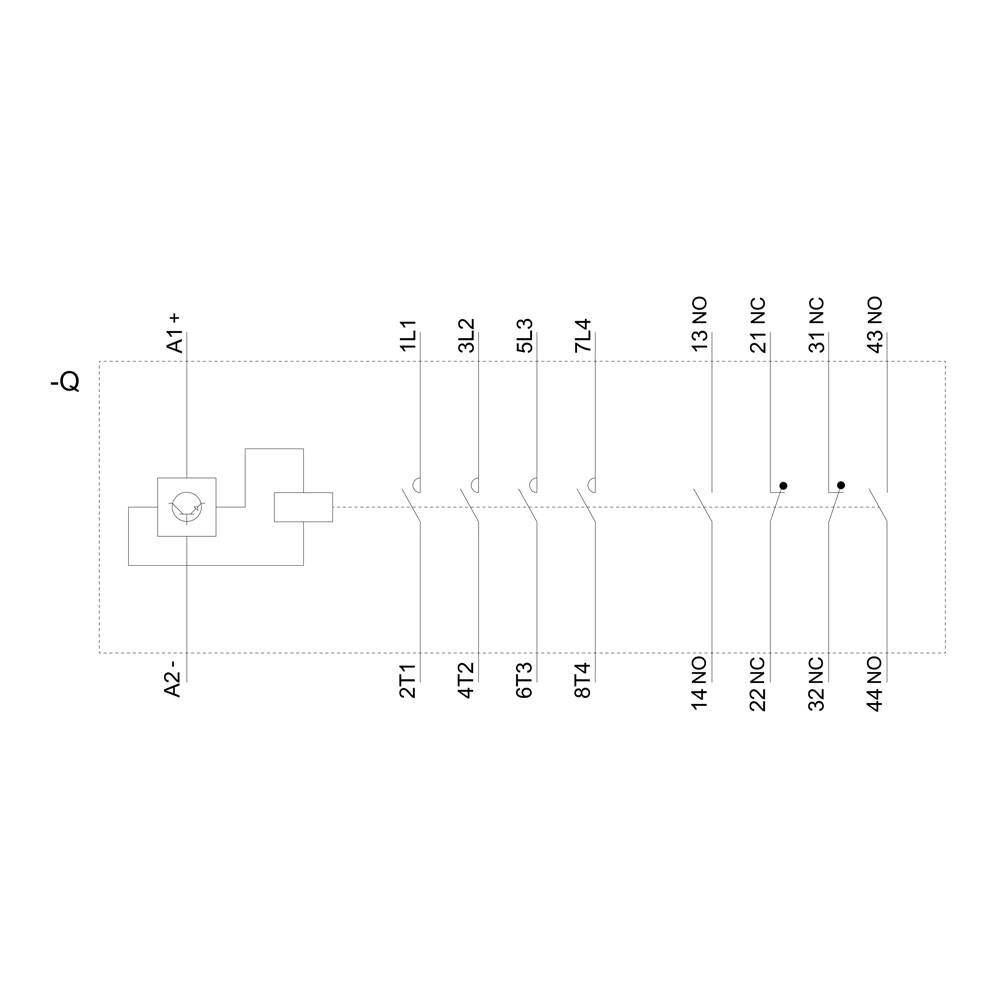

'Electrical circuit diagram with multiple switches and connections. Labels such as 1L1, 2T1, 4T2 are visible.'

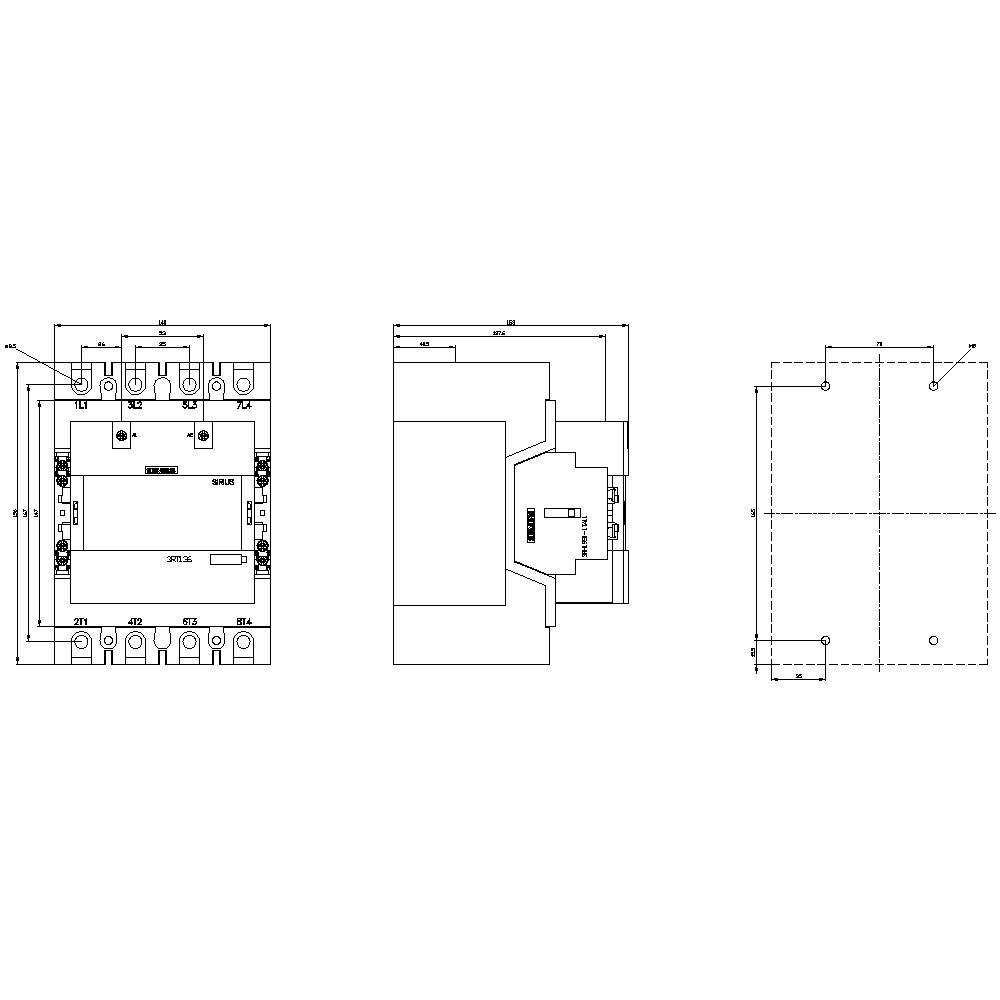

Technical drawing of an electrical circuit diagram with various views and dimensions of a component.

1/4

Image similar

Product type

Contactor

No. of pins

4-pin

Nominal voltage

1000 V

Power

110000 W

Connection

Screws

Terminal strip

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of NO contacts/on the contactor/for auxiliary contacts: 2
Number of NO contacts / for main contacts: 4
Number of NO contacts / for auxiliary contacts: 2
Number of NO contacts / for auxiliary contacts / can be installed: 2
Number of NO contacts / for auxiliary contacts / instantaneous switching: 2
Number of NC /on contactor/for auxiliary contacts: 2
Number of NC /for auxiliary contacts: 2
Number of NC contacts / for auxiliary contacts / can be installed: 2
Number of NC contacts / for auxiliary contacts / instantaneous switching: 2
Operating current at AC-1 / at 400 V / at ambient temperature 40 °C: 350 A
Operating current at AC-3 / at 400 V: 205 A
Tightening capacity of the magnetic coil at DC 190 W.
Type of connectable wire cross-sections / for AWG lines / for auxiliary contacts: 1x (18 ... 14), 2x (18 ... 14)
Installation height at height above sea level / maximum: 2000 m.
Range installation: Yes
Front contact protection: Finger-proof in vertical contact from the front with frame terminal/cover
Insulation voltage of main circuit at pollution level 3: 1000 V.
Mirror contact: Yes
Protection type: Front IP20 with cover
Main circuit surge resistance: 8 kV
Product extension / auxiliary switch: Yes

Product type: Contactor

Type: 3RT1364-6AR36

Type: S10

No. of pins: 4-pin

Contact type: 2 makers
2 breakers

Auxiliary contact type: 2 makers
2 breakers

Nominal voltage: 1000 V

Control voltage (min.): 250 V AC
250 V DC

Control voltage (max.): 500 V AC
500 V DC

Control voltage range: 250, 250 - 500, 500 V AC, V DC

Max. switching capacity: 110000 W

Permanent current (max.): 350 A

: 110000 W

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Screw-fit

Connection: Screws
Terminal strip

Response time: 80 ms

Fall time: 60 ms

: IP00

Min. temperature: -40 °C

Max. temperature: +60 °C

Width: 140 mm

Height: 196 mm

Depth: 153 mm

Dim: (W x H x D) 140 x 196 x 153 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Power

No. of pins

Nominal voltage

Siemens 3RT1364-6AR36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863531

Unavailable

Conrad Electronic

This article

110000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AE36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863517

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AF36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863519

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AP36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863521

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AR36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863523

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AE36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:2863524

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AF36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863525

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AP36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863526

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AR36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863527

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1364-6AE36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:2863528

Unavailable

Conrad Electronic

110000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2863531 Siemens 3RT1364-6AR36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand):

User & Safety Instructions

User & Safety Instructions 2863531 Siemens 3RT1364-6AR36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand):

Description

Sluice, AC-1, 350 a/400 V/40 °C, S10, 4-pin, AC/DC 250-500V, 2S+2Ö, Connection rail/ Screw connection Simple, efficient, always up-to-date - the SIRIUS system components.

This text is machine translated.
