Name: Siemens 3RT2026-2DB40 Contactor 1 maker, 1 breaker 40 kW 690 V 22 A + varistor Compatible with (relay brand): Siemens 1
Brand: Siemens
SKU: 2863575

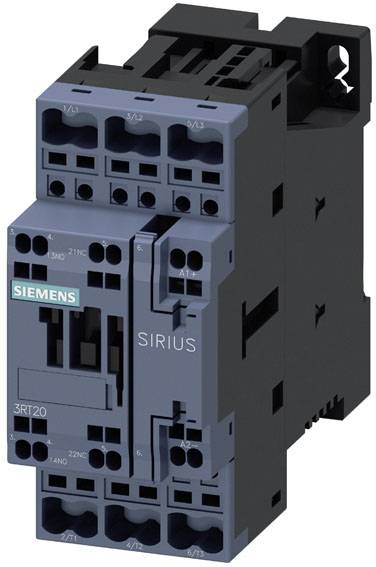

A Siemens Sirius contactor, model 3RT2027. Contains terminals for control circuit and load circuit connections, used in switchgear installations.

An open electrical cabinet with cables and components beside a rain-streaked window; machinery blurred in the background.

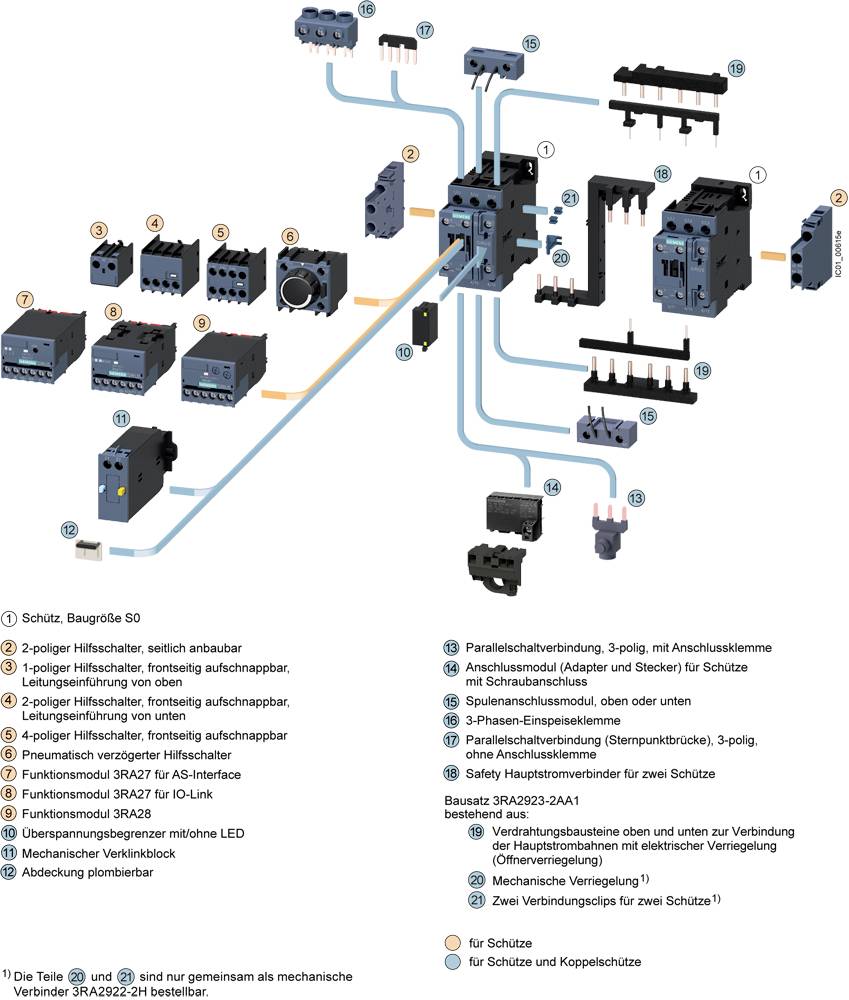

Technical drawing shows the wiring diagram of a contactor with associated accessories and numbering for assembly.

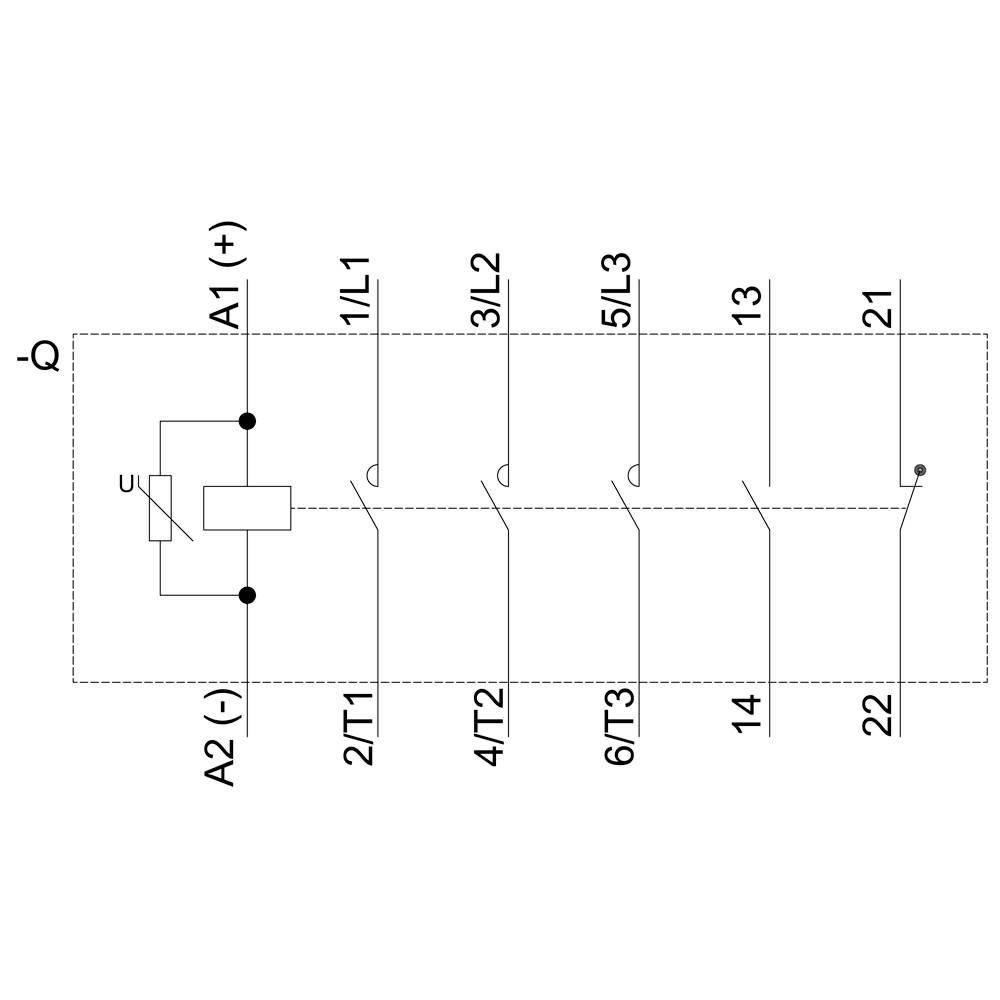

Circuit diagram of an electrical component with multiple terminals and contacts, labelled A1, A2, 1L1, 2T1, 3L2, 4T2, 5L3, 6T3.

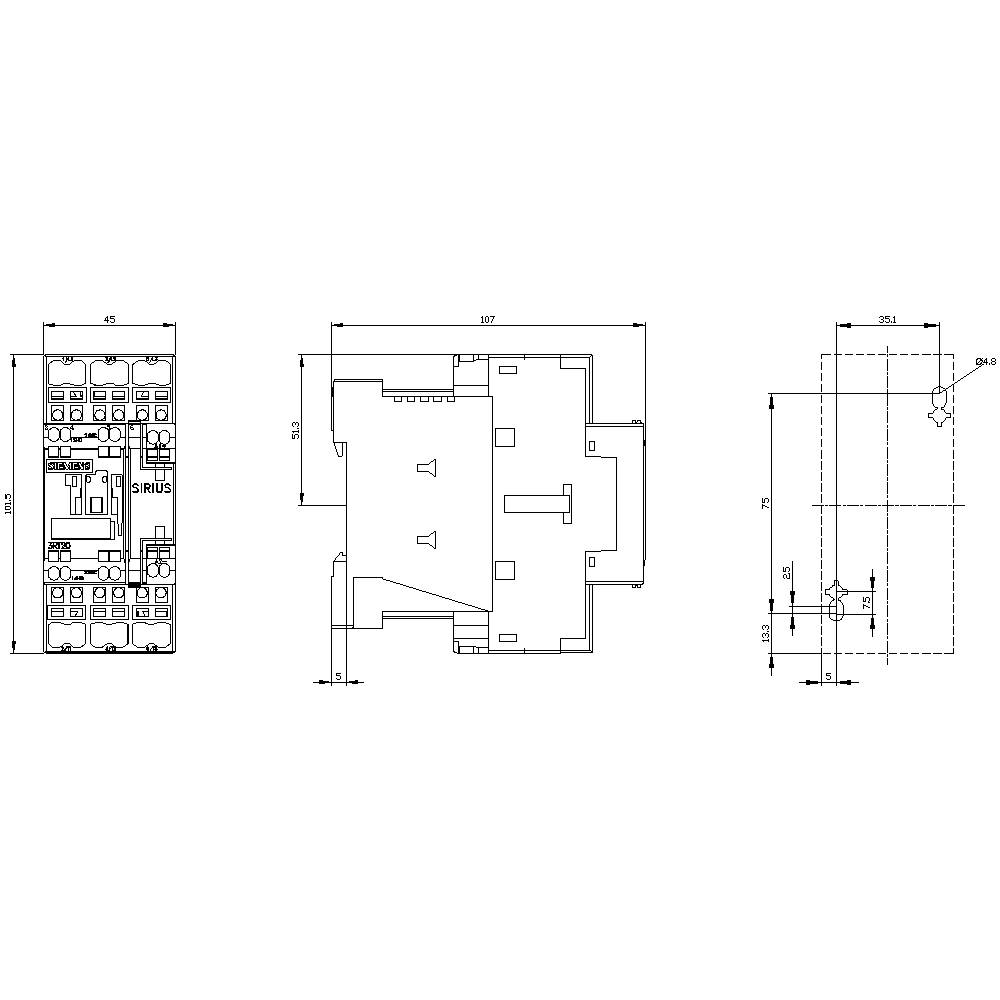

Technical drawing of an electrical circuit diagram with dimensions and details of components and connections in triple view.

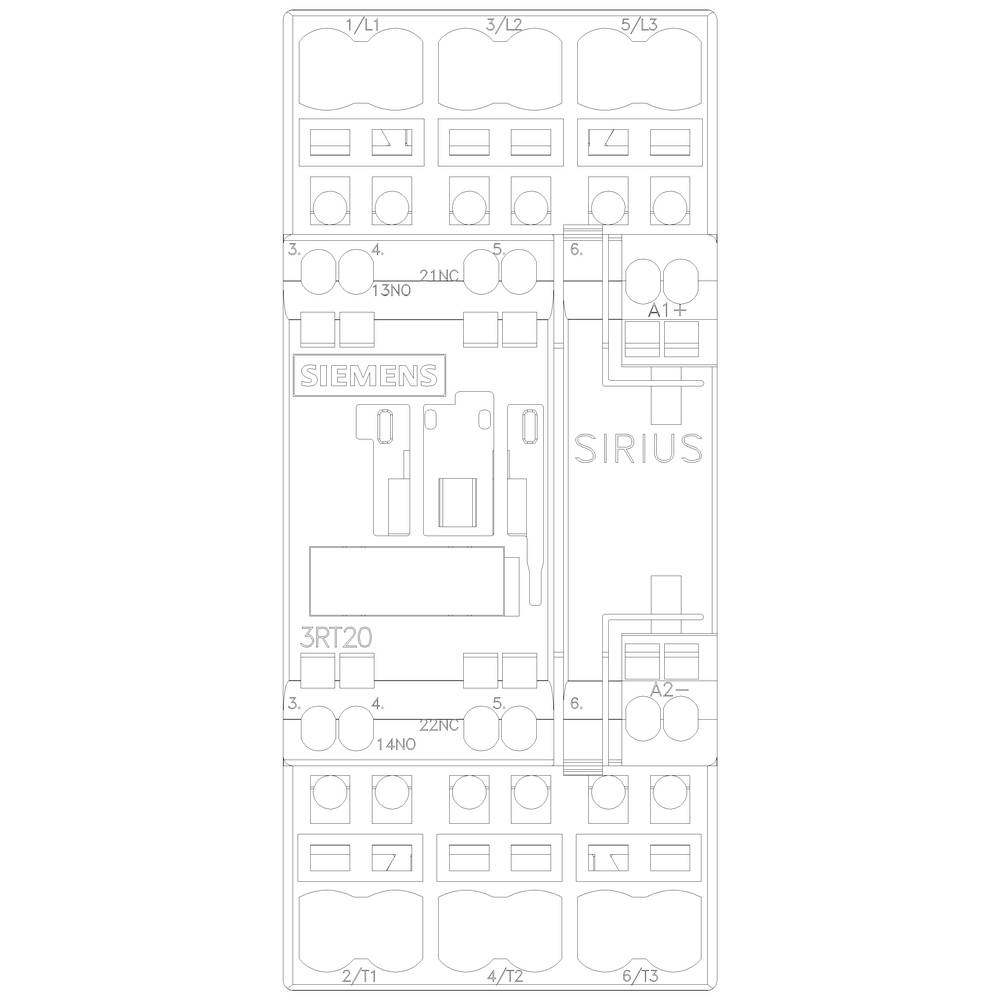

Circuit diagram of a Siemens SIRIUS contactor. Shows connections, switching surfaces and model number 3RT20. Illustrates electrical circuit configuration.

1/6

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V

Current load

22 A

Power

40 kW

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of NO contacts / for main contacts: 3
Number of NO contacts / for auxiliary contacts / instantaneous switching: 1
Number of NC contacts / for auxiliary contacts / instantaneous switching: 1
Operating current at AC-1 / at 400 V / at ambient temperature 40 °C: 40 A
Operating current at AC-3 / at 400 V: 25 A
Tightening capacity of the magnetic coil at DC 5.9 W.
Type of connectable wire cross-sections / for AWG lines / for main contacts: 2x (18 ... 8)
Type of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 14)
Installation height at height above sea level / maximum: 2000 m.
Range installation: Yes
Front contact protection: Finger-safe with vertical contact from the front
Mechanical life (switching cycles) of the contactor with fitted electronic auxiliary switch block / typical: 5000000
Mechanical life (switching cycles) of the contactor with the auxiliary switch block attached / typical: 10000000
Mirror contact: Yes
Main circuit surge resistance: 6 kV
Maximum permissible voltage for safe disconnection / between coil and main contacts: 400 V.
Product extension / auxiliary switch: Yes

Product type: Contactor

Type: 3RT2026-2DB40

Type: S0

No. of pins: 3-pin

Contact type: 1 maker
1 breaker

Nominal voltage: 690 V

Control voltage (min.): 24 V DC

Control voltage (max.): 24 V DC

Control voltage range: 24 - 24 V DC

Switching voltage (max.): 690 V AC

Max. switching capacity: 40000 W

Permanent current (max.): 40 A

Current load: 22 A

: 40 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + varistor

Mounting type: Screw-fit
Snap-in
DIN rail

Connection: Spring-loaded connector

Durability: 10000000

Response time: 17.5 ms

Fall time: 170 ms

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 102 mm

Depth: 107 mm

Dim: (W x H x D) 45 x 102 x 107 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Power

No. of pins

Nominal voltage

Siemens 3RT1355-6AE36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863517

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AF36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863519

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AP36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863521

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AR36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863523

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AE36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:2863524

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AF36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863525

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AP36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863526

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AR36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863527

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1364-6AE36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:2863528

Unavailable

Conrad Electronic

110000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1364-6AF36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863529

Unavailable

Conrad Electronic

110000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2863575 Siemens 3RT2026-2DB40 Contactor 1 maker, 1 breaker 40 kW 690 V 22 A + varistor Compatible with (relay brand): Siemens 1

User & Safety Instructions

User & Safety Instructions 2863575 Siemens 3RT2026-2DB40 Contactor 1 maker, 1 breaker 40 kW 690 V 22 A + varistor Compatible with (relay brand): Siemens 1

Description

Power contactor, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, DC 24 V, with inserted varistor, auxiliary contacts: 1 S + 1 NC, spring-loaded connector SIRIUS 3RT2 power contactor for switching motors.
The 3RT2 contactors are part of the SIRIUS modular system with their optimally coordinated products. They convince by high power with a compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations have been tested at the factory. The contactors provide optimum connection to the controller (parallel, via ASi or IO-Link) for each application. Integrated auxiliary switches reduce the complexity of your setup. The front connections allow simple wiring. The 3RT2 contactors are climate-proof, worldwide approved (e.g. IEC and UL/CSA) and IE3/IE4ready.
They are available in various sizes and in a wide power range with AC and DC actuation. Apart from screw connection technology, the devices are also available continuously with spring connection for a fast, maintenance-free and vibration-proof connection.
The comprehensive accessories, such as auxiliary switch, auxiliary release, etc. are uniform for all sizes. The available connection modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring effort.
The 3RT2 contactors replace the tried-and-tested series 3RT1 (up to 55 kW).
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
