Buy Siemens 3RT2035-1AC10 Electrical contactor 3 makers 690 V AC 1 pc(s)

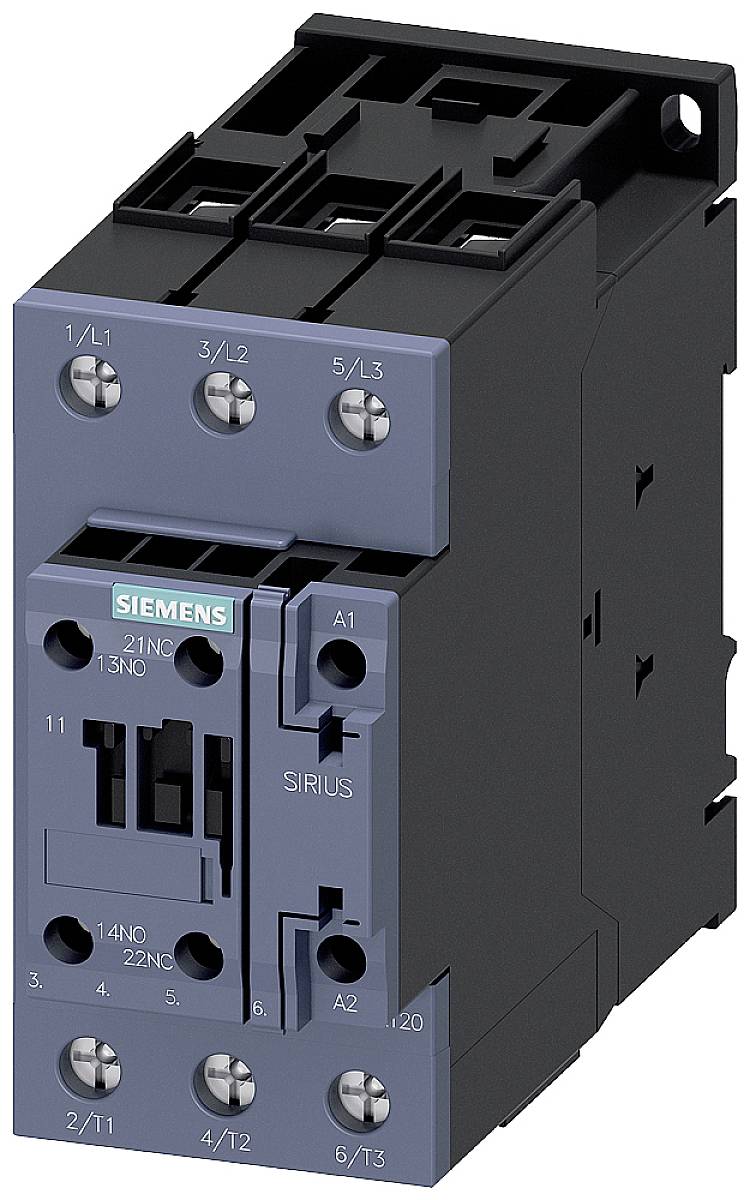

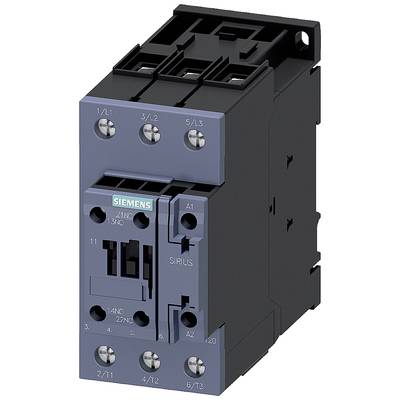

A Siemens electrical contactor, Sirius model. Black housing with blue elements, suitable for industrial applications.

Image similar

An electrical control box with various cables and switches stands open, with a machine visible through a rain-streaked window in the background.

Diagram of a protection device with various connections and components. Each part is numbered and identified to explain the assembly and function.

Circuit diagram of an electrical circuit with switches and connections, labelled with A1, A2, 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, 13 NO, 21 NC, 14 NO, 22 NC.

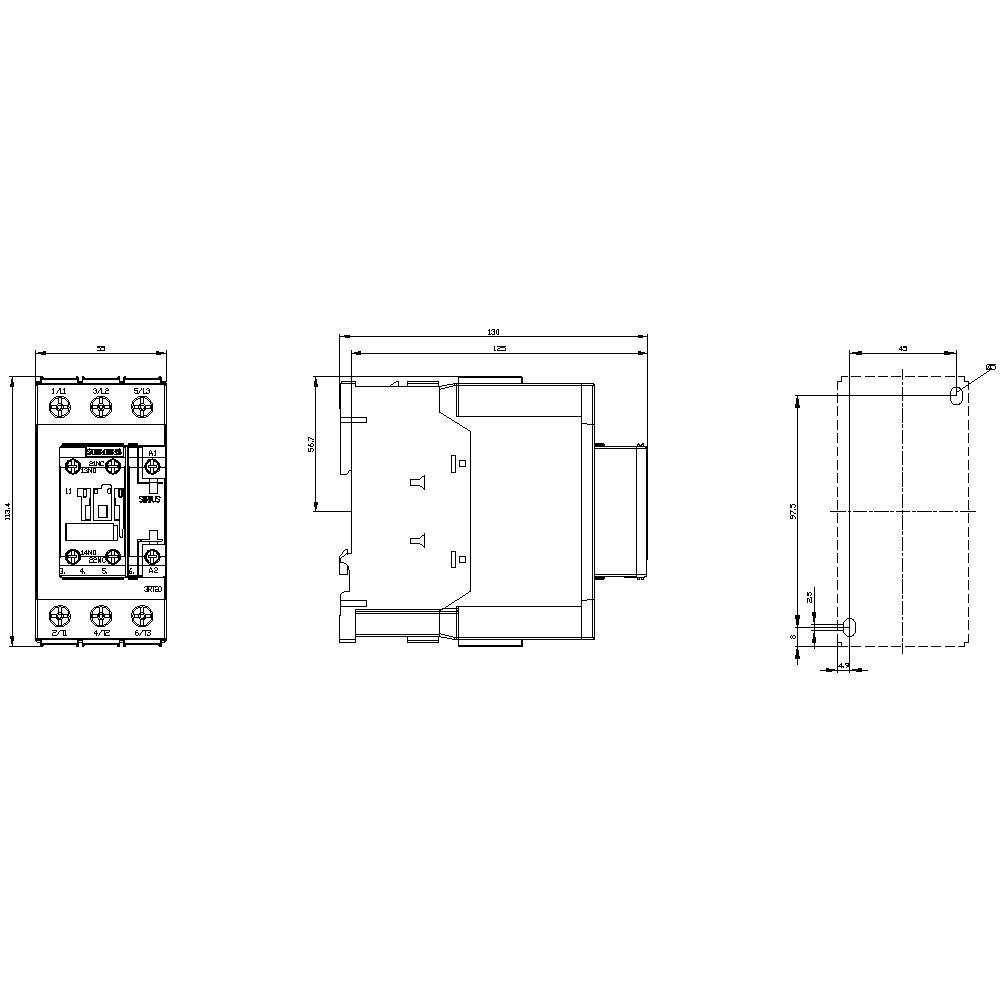

Technical drawing of a component with front, side, and top views. Contains dimensional specifications and lines for precise construction.

1/5

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Connection

Screws

Type

3RT2035-1AC10

Datasheet (PDF)

Dispatches on Tue, 1 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 151.25 / piece)

€ 151.25

plus VAT.

Report legal concerns

Highlights & Details

COMPLETE UNIT, ROUND

Our service for you

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Electrical contactor

Type: 3RT2035-1AC10

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 130 mm

Dim: (W x H x D) 55 x 114 x 130 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 18.5 kW

: 3

: 1

: 1

: 41 A

: 60 A

: Screw connection

: AC

: 35 A

: 22.0649625

Documents & Downloads

Datasheet

Datasheet 1704998 Siemens 3RT2035-1AC10 Electrical contactor 3 makers 690 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1704998 Siemens 3RT2035-1AC10 Electrical contactor 3 makers 690 V AC 1 pc(s)

Description

Selector switch, 22 mm, round, Metal, Black, Selector switch, short, heavy duty, 3 switch positions I-O-II, Latching, Actuating angle 2x50 degrees, With holder, 1NO, 1NO, Screw terminal, Resistant to solvents !!! Phased-out product !!! Successor is SIRIUS ACT 3SU1 Preferred successor type is 3SU1052-2BL10-0AA0 + 3SU1550-0AA10-0AA0 + 3SU1400-1AA10-1BA0
