Buy Siemens 3RT2036-1AM20-0UA0 Contactor 3 makers 690 V AC 1 pc(s)

'Siemens' contactor, model 3RT with screw terminals, for controlling electrical circuits in industrial applications.

Image similar

An open electrical cabinet reveals electrical components next to a rain-streaked glass pane, making a glimpse of an industrial machine visible behind it.

Contactor Module Diagram: Shows the wiring and components of a modular contactor, including main current contacts and auxiliary blocks.

'Wiring diagram of a relay with coil L1; connections to terminals A1, A2, 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, 13/NO, 14/NC, 21/NC, 22/NC.'

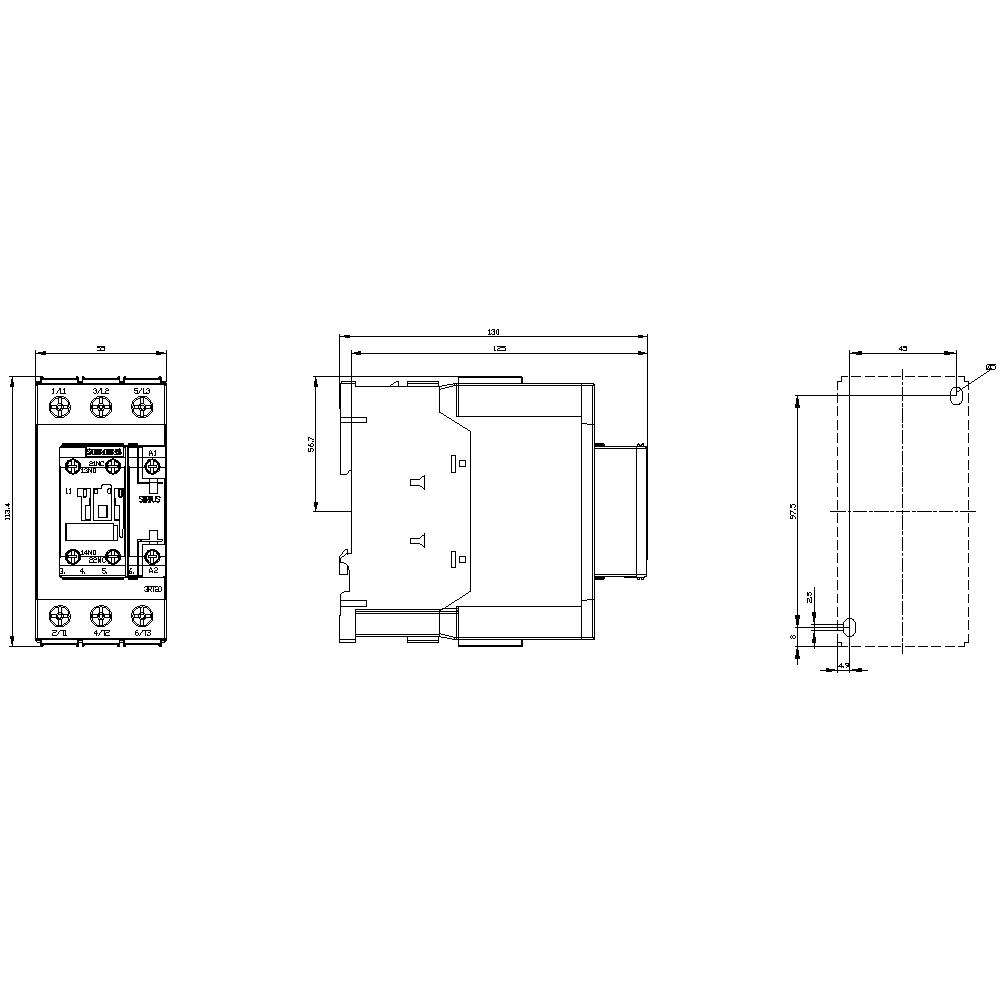

Technical drawing of an electrical component with dimensions: height 69mm, width 27mm, depth 36mm. Front, side, and top view.

1/5

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Connection

Screws

Type

3RT2036-1AM20-0UA0

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

ACTUATOR

Our service for you

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Contactor

Type: 3RT2036-1AM20-0UA0

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 130 mm

Dim: (W x H x D) 55 x 114 x 130 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 22 kW

: 3

: 1

: 1

: 51 A

: 70 A

: Screw connection

: AC

: 41 A

: 18.38746875

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1701786 Siemens 3RT2036-1AM20-0UA0 Contactor 3 makers 690 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1701786 Siemens 3RT2036-1AM20-0UA0 Contactor 3 makers 690 V AC 1 pc(s)

Description

22MM METAL ROUND ACTUATOR: CES KEY-OPER.SWITCH WITH 2 KEYS LEFT LATCH.,RI.MOMEN.CONT.TYPE 3 SWITCH POSITIONS I-O-II LOCK NO SSG 10, REM. POS. O+I WITH HOLDER !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is 3SU1050-5BN51-0AA0 +
