Siemens 3RT2038-3KB44-3MA0 Coupling relay 3 makers 690 V AC + varistor Compatible with (relay brand): Siemens Piece 1 pc
EAN:
Part number:
Item no:
Product type
Coupling relay
No. of pins
3-pin
Nominal voltage
690 V AC
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Number
Total (€ 491.60 / piece)
€ 491.60
plus VAT.
14-day return policy included
Technical specifications
- Type of voltage: DC
- Conductor cross-section single or multi-strand: 50 mm²
- Conductor cross-section for finely-stranded: 35mm²
- Packaging type
Piece
- Product type
Coupling relay
- Type
3RT2038-3KB44-3MA0
- Type
S2
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
80 A
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Features
+ varistor
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

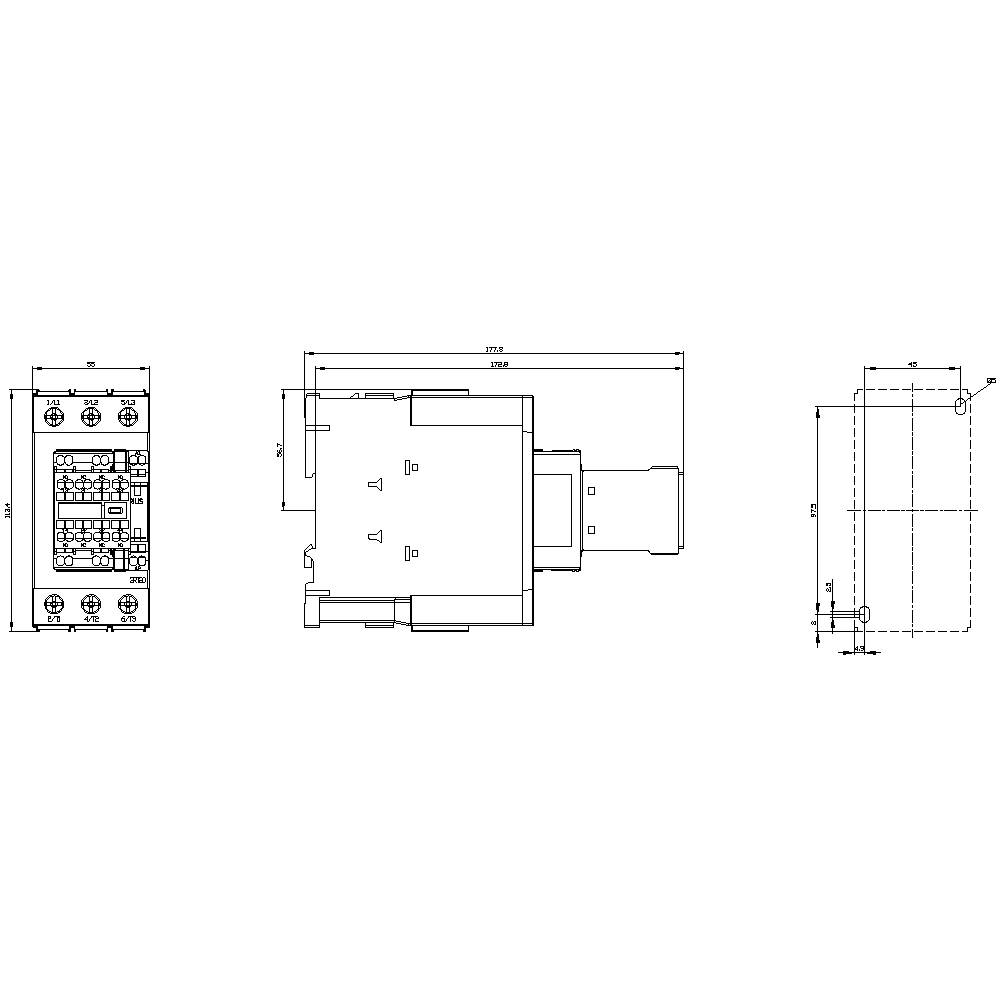

- Width
55 mm
- Height
114 mm
- Depth
178 mm
- Dim
(W x H x D) 55 x 114 x 178 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
37 kW
3
2
2
80 A
90 A
Screw connection
DC
55 A
36.7749375
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1746472 Siemens 3RT2038-3KB44-3MA0 Coupling relay 3 makers 690 V AC + varistor Compatible with (relay brand): Siemens Piece 1 pc
User & Safety Instructions
User & Safety Instructions 1746472 Siemens 3RT2038-3KB44-3MA0 Coupling relay 3 makers 690 V AC + varistor Compatible with (relay brand): Siemens Piece 1 pc
Description
Magnet coil for contactors SIRIUS, Size S3, screw terminal, 480 V AC, 60 Hz !!! Phased-out product !!! Successor is SIRIUS 3RT2
