Buy Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V

Siemens Sirius Industrial Contactor: three-pole construction, switch position 'I' for On. Suitable for control applications.

Image similar

'An electrical cabinet with an open door reveals wired electronic components, while industrial machinery can be seen through a rain-spattered window.'

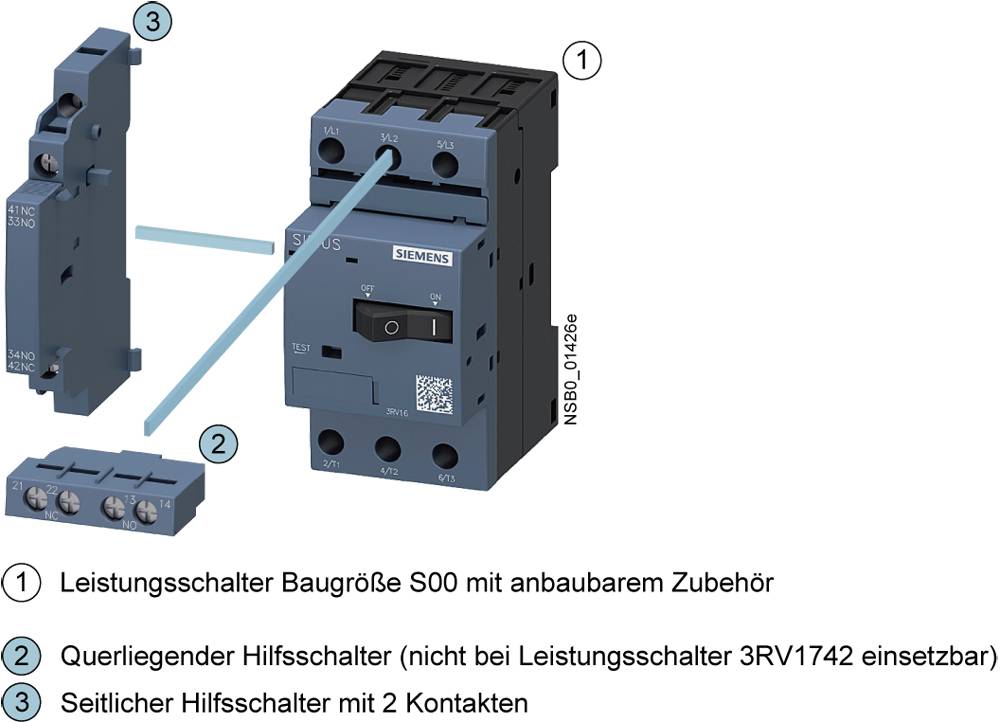

Circuit breaker with attached accessories: On the left, a changeover switch, on the right, a lateral switch, each with functional explanations.

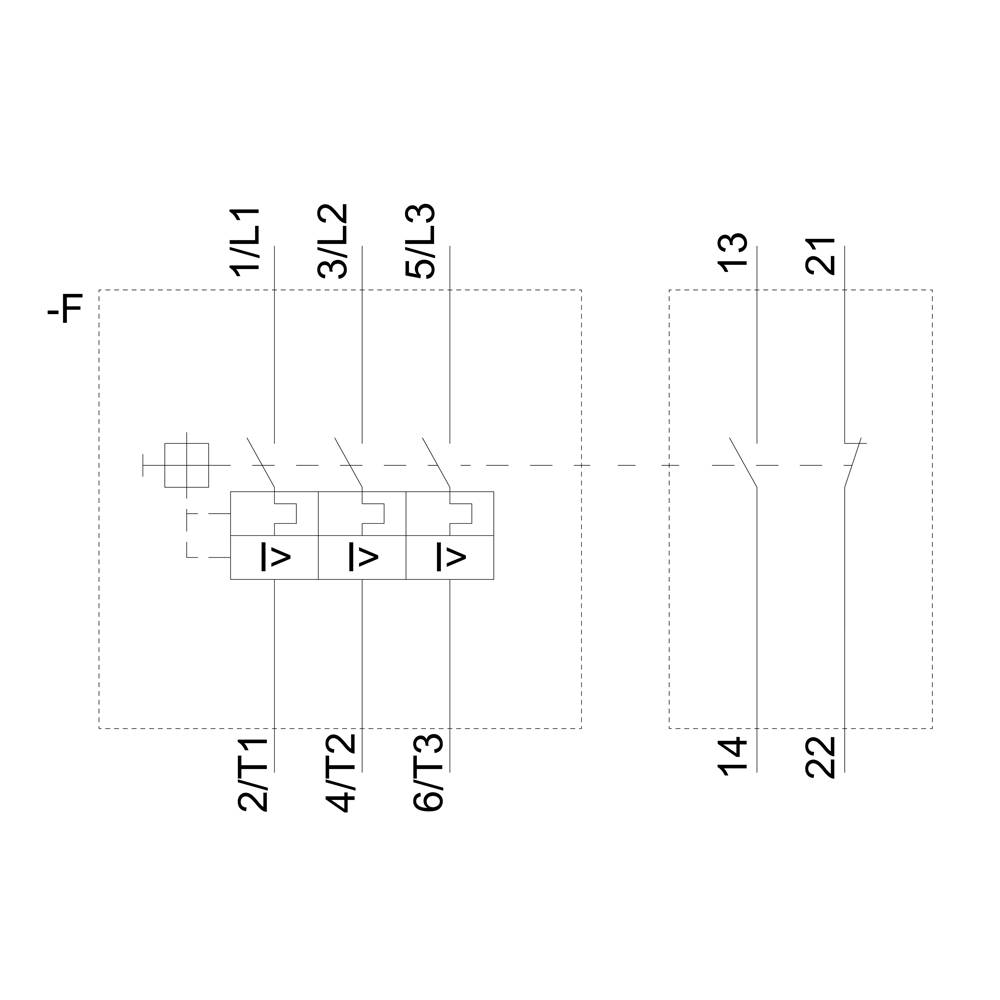

Circuit diagram with three fuses and connection lines. Labels: 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, 13, 21, 14, 22.

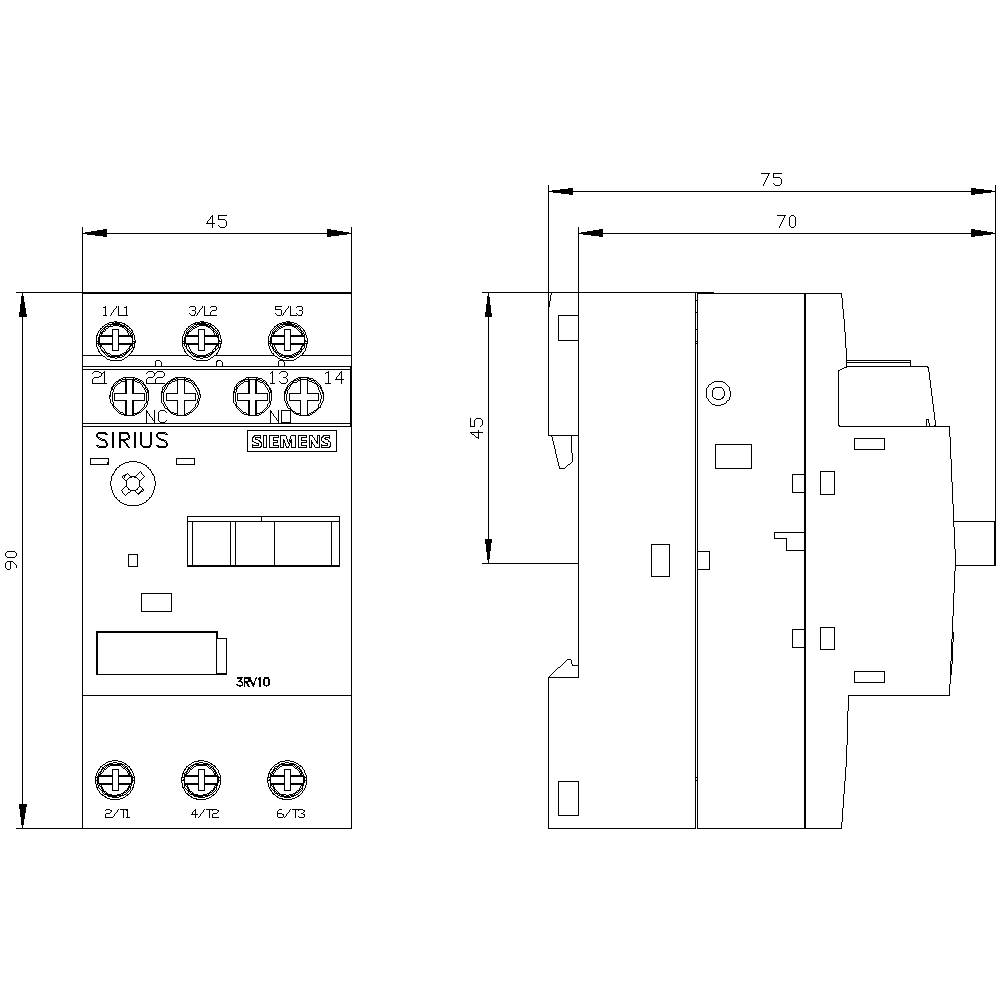

Technical drawing of an electrical switch with dimensions. Shows front and side view. Labelled 'SIRIUS'.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.25 A

Connection

Screws

Type

3RV1011-0CA15

Type

S00

Datasheet (PDF)

Dispatches on Tue, 29 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

MINIATURE POWER RELAY

Our service for you

Technical specifications

Continuous current: 0.25 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV1011-0CA15

Type: S00

Amperage adjustment range (min.): 0.18 A

Amperage adjustment range (max.): 0.25 A

Adjustment range (amperage): 0.18 - 0.25 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 75 mm

Width: 45 mm

Height: 90 mm

Dim: (W x H x D) 45 x 90 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 90 mm

: 75 mm

: 0.06 kW

: TRUE

: 0.25 A

: FALSE

: 3

: 690-690 V

: 0.18-0.25 A

: IP20

: TRUE

: Screw connection

: Rocker lever

: Magnetic

: 0 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745453

This article

0.25 A

0.18 A

Siemens 3RV1011-0JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1702444

1 A

0.7 A

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745448

0.16 A

0.11 A

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

0.16 A

0.11 A

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745450

0.2 A

0.14 A

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

0.2 A

0.14 A

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745454

0.32 A

0.22 A

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745455

0.4 A

0.28 A

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745456

0.5 A

0.35 A

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745457

0.63 A

0.45 A

Documents & Downloads

Datasheet

Datasheet 1745453 Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V

User & Safety Instructions

User & Safety Instructions 1745453 Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V

Description

Miniature contactor, screw terminal, 2 NO + 2 NC Snap-on mounting standard mounting rail 42 V AC 50 Hz/50 V AC 60 Hz AC operation
