Buy Siemens 3RV1011-1CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V A

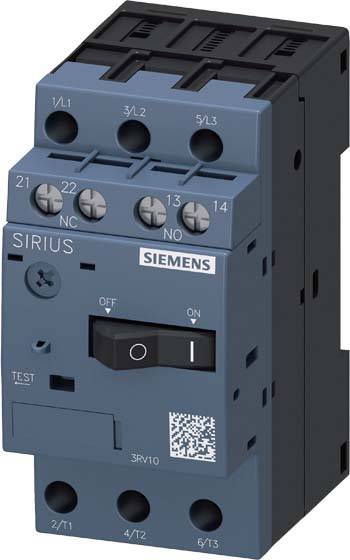

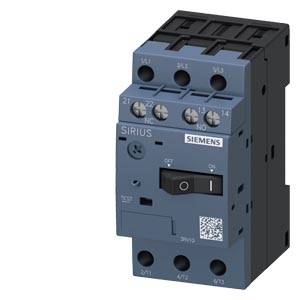

A blue electric contactor by Siemens, Sirius model, with multiple connections and an on/off switch.

Image similar

An open electrical cabinet with electrical components next to a window with raindrops visible. Blurred machinery in the background.

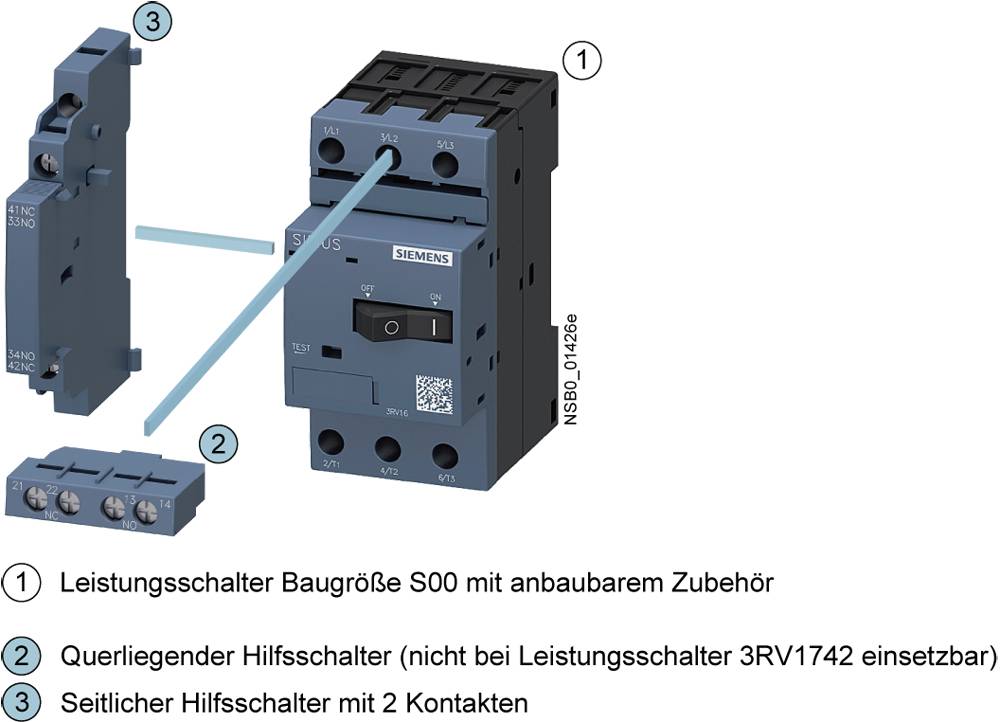

'Miniature circuit breaker Size S00 with attachable accessories.' Describes a circuit breaker and two types of auxiliary switches.

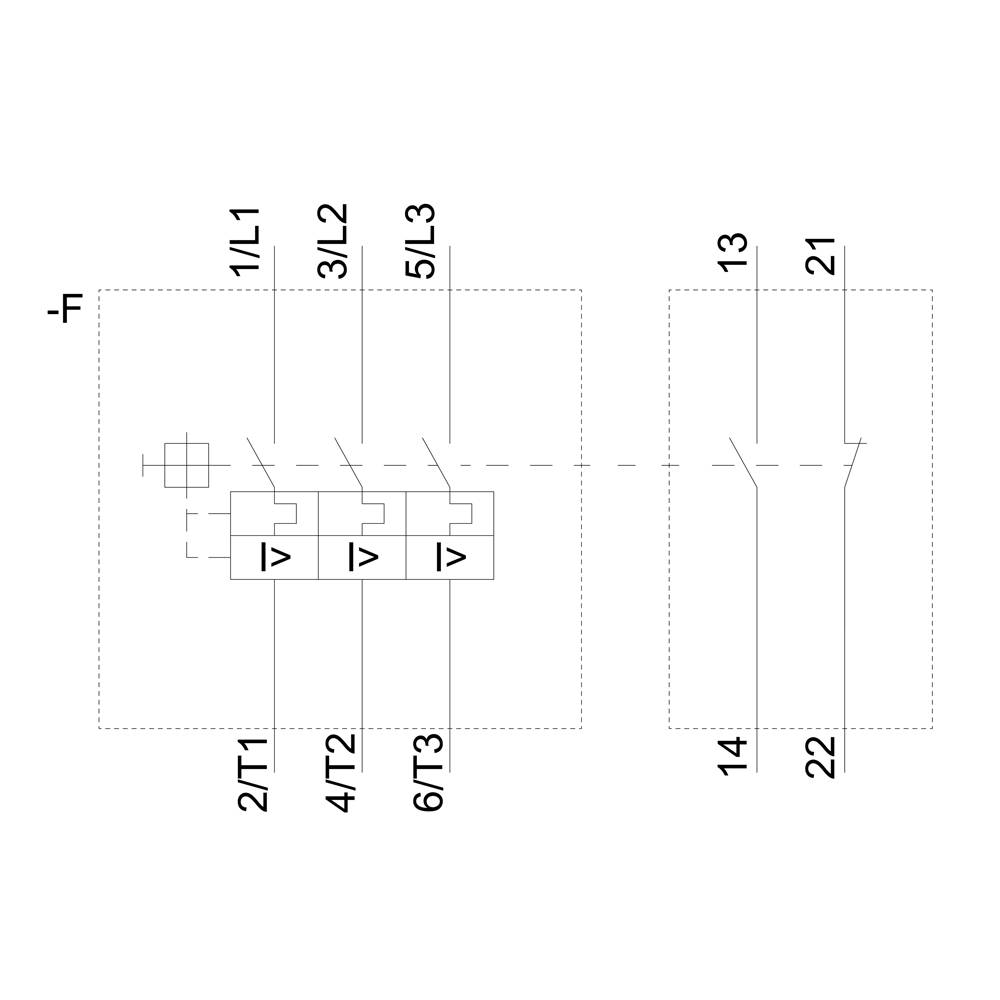

Circuit diagram of a power switch with three contacts connected via triangles with voltage components (L1, L2, L3)

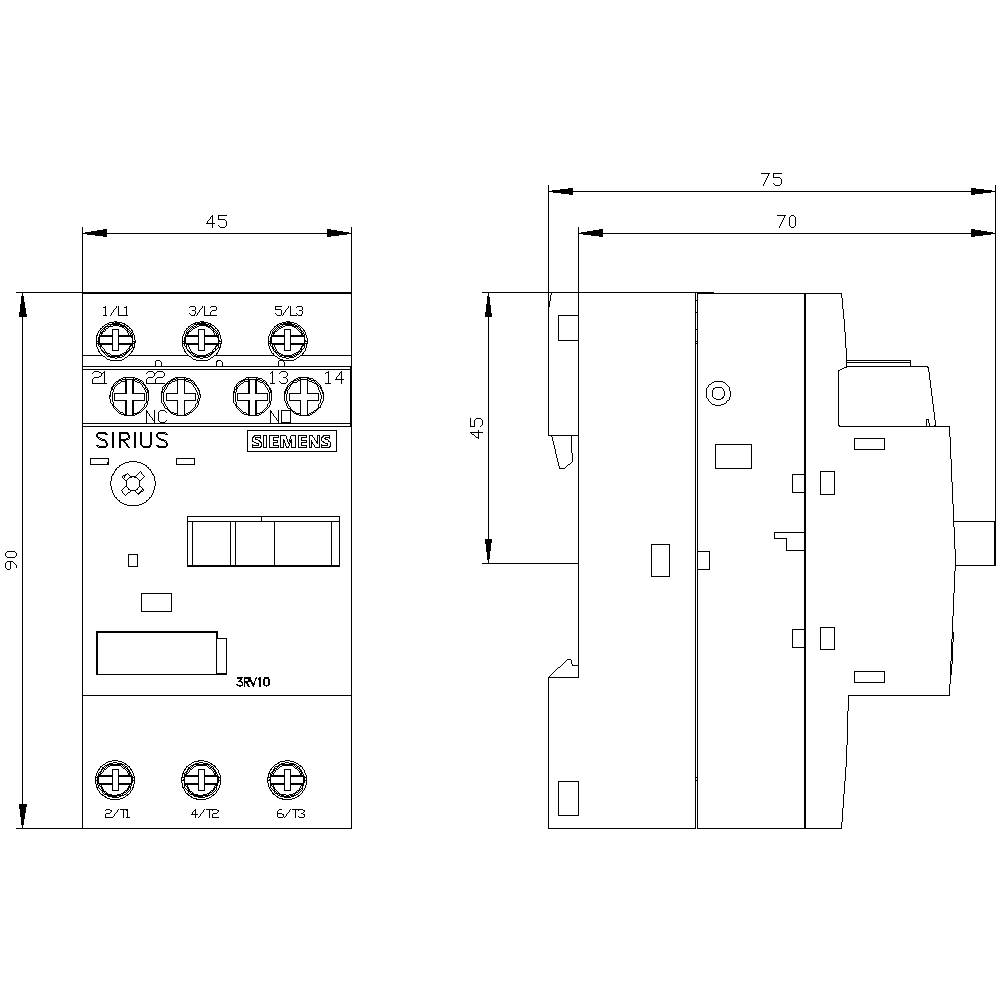

Technical drawing of a Siemens SIRIUS switching device with dimensions: 45 mm width, 90 mm height. Side view: 75 mm depth.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

2.5 A

Connection

Screws

Type

3RV1011-1CA15

Type

S00

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 2.5 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV1011-1CA15

Type: S00

Amperage adjustment range (min.): 1.8 A

Amperage adjustment range (max.): 2.5 A

Adjustment range (amperage): 1.8 - 2.5 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 75 mm

Width: 45 mm

Height: 90 mm

Dim: (W x H x D) 45 x 90 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 90 mm

: 75 mm

: 0.75 kW

: TRUE

: 2.5 A

: FALSE

: 3

: 690-690 V

: 1.8-2.5 A

: IP20

: TRUE

: Screw connection

: Rocker lever

: Magnetic

: 0.4 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-1CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745462

This article

2.5 A

1.8 A

Siemens 3RV1011-0JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1702444

1 A

0.7 A

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745448

0.16 A

0.11 A

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

0.16 A

0.11 A

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745450

0.2 A

0.14 A

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

0.2 A

0.14 A

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745453

0.25 A

0.18 A

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745454

0.32 A

0.22 A

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745455

0.4 A

0.28 A

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745456

0.5 A

0.35 A

Documents & Downloads

Datasheet

Datasheet 1745462 Siemens 3RV1011-1CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V A

User & Safety Instructions

User & Safety Instructions 1745462 Siemens 3RV1011-1CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V A

Description

Circuit breaker size S00 for motor protection CLASS 10 A-release 4.5...6.3 A Short-circuit release 82 A Spring-type terminal Standard switching capacity !!! Phased-out product !!! Successor is SIRIUS 3RV2 Preferred successor type is 3RV2011-1GA20
