Buy Siemens 3RV2011-1AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.1 - 1.6 A Switching voltage (max.): 690 V A

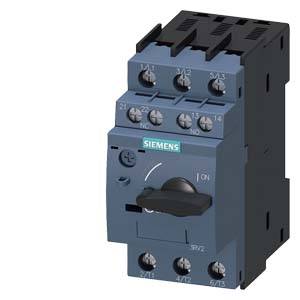

A black Siemens power switch with a toggle switch and multiple electrical contacts. Specialist component for electrical installations.

Image similar

An open electrical cabinet with electronic components on the left. On the right, a wet disc through which machines can be seen blurrily.

'Degradable Accessories': Diagram showing various electrical components and their connections. Numbered parts with descriptions.

The circuit diagram shows a three-phase power supply (L1, L2, L3), protective switches and subsequent fuses, as well as load connections.

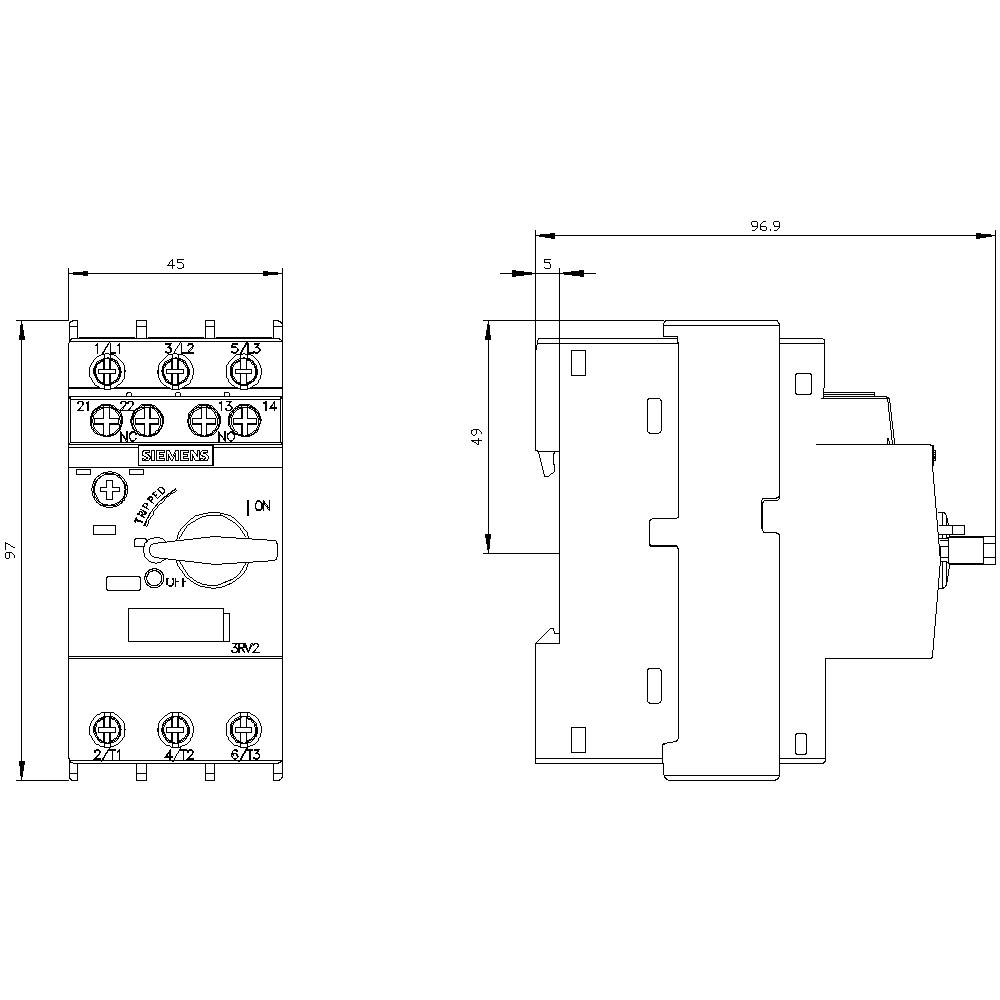

Technical drawing of an electronic device with dimensions: Front view shows switches and connections, side view shows depth.

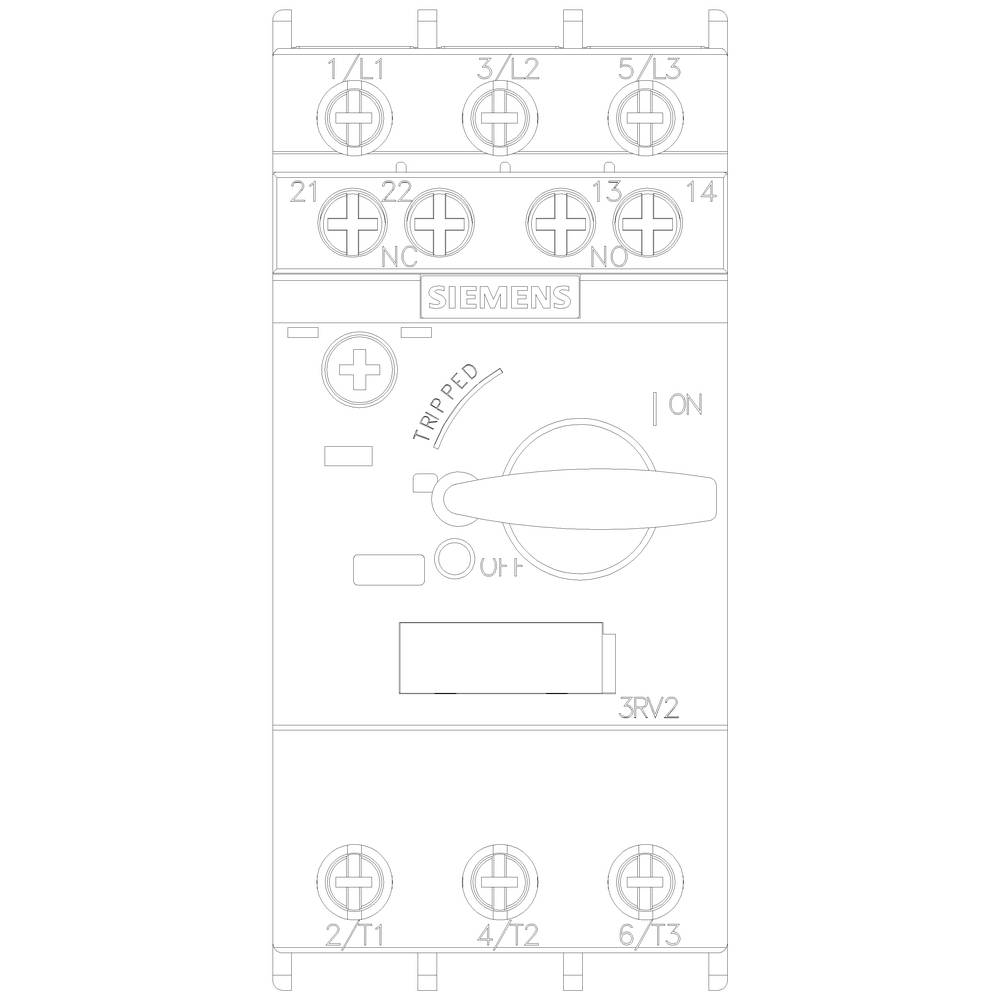

Circuit diagram of a Siemens contactor switch with rotary switch in 'ON' position. Indicators for 'TRIPPED'. Connections at top and bottom.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

1.6 A

Connection

Screws

Type

3RV2011-1AA15

Type

S00

Datasheet (PDF)

Fast track dispatch on Wed, 8 Jul

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 82.34 / piece)

€ 82.34

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Technical specifications

Continuous current: 1.6 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-1AA15

Type: S00

Amperage adjustment range (min.): 1.1 A

Amperage adjustment range (max.): 1.6 A

Adjustment range (amperage): 1.1 - 1.6 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 97 mm

: 97 mm

: 0.55 kW

: TRUE

: 1.6 A

: FALSE

: 3

: 690-690 V

: 1.1-1.6 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 0.3 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
