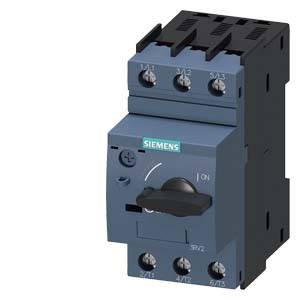

Siemens 3RV2011-1JA10-0BA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
10 A
Connection
Screws
Type
3RV2011-1JA10-0BA0
Type
S00
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Continuous current: 10 A
- Mechanical life of main contacts: 500 switching cycles
- Max. Conductor cross-section (solid or stranded): 4 mm²
- Max. Conductor cross-section (fine): 2.5 mm²
- Product type
Circuit breaker
- Type
3RV2011-1JA10-0BA0
- Type
S00
- Amperage adjustment range (min.)
7 A
- Amperage adjustment range (max.)
10 A
- Adjustment range (amperage)
7 - 10 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Snap-in
Screw-fit
- Min. temperature
-50 °C
- Max. temperature
+60 °C
- Features
+ auxiliary contact
- Connection
Screws
IP20
- Depth
97 mm
- Width
45 mm
- Height
97 mm
- Dim
(W x H x D) 45 x 97 x 97 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
45
97 mm
97 mm
4 kW
10 A
3
IP20
Screw connection
Turn button
Magnetic
2.2 kW
100 kA
Built-in device fixed built-in technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1741923 Siemens 3RV2011-1JA10-0BA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V
User & Safety Instructions
User & Safety Instructions 1741923 Siemens 3RV2011-1JA10-0BA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V
Description
Traction contactor, AC-3 115 A, 55 kW / 400 V 1 NO + 1 NC, 110 V DC 0.7-1.25*Us 3-pole, 3 NO, Size S3 integrated varistor screw terminals
