Buy Siemens 3RV2021-1CA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V A

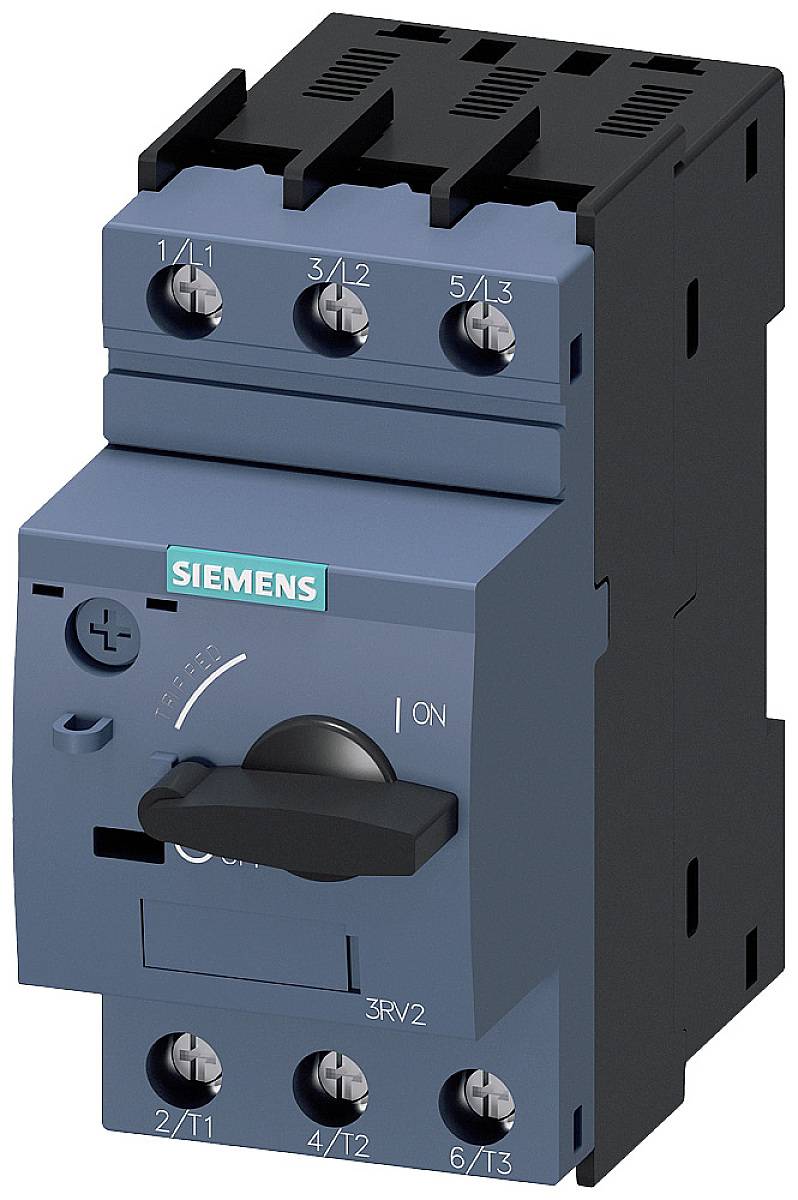

Siemens motor starter with toggle switch, blue housing, six screw terminals top and bottom.

Image similar

A control cabinet with open doors reveals electronic components; behind it, rain is falling heavily on a glass wall through which machines are visible.

'Diagram shows the connection diagram for power circuit breaker accessories. Includes auxiliary switches (7, 8), voltage connections (6), signalling contacts (3), disconnectors (1, 2) and terminal blocks (5).'

Circuit diagram of a three-pole load-break switch with three fuses. Labels: 1/L1, 3/L2, 5/L3 (top) and 2/T1, 4/T2, 6/T3 (bottom).

Drawing of an electrical switch with frontal and side view, dimensions: 45 mm width frontally, 96.9 mm from the side. Switch in 'ON' position.

'Contactor in neutral drawing, for controlling electrical circuits. Connections at top and bottom, with rotary switch in the centre.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

2.5 A

Connection

Screws

Type

3RV2021-1CA10

Type

Datasheet (PDF)

Dispatches on Mon, 21 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 80.66 / piece)

€ 80.66

plus VAT.

Report legal concerns

Technical specifications

Continuous current: 2.5 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 10 mm²

Product type: Circuit breaker

Type: 3RV2021-1CA10

Type: S0

Amperage adjustment range (min.): 1.8 A

Amperage adjustment range (max.): 2.5 A

Adjustment range (amperage): 1.8 - 2.5 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 97 mm

: 97 mm

: 0.8 kW

: FALSE

: 2.5 A

: FALSE

: 3

: 690-690 V

: 1.8-2.5 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 0.4 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV2021-0GA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1702216

0.63 A

0.45 A

Siemens 3RV2021-0JA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1702217

1 A

0.7 A

Siemens 3RV2021-0JA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1702272

1 A

0.7 A

Siemens 3RV2021-0GA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741961

0.63 A

0.45 A

Siemens 3RV2021-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741962

0.63 A

0.45 A

Siemens 3RV2021-0GA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1741963

0.63 A

0.45 A

Siemens 3RV2021-0HA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741964

0.8 A

0.55 A

Siemens 3RV2021-0HA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741965

0.8 A

0.55 A

Siemens 3RV2021-0HA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1741966

0.8 A

0.55 A

Siemens 3RV2021-0HA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1741982

0.8 A

0.55 A

Documents & Downloads

Datasheet

Datasheet 1742407 Siemens 3RV2021-1CA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V A

User & Safety Instructions

User & Safety Instructions 1742407 Siemens 3RV2021-1CA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V A

Description

Power contactor, AC-3 115 A, 55 kW / 400 V 1 NO + 1 NC, 24 V AC, 50 Hz 3-pole, 3 NO, Size S3 screw terminals
