Buy Siemens 3RV2021-4AA10-0DA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 10 - 16 A Switching voltage (max.): 690

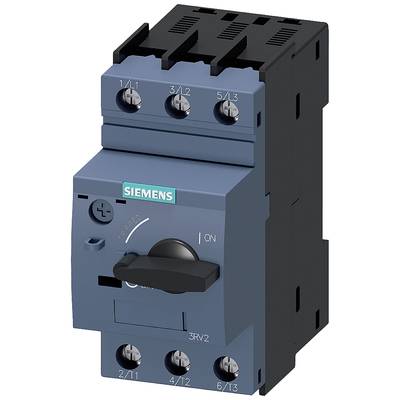

A blue Siemens electrical circuit breaker with switching button and connection terminals.

Image similar

Electrical control cabinet and industrial machinery visible through a damp window, operating in a factory setting.

'Diagram shows accessories for circuit breakers: Transverse auxiliary switch, undervoltage release, indicator, isolating bars and terminal blocks.'

Circuit diagram shows a three-phase contactor with phases L1, L2, and L3, and outputs T1, T2, and T3, connected via terminals.

Drawing of a switch with dimensions: width 45 mm, depth 96.9 mm, height 97 mm. Shows front and side view with circuit board terminals.

Switching device for controlling electrical circuits with rotary knob and indicators. Connections at the top and bottom, marked with numbers.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

16 A

Connection

Screws

Type

3RV2021-4AA10-0DA0

Type

Datasheet (PDF)

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 138.65 / piece)

€

Report legal concerns

Technical specifications

Design: for motor protection
Weight: 0,355 kg
Design of the thread of the connection screw: M4
Mechanical life: 100000
Electrical life: 100000
Power loss: 7 W
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3RV2021-4AA10-0DA0

Type: S0

Amperage adjustment range (min.): 10 A

Amperage adjustment range (max.): 16 A

Adjustment range (amperage): 10 - 16 A

Current load: 16 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 16 A

: 3

: 10-16 A

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Screw connection

: Toggle

: FALSE

: 55 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV2021-0GA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1702216

0.63 A

0.45 A

Siemens 3RV2021-0JA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1702217

1 A

0.7 A

Siemens 3RV2021-0JA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1702272

1 A

0.7 A

Siemens 3RV2021-0GA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741961

0.63 A

0.45 A

Siemens 3RV2021-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741962

0.63 A

0.45 A

Siemens 3RV2021-0GA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1741963

0.63 A

0.45 A

Siemens 3RV2021-0HA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741964

0.8 A

0.55 A

Siemens 3RV2021-0HA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741965

0.8 A

0.55 A

Siemens 3RV2021-0HA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1741966

0.8 A

0.55 A

Siemens 3RV2021-0HA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1741982

0.8 A

0.55 A

Documents & Downloads

Datasheet

Datasheet 1704556 Siemens 3RV2021-4AA10-0DA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 10 - 16 A Switching voltage (max.): 690

User & Safety Instructions

User & Safety Instructions 1704556 Siemens 3RV2021-4AA10-0DA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 10 - 16 A Switching voltage (max.): 690

Description

Contactor, AC-3, 55 kW/400 V 2 NO+2 NC, 110 V AC/50 Hz 120 V/60 Hz 3-pole, 3 NO, Size S3 Screw terminal Captive auxiliary switch
