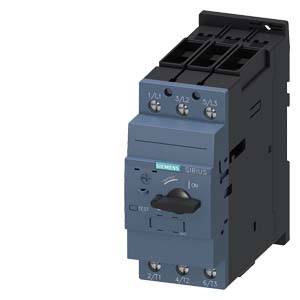

Buy Siemens 3RV2031-4EA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 22 - 32 A Switching voltage (max.): 690 V AC

'Siemens SIRIUS contactor, model number 3RT2026-1BB40, for controlling electrical loads in industrial applications.'

Image similar

An open electrical cabinet with visible cables and circuit boards stands next to a large machine, visible through a rain-streaked window.

Assembly Instructions for Electrical Switch Components: Numbered Components and Their Connection for Assembling a Switch.

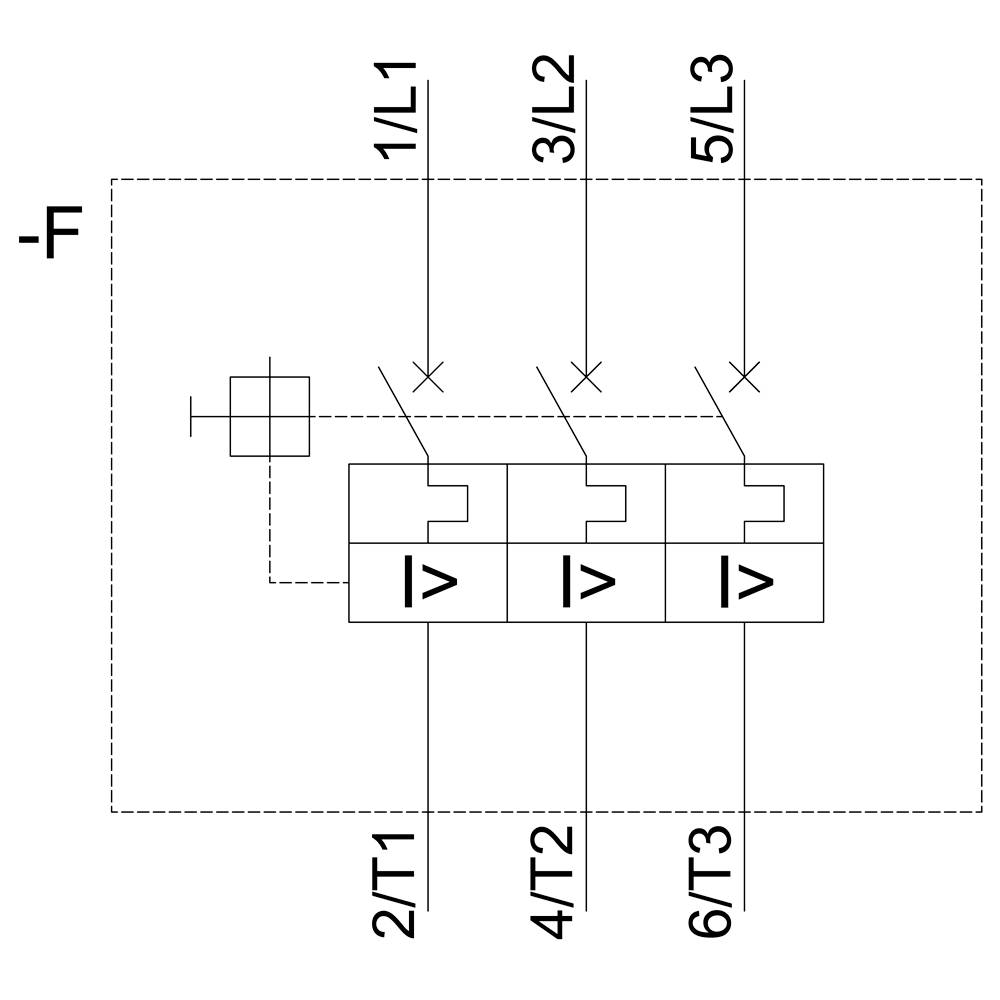

Switching symbol for a three-phase fuse representing phases 1/L1, 2/T1, 3/L2, 4/T2, 5/L3 and 6/T3.

Technical drawing of an electrical switch with front, side, and top view. Dimensions and connections are shown in detail.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

32 A

Connection

Screws

Type

3RV2031-4EA10

Type

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 210.08 / piece)

€ 210.08

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Technical specifications

Continuous current: 32 A
Mechanical life of main contacts: 50000 switching cycles
Max. Conductor cross-section (solid or stranded): 35mm²
Max. Conductor cross-section (fine): 25 mm²

Product type: Circuit breaker

Type: 3RV2031-4EA10

Type: S2

Amperage adjustment range (min.): 22 A

Amperage adjustment range (max.): 32 A

Adjustment range (amperage): 22 - 32 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 149 mm

Width: 55 mm

Height: 140 mm

Dim: (W x H x D) 55 x 140 x 149 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 55

: 140 mm

: 149 mm

: 15 kW

: FALSE

: 32 A

: FALSE

: 3

: 690-690 V

: 22-32 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 7.5 kW

: 65 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Product type

Amperage adjustment range (min.)

Siemens 3RV2031-4EA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 22 - 32 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1746151

This article

32 A

Circuit breaker

22 A

Siemens 3RV2031-4JA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 54 - 65 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1430975

65 A

Circuit breaker

54 A

Siemens 3RV2031-4KA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 62 - 73 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1431045

73 A

Circuit breaker

62 A

Siemens 3RV2031-4JA10-0BA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 54 - 65 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1683707

65 A

Circuit breaker

54 A

Siemens 3RV2031-4BB15 Circuit breaker 1 pc(s) Adjustment range (amperage): 14 - 20 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1699183

20 A

Circuit breaker

14 A

Siemens 3RV2031-4JB15 Circuit breaker 1 pc(s) Adjustment range (amperage): 54 - 65 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1699184

65 A

Circuit breaker

54 A

Siemens 3RV2031-4DA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1704589

25 A

18 A

Siemens 3RV2031-4EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 22 - 32 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1704590

32 A

Circuit breaker

22 A

Siemens 3RV2031-4JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 54 - 65 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1704591

65 A

Circuit breaker

54 A

Siemens 3RV2031-4EA15-0BA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 22 - 32 A Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm

Item no:1720800

32 A

Circuit breaker

22 A

Documents & Downloads

Datasheet

Datasheet 1746151 Siemens 3RV2031-4EA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 22 - 32 A Switching voltage (max.): 690 V AC

User & Safety Instructions

User & Safety Instructions 1746151 Siemens 3RV2031-4EA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 22 - 32 A Switching voltage (max.): 690 V AC

Description

Capacitor contactor, AC-6b 75 kVAr, / 400 V 2 NC, 50-60 Hz AC / 175-280 V DC 3-pole, Size S3 screw terminal
