Buy Siemens 3RV2041-4YA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 75 - 93 A Switching voltage (max.): 690 V AC

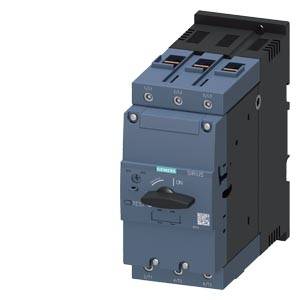

'Illustration of a Siemens circuit breaker with three connection terminals, used for interrupting electrical circuits in industrial applications.'

Image similar

Insight into an electrical cabinet with wiring and electronic components. In the background, a rain-streaked window, with blurred machinery outside.

'Circuit diagram for mounting accessories of circuit breakers, types and applications described. Components are numbered and interconnected.'

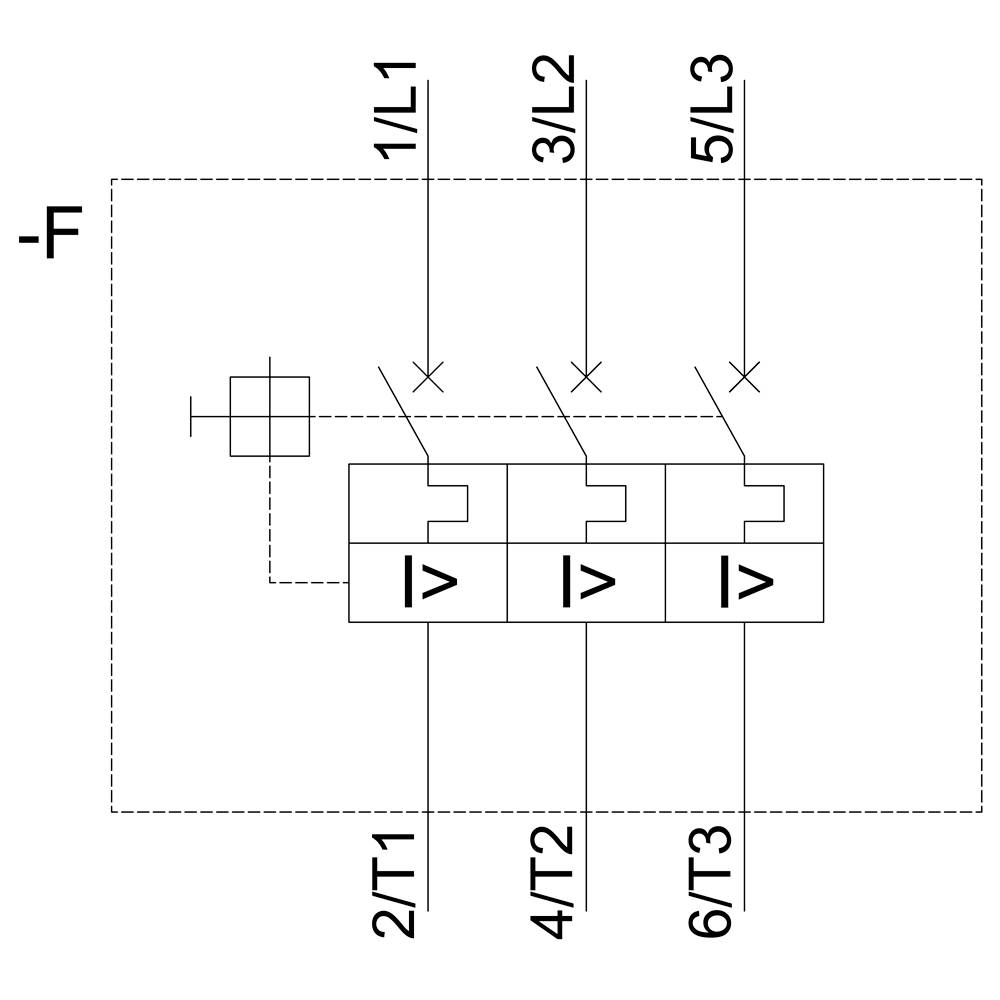

Circuit diagram of a three-phase arrangement with three power switches, marked with 1/L1, 3/L2, 5/L3 and their corresponding terminal connections.

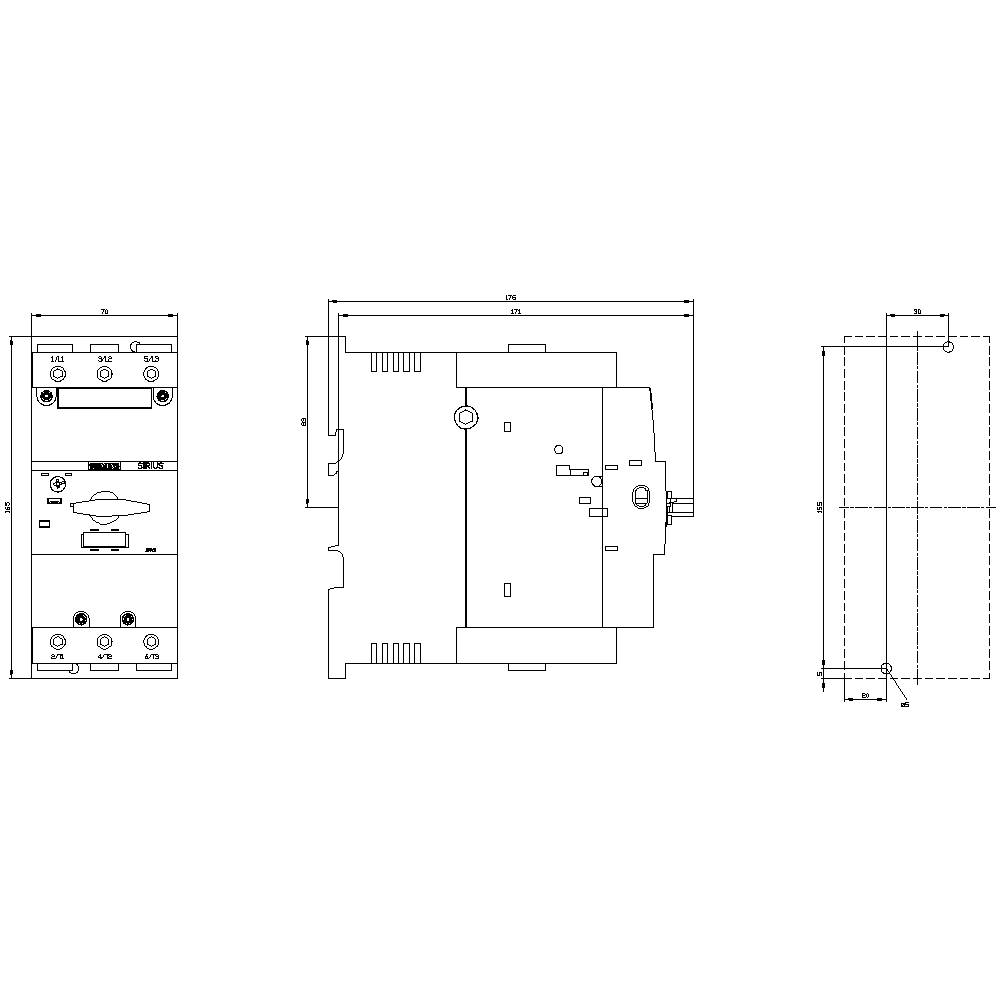

Technical drawing of an electronic device, showing front, side, and top views with dimensions and component details.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

93 A

Connection

Screws

Type

3RV2041-4YA10

Type

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 399.16 / piece)

€ 399.16

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

MCCB_UL_FS250_250A_3P_150KA_ETU3_LI

Our service for you

Technical specifications

Continuous current: 93 A
Mechanical life of main contacts: 25000 switching cycles
Max. Conductor cross-section (fine): 50 mm²

Product type: Circuit breaker

Type: 3RV2041-4YA10

Type: S3

Amperage adjustment range (min.): 75 A

Amperage adjustment range (max.): 93 A

Adjustment range (amperage): 75 - 93 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 176 mm

Width: 70 mm

Height: 165 mm

Dim: (W x H x D) 70 x 165 x 176 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 70

: 165 mm

: 176 mm

: 45 kW

: FALSE

: 93 A

: FALSE

: 3

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 22 kW

: 65 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1746902 Siemens 3RV2041-4YA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 75 - 93 A Switching voltage (max.): 690 V AC

User & Safety Instructions

User & Safety Instructions 1746902 Siemens 3RV2041-4YA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 75 - 93 A Switching voltage (max.): 690 V AC

Description

circuit breaker 3VA6 UL frame 250 breaking capacity class L 150kA @ 480V 3-pole, line protection ETU320, li, In=250A overload protection ir=100A ...250A short circuit protection iI=1,5...10 x In w/o connection 3VA6 molded-case circuit breaker with 3-series ETU for system protection, UL approval. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA UL molded-case circuit breakers from Siemens provide effective plant and starter protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA UL sets new standards in terms of flexibility and the variety of modular accessories available. The 3VA UL molded-case circuit breakers also offer the perfect conditions for machine and switchgear manufacturers who export worldwide. Alongside the IEC standard, both the 3VA5 and 3VA6 range also meet the UL standard. All functions can therefore be implemented and used for systems worldwide. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as version for plant protection. 3. Available as 3-pole and 4-pole version. 4. Depending on the size: Rated current 16 A to 600 A. 5. Four breaking capacity classes from 35 kA to 150 kA at 480 V. 7. The series has a solid-state overcurrent trip unit. 8. Can be installed fixed, in plug-in design or as withdrawable version. 8. Modular and easy-to-fit internal accessories with wide range of functions. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
