Buy Siemens 3RV2142-4FA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 28 - 40 A Switching voltage (max.): 690 V AC

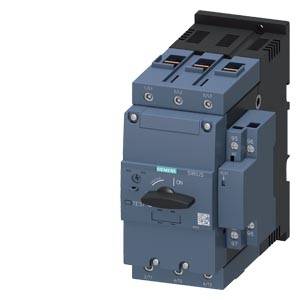

A three-pole circuit breaker for controlling and protecting electrical systems, with a lever for switching on and off.

Image similar

An open electrical cabinet reveals electronic components. To the right, a rain-streaked glass pane is visible with a blurred background.

'Mountable Accessories' for switches in a diagram, shows cross-references and describes additional equipment and functions.

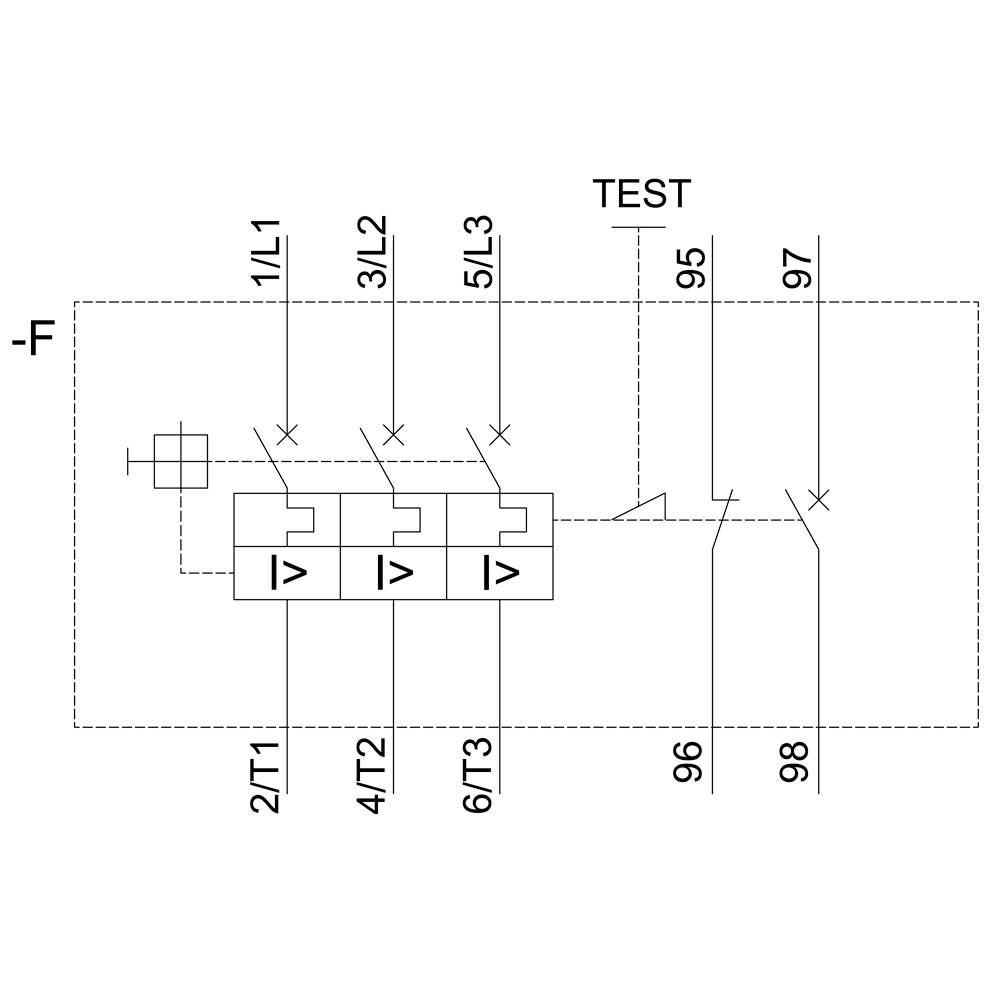

Circuit diagram of a three-phase protective relay, titled 'TEST'. Shows three switches labelled 1/L1, 3/L2, 5/L3 and test terminals 95, 96, 97.

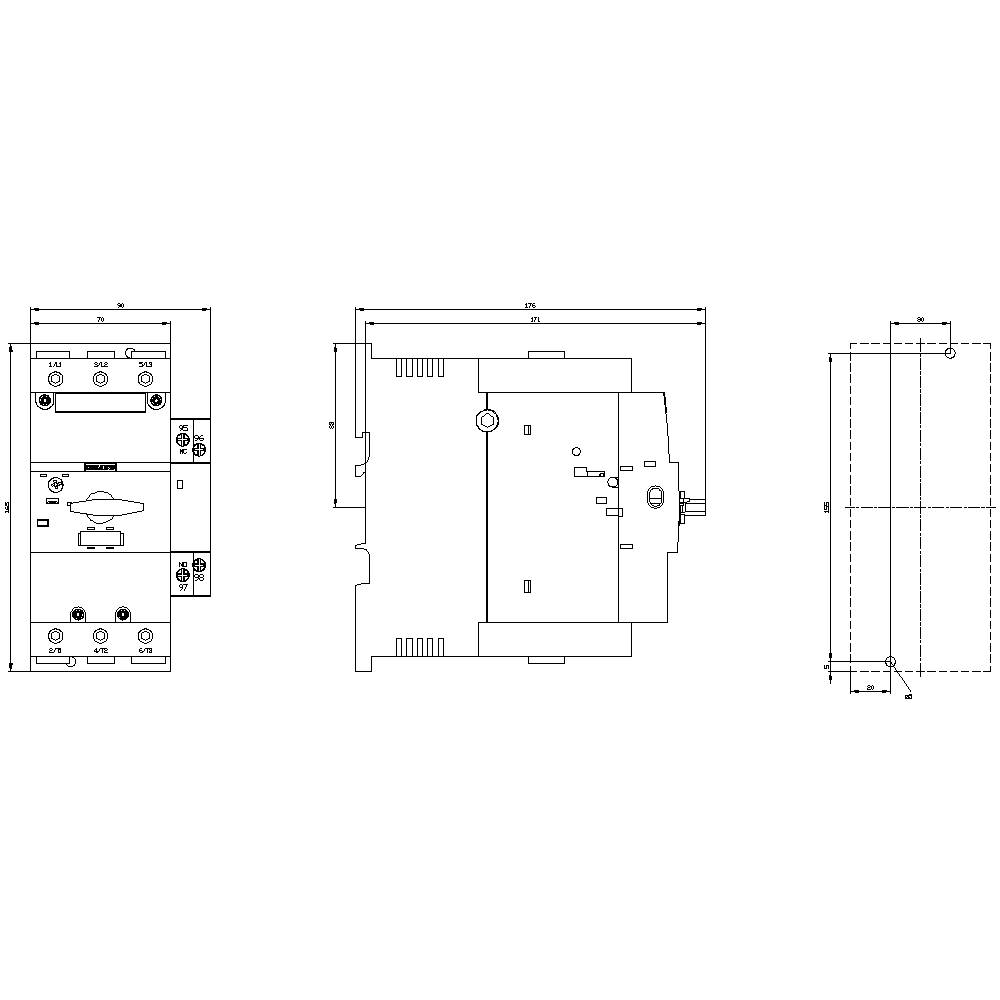

Technical drawing of an electrical switch with front, side, and top views. Markings for dimensions and connections are visible.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

40 A

Connection

Screws

Type

3RV2142-4FA10

Type

Datasheet (PDF)

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 542.02 / piece)

€ 542.02

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Continuous current 40 A
Mechanical life of main contacts: 25000 switching cycles
Max. Conductor cross-section (fine): 50 mm²

Product type: Circuit breaker

Type: 3RV2142-4FA10

Type: S3

Amperage adjustment range (min.): 28 A

Amperage adjustment range (max.): 40 A

Adjustment range (amperage): 28 - 40 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 176 mm

Width: 90 mm

Height: 165 mm

Dim: (W x H x D) 90 x 165 x 176 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 90

: 165 mm

: 176 mm

: 18.5 kW

: FALSE

: 40 A

: FALSE

: 3

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 11 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
