Buy Siemens 3RV2331-4VC10 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm Piece

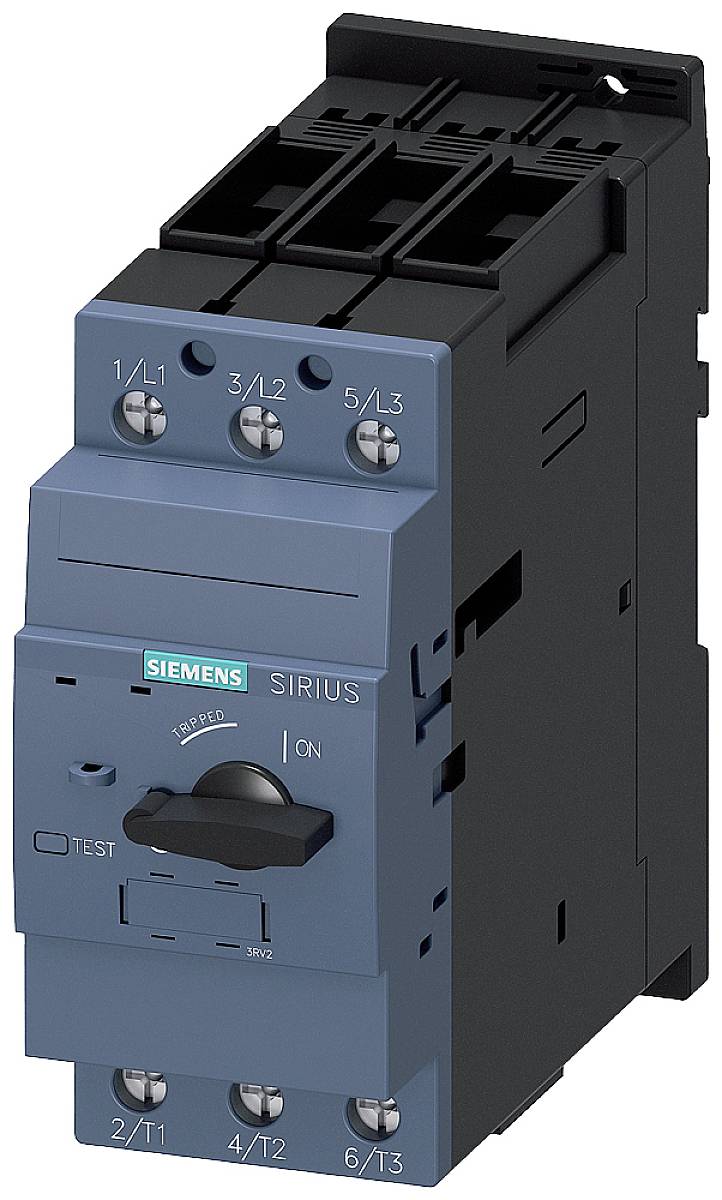

'Siemens Sirius' electrical power switch with a black housing and blue front panel. Switch, test button, and connection terminals visible.

Image similar

An open electrical cabinet reveals complex electronics beside a rain-soaked window, showing a blurred exterior area.

'Switchgear Accessory Diagram: Shows Various Components Such as Auxiliary Switches and Voltage Detectors with Connections.'

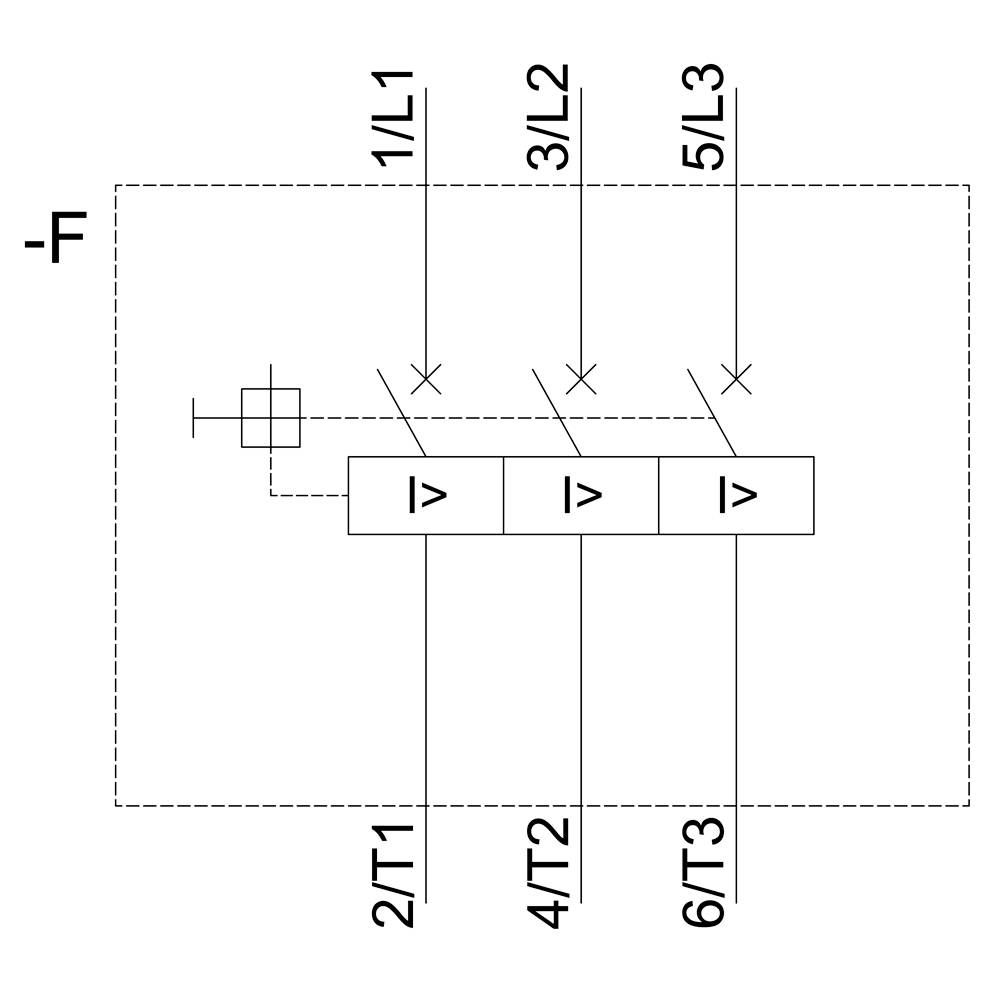

The diagram shows the circuit diagram of an electrical system with a transformer, three circuit breakers, and five connections.

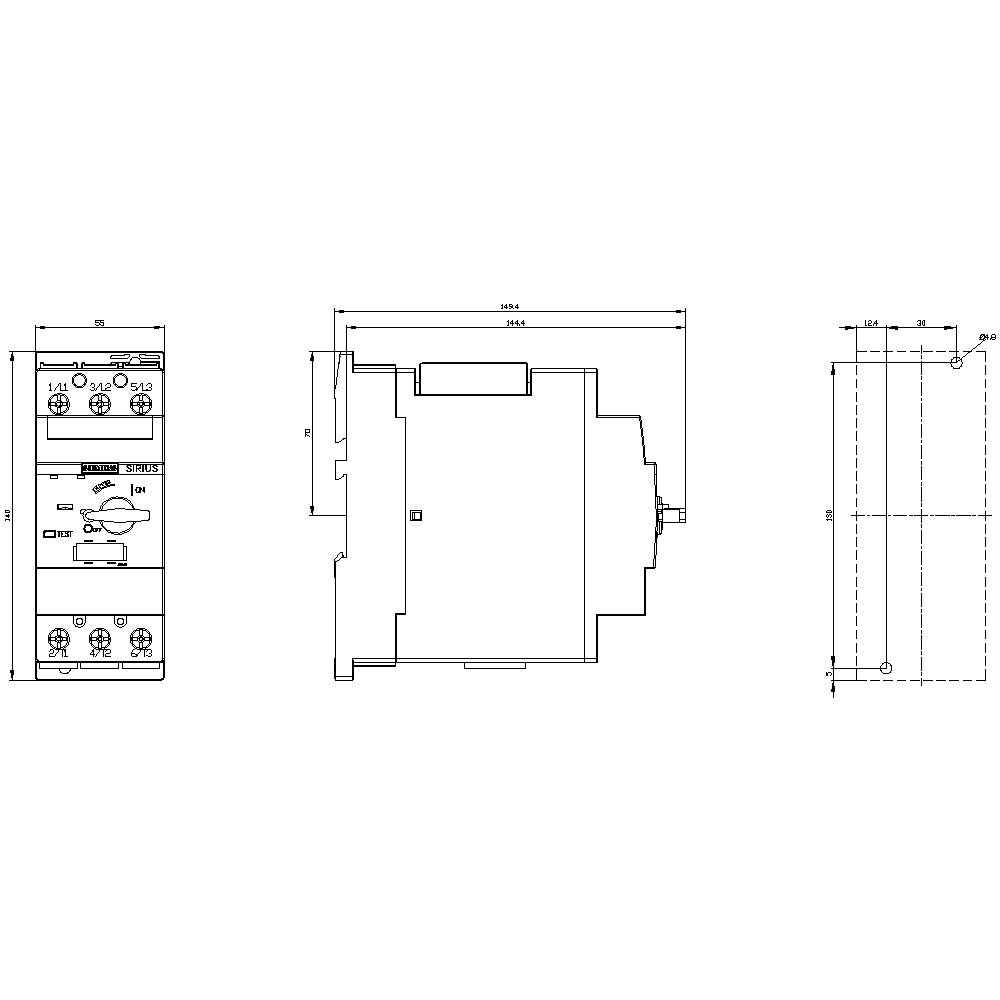

Technical drawings of an electrical device with front, side, and cross-section views. Dimensions and connections are shown in detail.

1/5

Image similar

Product type

Circuit breaker

Connection

Screws

Packaging type

Piece

Type

3RV2331-4VC10

Type

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 268.07 / piece)

€ 268.07

plus VAT.

Report legal concerns

Technical specifications

Continuous current: 45 A
Mechanical life of main contacts: 50000 switching cycles
Max. Conductor cross-section (solid or stranded): 35mm²
Max. Conductor cross-section (fine): 25 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2331-4VC10

Type: S2

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 149 mm

Width: 55 mm

Height: 140 mm

Dim: (W x H x D) 55 x 140 x 149 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 55

: 140 mm

: 149 mm

: 22 kW

: FALSE

: 45 A

: FALSE

: 3

: 690-690 V

: IP20

: FALSE

: Screw connection

: Turn button

: Magnetic

: 11 kW

: 65 kA

: FALSE

: Built-in device fixed built-in technique

UKCA: yes
