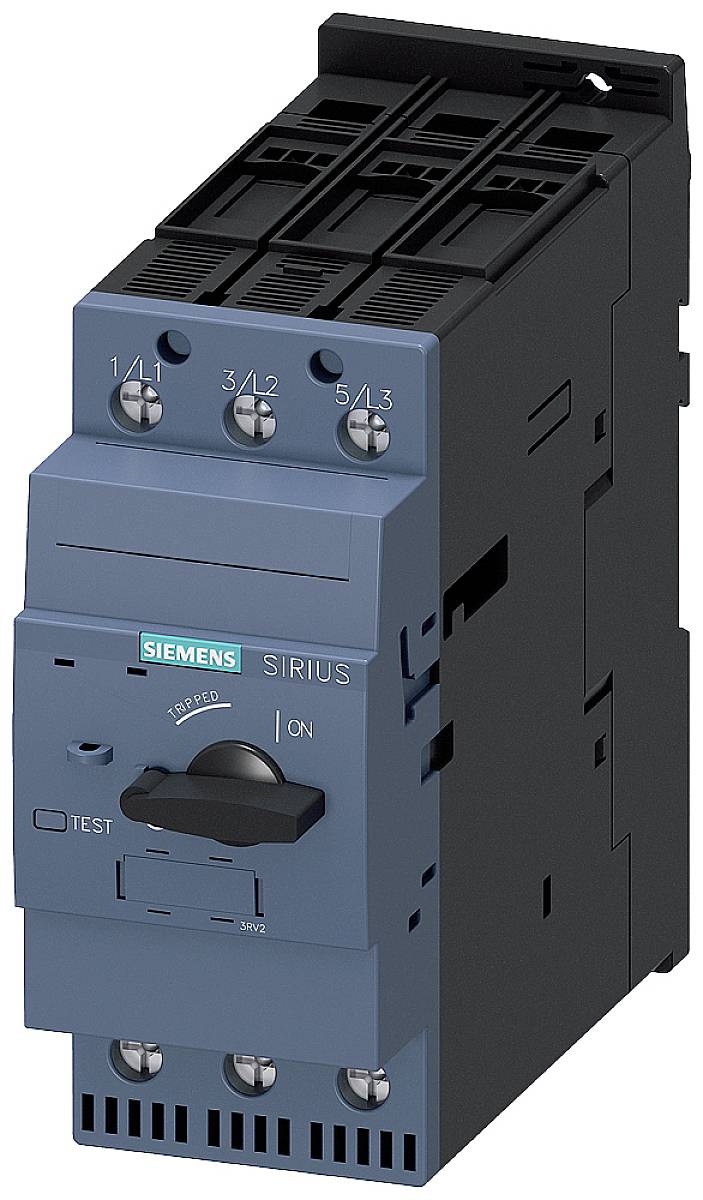

Siemens 3RV2332-4DC10 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm Piece
EAN:
Part number:
Item no:
Product type
Circuit breaker
Connection
Screws
Packaging type
Piece
Type
3RV2332-4DC10
Type
S2
Datasheet (PDF)
Number
Total (€ 284.87 / piece)
€ 284.87
plus VAT.
14-day return policy included
Technical specifications
- Continuous current: 25 A
- Mechanical life of main contacts: 50000 switching cycles
- Max. Conductor cross-section (solid or stranded): 50 mm²
- Max. Conductor cross-section (fine): 35mm²
- Packaging type
Piece
- Product type
Circuit breaker
- Type
3RV2332-4DC10
- Type
S2
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Compatible with series
Siemens Sirius series
- Compatible with
Siemens
- Mounting type
Snap-in
Screw-fit
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Features
+ auxiliary contact
- Connection
Screws
IP20
- Depth
149 mm
- Width
55 mm
- Height
140 mm
- Dim

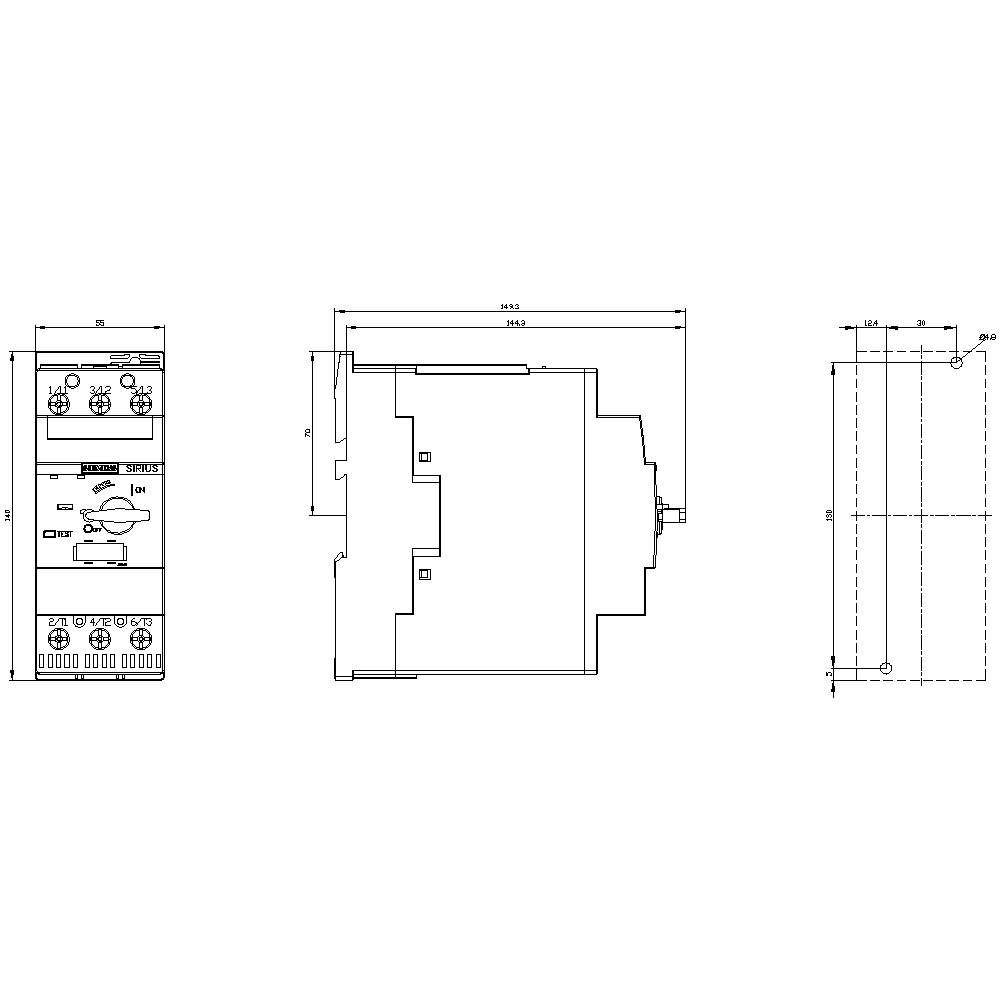

(W x H x D) 55 x 140 x 149 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
55
140 mm
149 mm
11 kW
FALSE
25 A
FALSE
3
IP20
FALSE
Screw connection
Turn button
Magnetic
5.5 kW
100 kA
FALSE
Built-in device fixed built-in technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1738898 Siemens 3RV2332-4DC10 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm Piece
User & Safety Instructions
User & Safety Instructions 1738898 Siemens 3RV2332-4DC10 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 55 x 140 x 149 mm Piece
Description
Circuit breaker size S2 for starter combination Rated current 25 A N-release 325 A screw terminal increased switching capacity
