Buy Siemens 3RV2411-1EA15 Circuit breaker 1 pc(s) 1 breaker, 1 maker Adjustment range (amperage): 4 A (max) Switching voltag

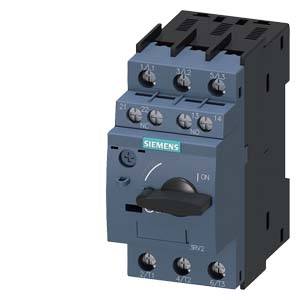

A Siemens electrical switch with multiple connection terminals, suitable for controlling electrical circuits.

Image similar

In the image, an open electrical cabinet with electronic components and cables can be seen. In the background, rain is falling on a window.

The image shows a diagram of electrical accessories and switches. It illustrates the arrangement and connection of various components and levers.

Circuit diagram shows a three-phase electrical circuit with three fuses (L1, L2, L3) and their branches leading to a switch (T1, T2, T3).

Diagram of an electrical switch with front and side view. Dimensions: 97 mm height, 96.9 mm width. Indicators for connections and rotary knob.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

4 A

Contact type

1 breaker

1 maker

Connection

Screws

Type

3RV2411-1EA15

Datasheet (PDF)

Dispatches on Tue, 29 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design: for transformer protection
Weight: 0,355 kg
Design of the thread of the connection screw: M3
Mechanical life: 100000
Electrical life: 100000
Power loss: 6 W
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3RV2411-1EA15

Type: S00

Amperage adjustment range (max.): 4 A

Adjustment range (amperage): 4 A (max)

Current load: 4 A

Contact type: 1 breaker
1 maker

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 1

: 1

: 4 A

: 3

: 2.8-4 A

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Screw connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-0JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1702444

1 A

0.7 A

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745448

0.16 A

0.11 A

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

0.16 A

0.11 A

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745450

0.2 A

0.14 A

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

0.2 A

0.14 A

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745453

0.25 A

0.18 A

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745454

0.32 A

0.22 A

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745455

0.4 A

0.28 A

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745456

0.5 A

0.35 A

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745457

0.63 A

0.45 A

Documents & Downloads

Datasheet

Datasheet 1740435 Siemens 3RV2411-1EA15 Circuit breaker 1 pc(s) 1 breaker, 1 maker Adjustment range (amperage): 4 A (max) Switching voltag

User & Safety Instructions

User & Safety Instructions 1740435 Siemens 3RV2411-1EA15 Circuit breaker 1 pc(s) 1 breaker, 1 maker Adjustment range (amperage): 4 A (max) Switching voltag

Description

Special type Circuit breaker size S0 for transformer protection A-release 13...20 A N-release 325 A Screw terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycles
