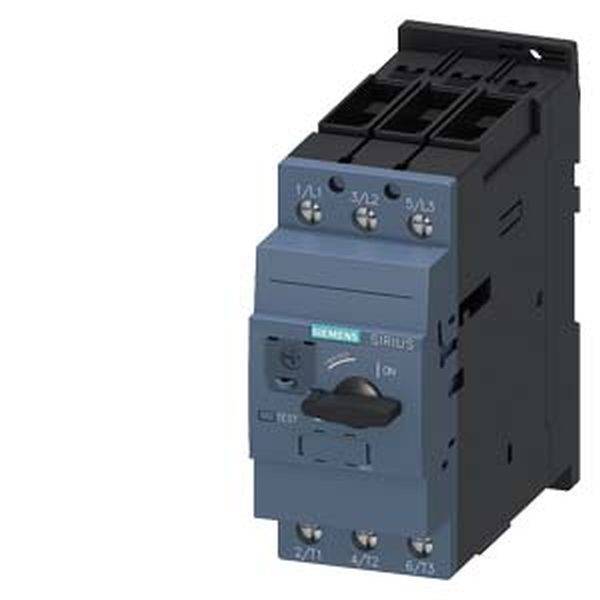

Siemens 3RV2431-4SA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 14 A (max) Switching voltage (max.): 690 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
14 A
Connection
Screws
Type
3RV2431-4SA10
Type
S2
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Technical specifications
- Design: for transformer protection
- Weight: 1,067 kg
- Design of the thread of the connection screw M6
- Mechanical life: 50000
- Electrical life: 50000
- Power loss: 10 W
- Mains frequency: 50/60 Hz.
- Product type
Circuit breaker
- Type
3RV2431-4SA10
- Type
S2
- Amperage adjustment range (max.)
14 A
- Adjustment range (amperage)
14 A (max)
- Current load
14 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
DIN rail
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Connection
Screws
IP20
- Depth
149 mm
- Width
55 mm
- Height
140 mm
- Dim

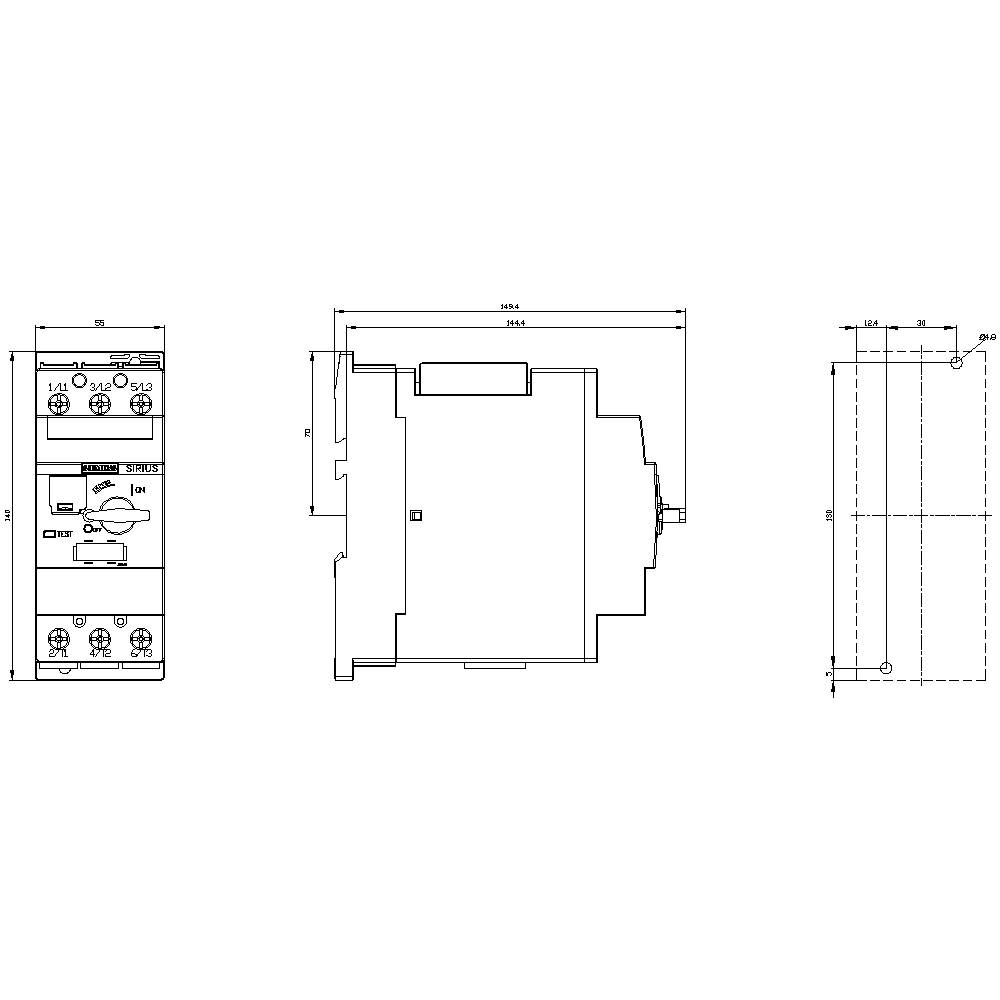

(W x H x D) 55 x 140 x 149 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
14 A
3
IP20
Other
FALSE
Screw connection
Toggle
FALSE
65 kA
TRUE
FALSE
FALSE
Built-in device fixed built-in technique
Documents & Downloads
Datasheet
Datasheet 1745806 Siemens 3RV2431-4SA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 14 A (max) Switching voltage (max.): 690 V AC
User & Safety Instructions
User & Safety Instructions 1745806 Siemens 3RV2431-4SA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 14 A (max) Switching voltage (max.): 690 V AC
Description
Pushbutton, 22mm, round, metal, black, front ring, raised, solvent-resistant, with holder !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is 3SU1050-0CB10-0AA0 + 3SU1550-0AA10-0AA0
