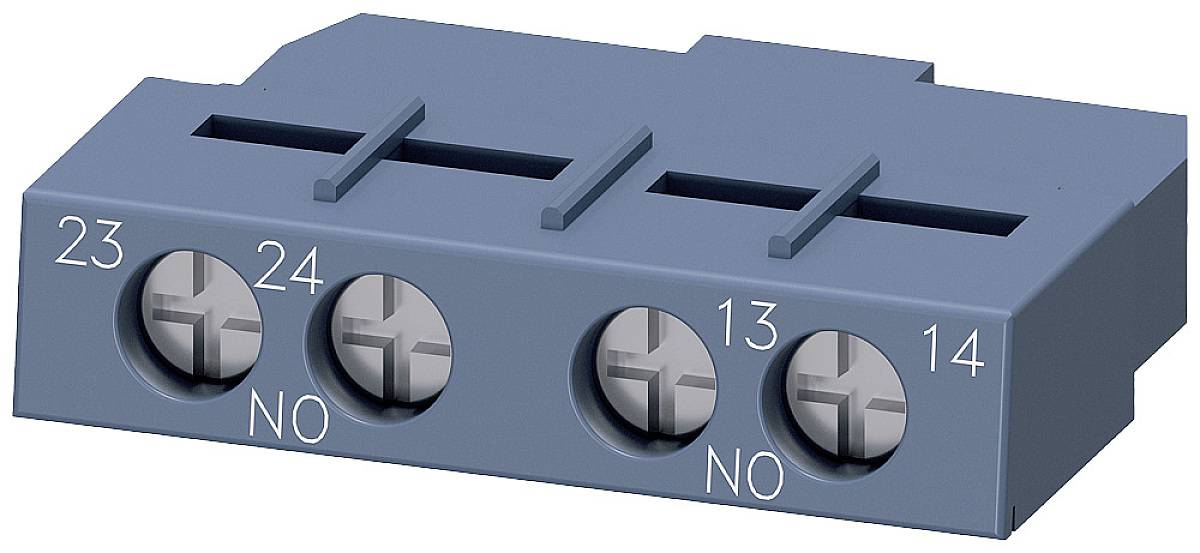

Siemens 3RV2901-1F Auxiliary switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Connection
Screws
Type
3RV2901-1F
Type
S00
S0
S2
S3
Auxiliary contact type
2 makers
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14-day return policy included
Technical specifications
- Design: Transverse frontSuitability for integration / circuit breaker: YesType of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 14)Type of connectable conductor cross-sections / for auxiliary contacts / single-wired: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²Type of connectable conductor cross-sections / for auxiliary contacts / fine-wired / with wire-end processing: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²
- Product type
Auxiliary switch
- Type
3RV2901-1F
- Type
S00
S0
S2
S3

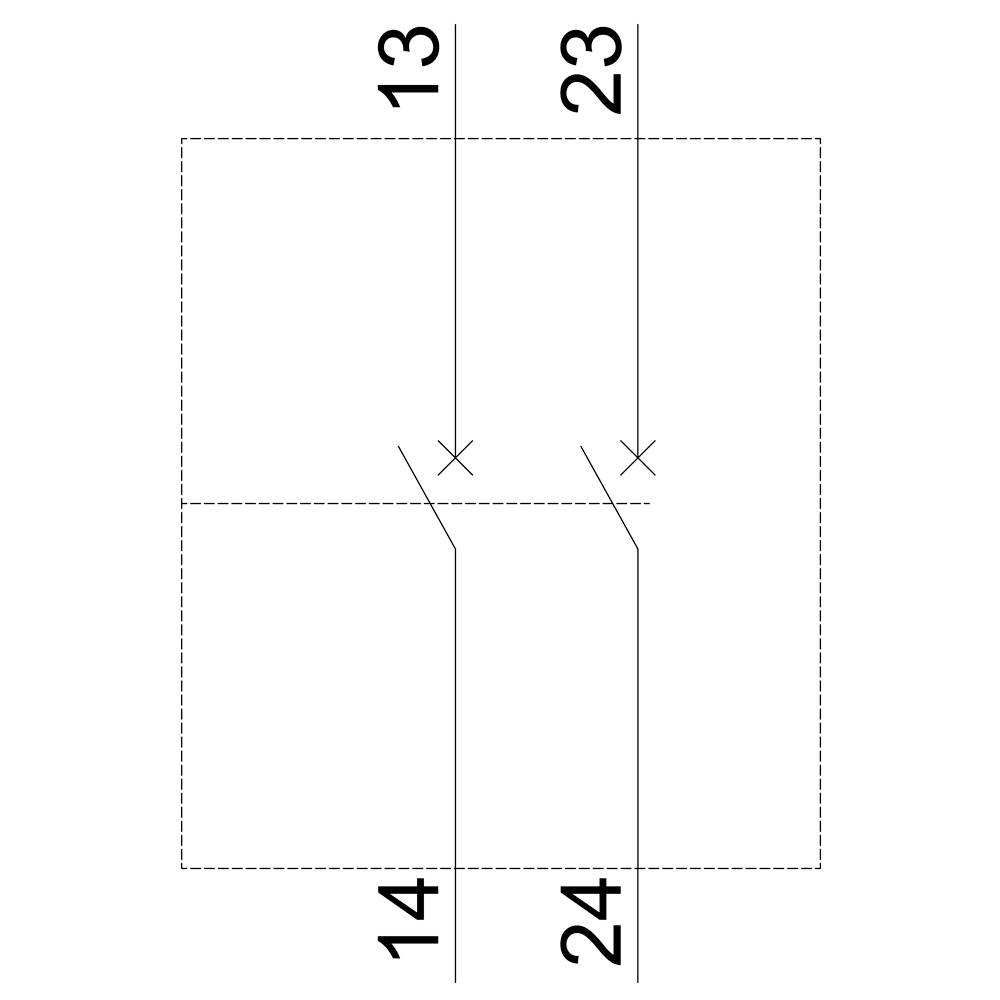

- Auxiliary contact type
2 makers
- Mounting type
Push-fit
- Connection
Screws
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
45 mm
- Height
12 mm
- Depth
17 mm

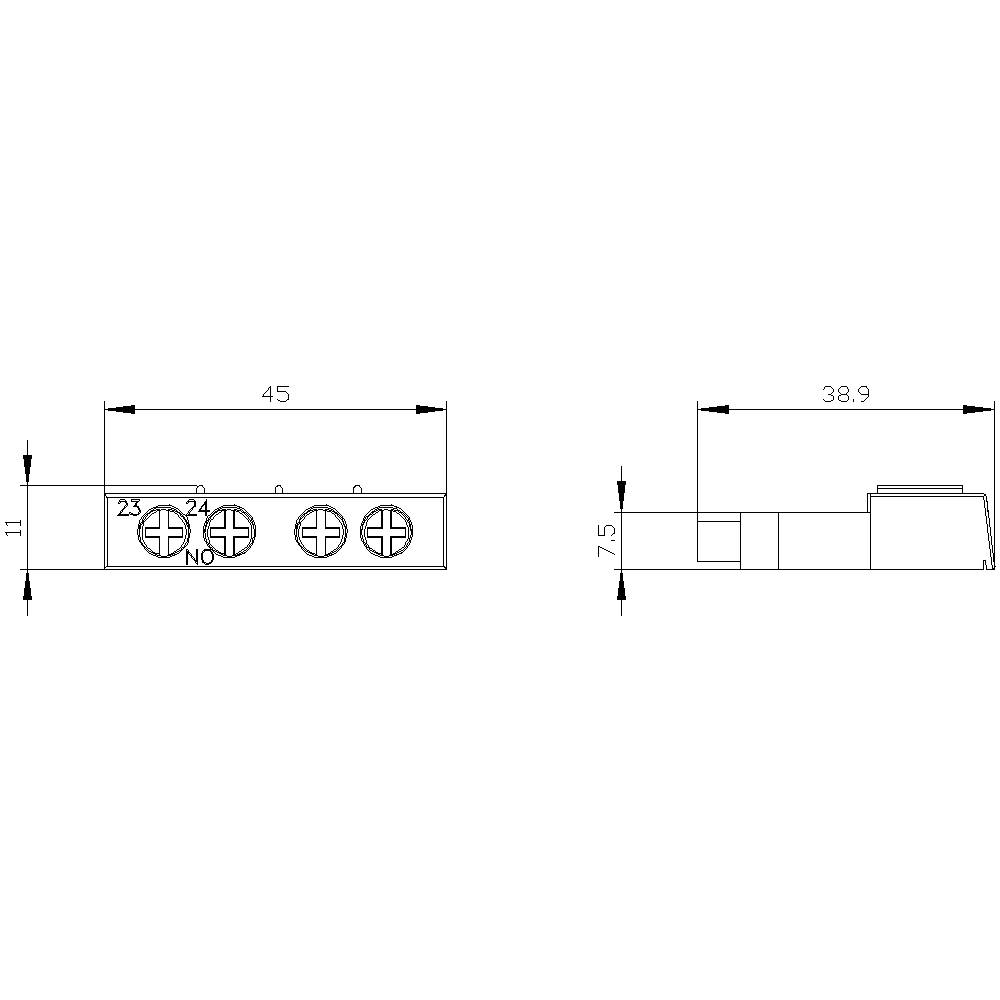

- Dim
(W x H x D) 45 x 12 x 17 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2862314 Siemens 3RV2901-1F Auxiliary switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2862314 Siemens 3RV2901-1F Auxiliary switch 1 pc(s)
Description
Auxiliary switch transverse 2 S, screw connection for 3RV2 motor starter protectors Simple, efficient, always up-to-date - the SIRIUS system kit.
