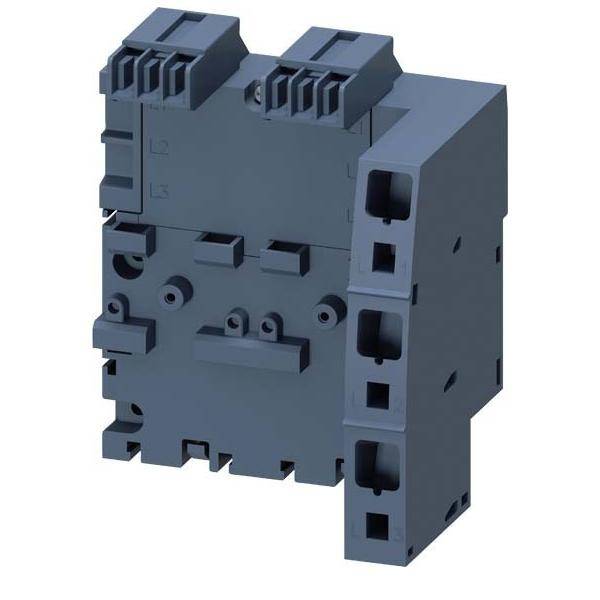

Siemens 3RV2917-1E Busbar 1 pc(s) (W x H x D) 110 x 129 x 86.5 mm
EAN:
Part number:
Item no:
Product type
Busbar
Connection
Spring-loaded terminal
Type
3RV2917-1E
Type
S00
No. of pins
3-pin
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
14-day return policy included
Technical specifications

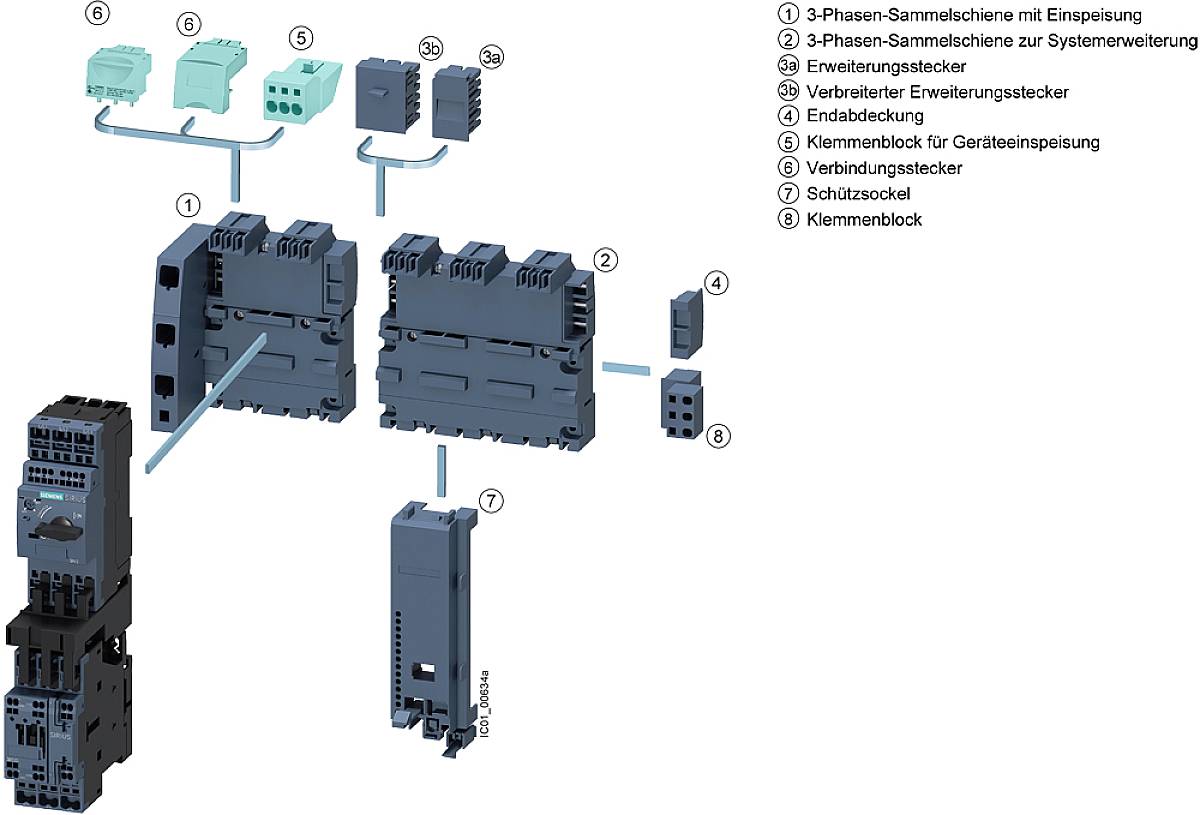

- 3-phase busbar with feed on the right side for 2 circuit breakers size S00 and S0
- Product type
Busbar
- Type
3RV2917-1E
- Type
S00
- No. of pins
3-pin
- Compatible with
Siemens
- Mounting type
DIN rail
- Connection
Spring-loaded terminal

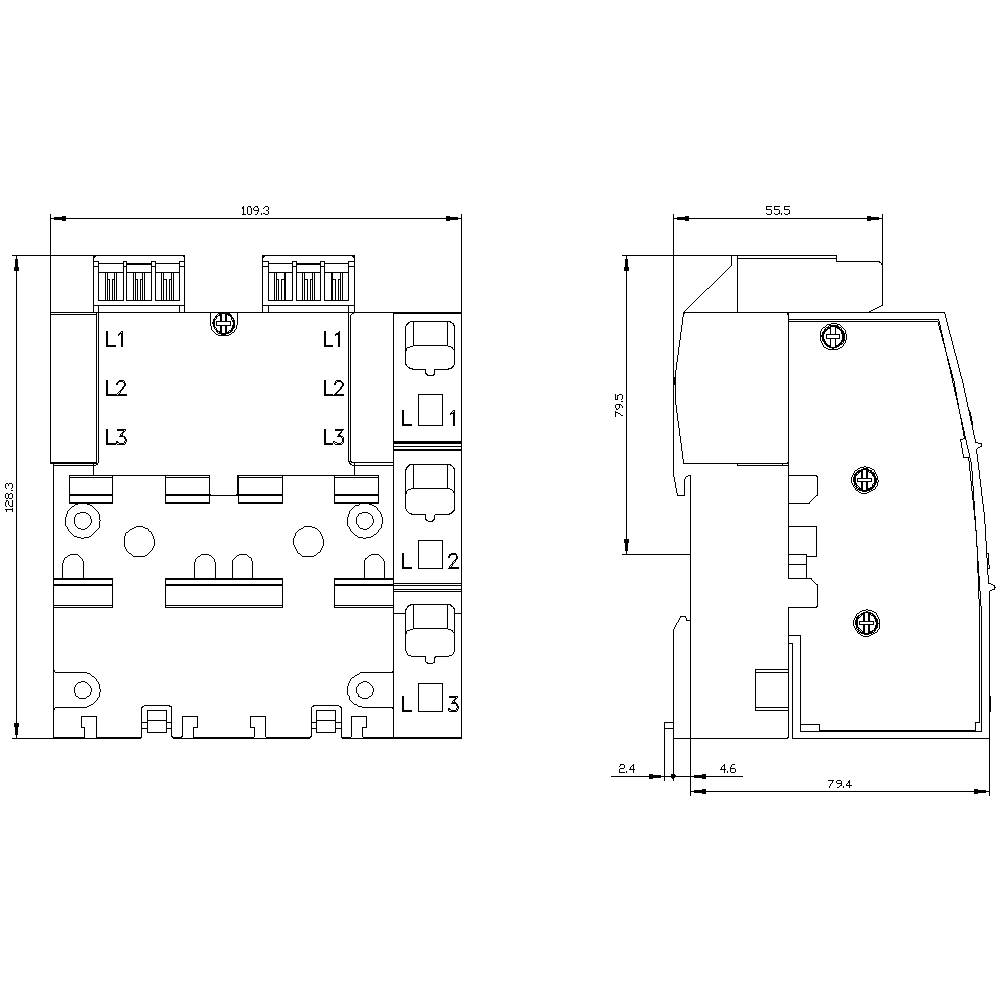

- Depth
86.5 mm
- Width
110 mm
- Height
129 mm
- Dim
(W x H x D) 110 x 129 x 86.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
63 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1749141 Siemens 3RV2917-1E Busbar 1 pc(s) (W x H x D) 110 x 129 x 86.5 mm
User & Safety Instructions
User & Safety Instructions 1749141 Siemens 3RV2917-1E Busbar 1 pc(s) (W x H x D) 110 x 129 x 86.5 mm
Description
power contactor, AC-3 80 A, 37 kW / 400 V 2 NO + 2 NC, 20-33 V AC/DC 3-pole, 3 NO, Size S3 screw terminal integrated varistor Captive auxiliary switch
