Siemens 3RW3018-1BB14 3RW30181BB14 Soft starter Motor power at 400 V 7.5 kW Motor power at 230 V 4 kW 400 V AC Nominal c
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 301.68 / piece)
€ 301.68
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Protection class: IP20
- Product type
Soft starter
- Motor power at 230 V
4 kW
- Motor power at 400 V
7.5 kW
- Operating voltage
110 - 230 V AC
- Nominal voltage
400 V AC
- Operating phases
1
- Type
Screw connector
- Manufacturer part #
3RW30181BB14
- Nominal current
17.6 A
- Nominal current - rounded value
17.6 A
- Type
3RW3018-1BB14
- Dim
(L x W x H) 150 x 45 x 100 mm
- Width
45 mm
- Height
100 mm
- Length
150 mm
- Depth
150 mm
- Max. temperature
60 °C
- Min. temperature
-25 °C
Single direction
IP20
Other
17.6 A
4 kW
7.5 kW
40 °C
FALSE
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 197559 Siemens 3RW3018-1BB14 3RW30181BB14 Soft starter Motor power at 400 V 7.5 kW Motor power at 230 V 4 kW 400 V AC Nominal c
User & Safety Instructions
User & Safety Instructions 197559 Siemens 3RW3018-1BB14 3RW30181BB14 Soft starter Motor power at 400 V 7.5 kW Motor power at 230 V 4 kW 400 V AC Nominal c
Description
SIRIUS soft starters S00 17.6 A, 7.5 kW/400 V, 40 °C AC 200-480 V, AC/DC 110-230 V screw terminals SIRIUS 3RW30 soft starters for standard applications for soft start-up of three-phase asynchronous motors.
Continuous starting, reducing current peaks, avoiding mains voltage fluctuations during startup, relieving the load on the power supply network, reducing the mechanical load in the drive, considerable space and wiring savings compared to star-delta starters and frequency converters, maintenance-free switching and simple handling. The integrated bypass allows for a very compact design and reduces heating in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for networks up to 690 V in a large power range with different control supply voltages and continuously with screw and spring-type terminals. With 3RW30/40 there are additional variants with 24 V control supply voltage. Some of the 3RW40 up to size S3 as well as all 3RW44 also offer a thermistor motor protection.

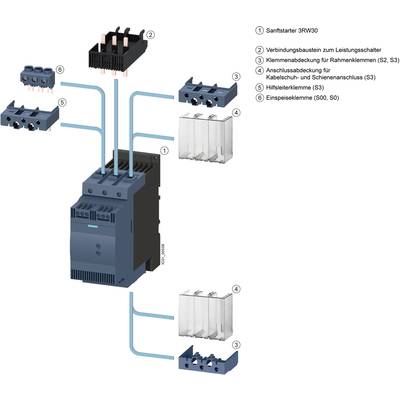

With the optional connection module, the soft starters can be attached to the circuit breakers, even for the versions with spring-type terminals.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
Continuous starting, reducing current peaks, avoiding mains voltage fluctuations during startup, relieving the load on the power supply network, reducing the mechanical load in the drive, considerable space and wiring savings compared to star-delta starters and frequency converters, maintenance-free switching and simple handling. The integrated bypass allows for a very compact design and reduces heating in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for networks up to 690 V in a large power range with different control supply voltages and continuously with screw and spring-type terminals. With 3RW30/40 there are additional variants with 24 V control supply voltage. Some of the 3RW40 up to size S3 as well as all 3RW44 also offer a thermistor motor protection.
With the optional connection module, the soft starters can be attached to the circuit breakers, even for the versions with spring-type terminals.
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
