Siemens 3RW3047-2BB04 3RW30472BB04 Soft starter Motor power at 400 V 55 kW 480 V Nominal current 106 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 1,155.46 / piece)
€
Technical specifications
- Protection class: IP00
- Mounting type: screw and snap
- Number of normally open contact: 1
- Size S3
- Operating frequency: 50/60 Hz
- Isolation voltage: 600 V
- Type
Screw connector
- Manufacturer part #
3RW30472BB04
- Nominal current
106 A
- Nominal current - rounded value
106 A
- Type
3RW3047-2BB04

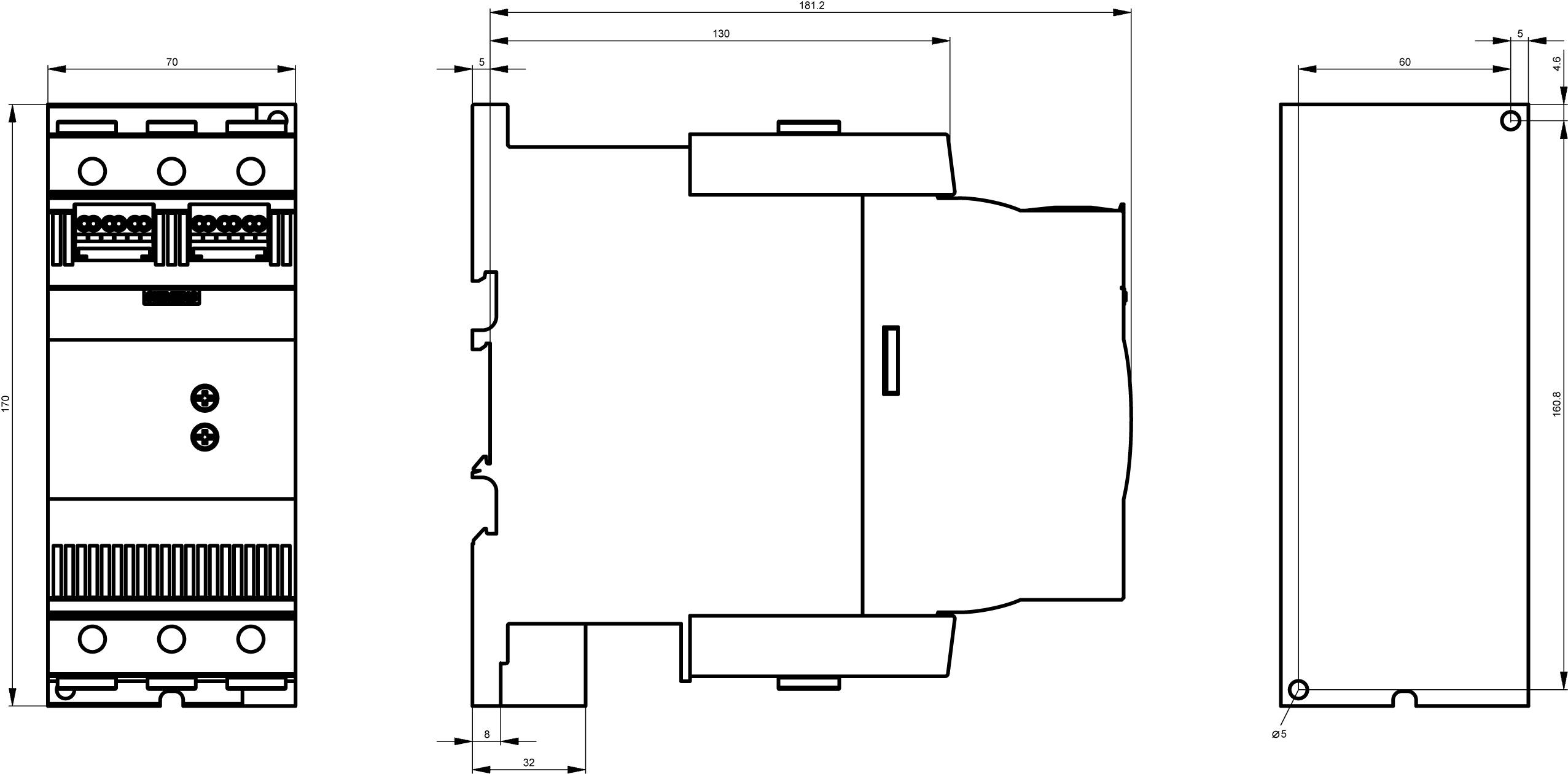

- Dim
(W x H x D) 70 x 170 x 190 mm
- Depth
190 mm
- Height
170 mm
- Width
70 mm
- Nominal voltage
480 V
- Motor power at 400 V
55 kW
- Max. temperature
+60 °C
- Min. temperature
-25 °C
Single direction
24-24 V
24-24 V
24-24 V
IP00
Other
106 A
30 kW
55 kW
40 °C
FALSE
AC/DC
- Product type
Soft starter
Documents & Downloads
Datasheet
Datasheet 1704974 Siemens 3RW3047-2BB04 3RW30472BB04 Soft starter Motor power at 400 V 55 kW 480 V Nominal current 106 A
User & Safety Instructions
User & Safety Instructions 1704974 Siemens 3RW3047-2BB04 3RW30472BB04 Soft starter Motor power at 400 V 55 kW 480 V Nominal current 106 A
Description
Contactor, 2NO + 2NC, AC-3, 4 kW 110 V AC, 50 Hz, 120 V, 60Hz, 4-pole, 2NO + 2NC, Size S00, Screw terminal
