Name: Siemens 3RW5056-6AB04 3RW50566AB04 Soft starter Motor power at 400 V 90 kW Motor power at 230 V 45 kW 200 V, 480 V Nomin
Brand: Siemens
SKU: 2864169

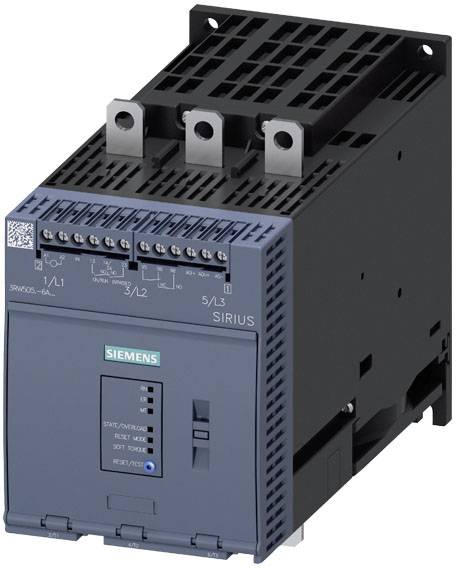

A Siemens electrical contactor, SIRIUS model. It has three poles for power requirements in switchgear or motor control applications.

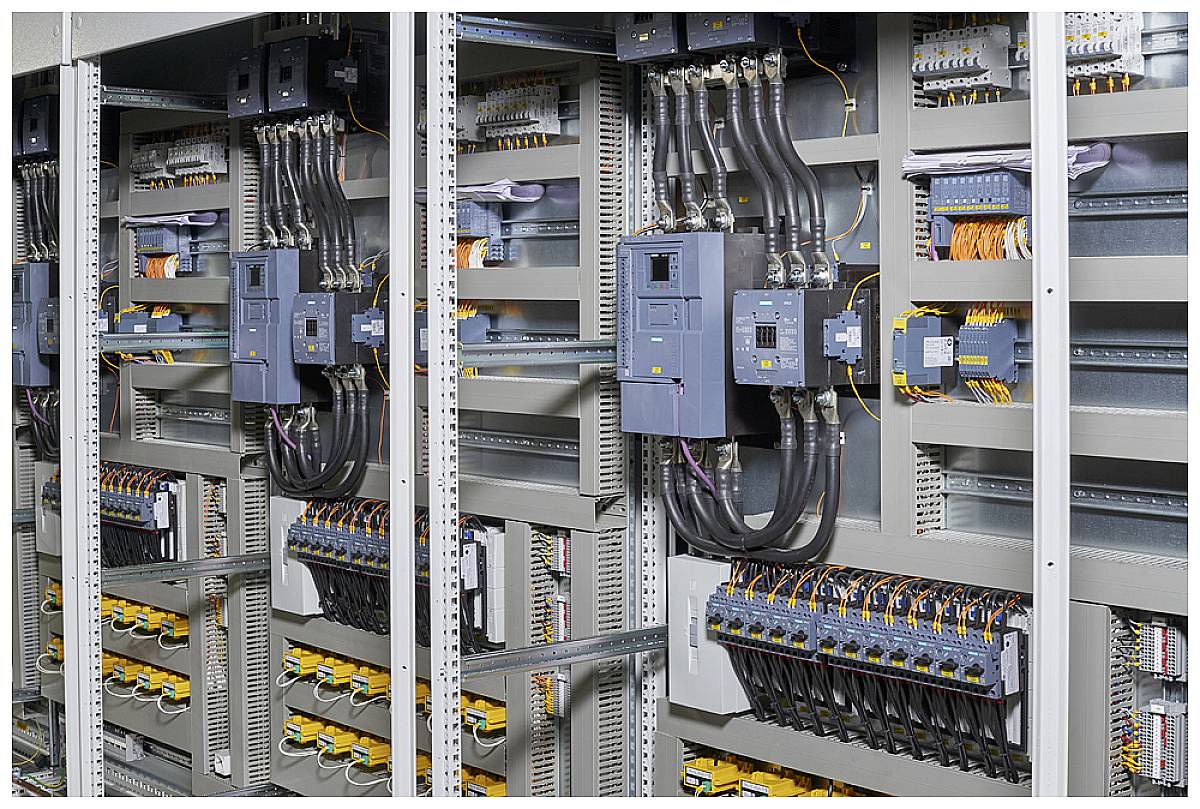

Server rack with wired components and junction boxes in a technical room, enabling power supply and data connections.

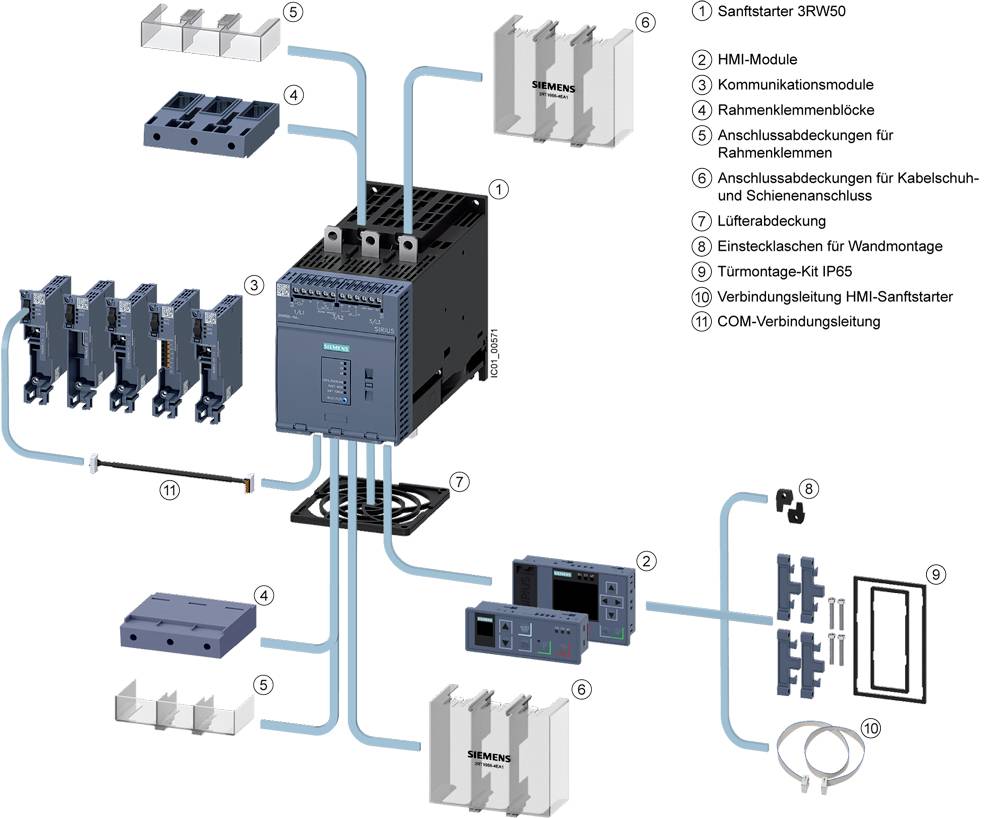

The diagram shows the wiring and components of a soft starter. It includes modules, covers, and connection elements with numbered explanations.

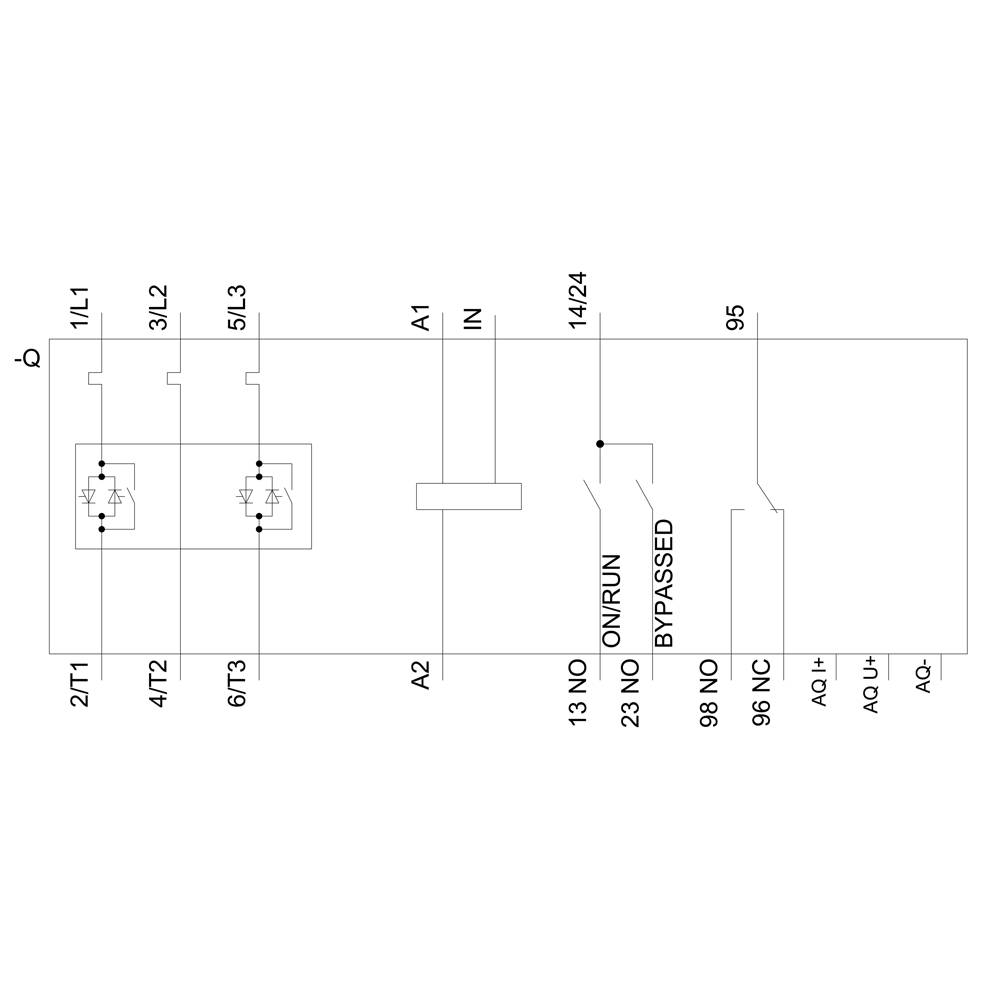

'Circuit diagram of an electrical system with contacts and terminals, including labels such as IN, A1, A2, T1, T2, T3.'

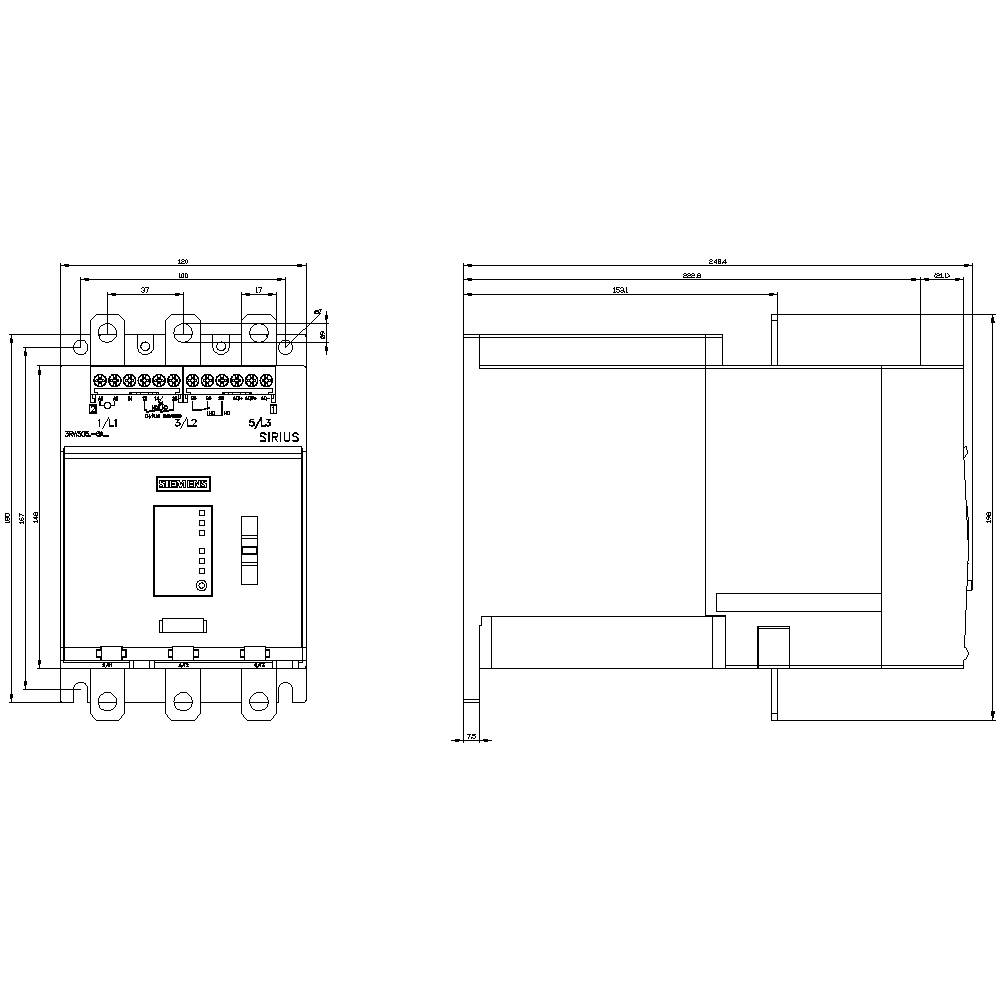

'Technical drawing of a SIRIUS switchgear with detailed dimensions and connections, viewed from the front and side.'

1/5

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of digital inputs: 1
Motor protection design: Electronic, tripping when the motor is thermally overloaded
Mounting type: Screw fixing
Operating frequency 50/60 Hz
Insulation voltage 600 V
IP00 protection
Digital output design: 2 NO contact / 1 CO contact
Frame size of the soft starter: S6

Motor voltage: 200-480 V

Product type: Soft starter

Supply current: 171 A

Motor power at 230 V: 45 kW

Motor power at 400 V: 90 kW

Nominal voltage: 200 V
480 V

Type: PRODUCT VERSION AC/DC 24 V.

Manufacturer part #: 3RW50566AB04

Nominal current: 171 A

Nominal current - rounded value: 171 A

Type: 3RW5056-6AB04

Motor power at 230V / 400V: 90 kW

Slow-down time: 20 s

Dim: (W x H x D) 120 x 198 x 249 mm

Connection: Screw terminal

Width: 120 mm

Height: 198 mm

Depth: 249 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Motor power at 400 V

Motor power at 230 V

Nominal voltage

Siemens "delete" Soft starter Motor power at 400 V 1.1 kW Motor power at 230 V 0.55 kW 200 V, 400 V Nominal current 3 A

Item no:2262687

Unavailable

Conrad Electronic

3 A

1.1 kW

0.55 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW3026-1BB14 3RW30261BB14 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 5.5 kW 200 V, 480 V Nominal current 25 A

Item no:2262688

Unavailable

Conrad Electronic

25 A

11 kW

5.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW3026-1BB14 3RW30261BB14 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 5.5 kW 200 V, 480 V Nominal current 25 A

Item no:2864143

Unavailable

1 Set(s)Conrad Electronic

25 A

11 kW

5.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW4028-1BB14 3RW40281BB14 Soft starter Motor power at 400 V 18.5 kW Motor power at 230 V 11 kW 200 V, 480 V Nominal current 38 A

Item no:2262689

Unavailable

Conrad Electronic

38 A

18.5 kW

11 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW4028-1BB14 3RW40281BB14 Soft starter Motor power at 400 V 18.5 kW Motor power at 230 V 11 kW 200 V, 480 V Nominal current 38 A

Item no:2864144

Unavailable

2 Set(s)Conrad Electronic

38 A

18.5 kW

11 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW5055-2AB04 3RW50552AB04 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW 200 V, 480 V Nominal current 143 A

Item no:2262690

Unavailable

Conrad Electronic

143 A

75 kW

37 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW5055-2AB04 3RW50552AB04 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW 200 V, 480 V Nominal current 143 A

Item no:2864145

Unavailable

Conrad Electronic

143 A

75 kW

37 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW5055-2AB05 3RW50552AB05 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW 200 V, 600 V Nominal current 143 A

Item no:2262691

Unavailable

Conrad Electronic

143 A

75 kW

37 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW5055-2AB05 3RW50552AB05 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW 200 V, 600 V Nominal current 143 A

Item no:2864146

Unavailable

Conrad Electronic

143 A

75 kW

37 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RW5055-2AB14 3RW50552AB14 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW 200 V, 480 V Nominal current 143 A

Item no:2864147

Unavailable

Conrad Electronic

143 A

75 kW

37 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2864169 Siemens 3RW5056-6AB04 3RW50566AB04 Soft starter Motor power at 400 V 90 kW Motor power at 230 V 45 kW 200 V, 480 V Nomin

User & Safety Instructions

User & Safety Instructions 2864169 Siemens 3RW5056-6AB04 3RW50566AB04 Soft starter Motor power at 400 V 90 kW Motor power at 230 V 45 kW 200 V, 480 V Nomin

Description

SIRIUS soft starters 200-480 V 171 A, AC/DC 24 V screw terminals Analogue output SIRIUS 3RW50 Basic Performance soft starters for simple applications for soft run-up and slow-down of DC synchronous motors.
Continuously start, reduce current peaks, prevent mains voltage fluctuations during start-up, relieve the power supply, reduce the mechanical load in the drive, save space and wiring compared to star-delta starters and frequency converters, maintenance-free switching and easy handling. The integrated bypass makes the very compact design possible, saves energy and ensures low heating in the control cabinet. Intelligent monitoring functions protect the soft starter from overheating and the motor against overload. You can also limit the current to a set maximum value during power-up. The innovative soft-torque function ensures gentle engine start-up. With the integrated remote reset you can quickly and easily remove disturbances from the distance Worldwide approvals (e.g. IEC and UL/CSA) also for explosion-prone applications (ATEX or IEC Ex).
The 3RW50 basic performance soft starters are available for networks up to 600 V in a power range of up to 315 kW with 24 V or 110-250 V control supply voltages and are consistent with screw and spring connection. Different equipment versions are available for analog output and thermistor motor protection.
Optional communication modules enable connection via PROFINET, PROFIBUS and Modbus TCP. Various HMI modules are available for installation in the control cabinet door.
The 3RW50 soft starters replace the tried-and-tested 3RW40 series (sizes S6 to S12).
Soft starters SIRIUS 3RW5 - As flexible as your task.

This text is machine translated.
