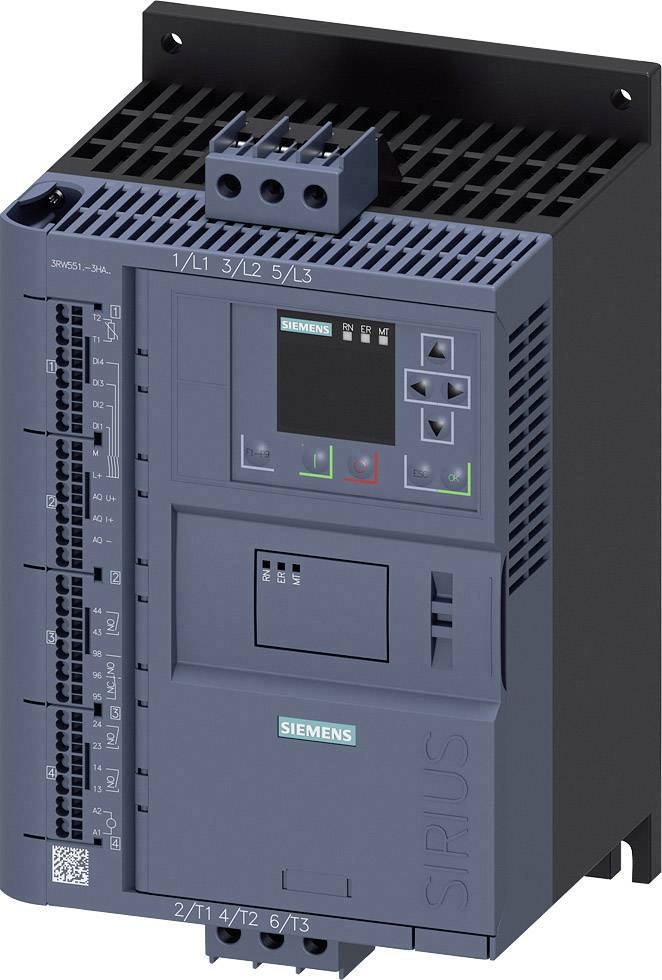

Siemens 3RW5513-3HA04 3RW55133HA04 Soft starter Motor power at 400 V 5.5 kW Motor power at 230 V 3 kW 200 V, 480 V Nomin
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Technical specifications
- Motor voltage
200-480 V
- Product type
Soft starter
- Supply current
13 A
- Motor power at 230 V
3 kW
- Motor power at 400 V
5.5 kW
- Nominal voltage
200 V
480 V
- Operating phases
3
- Manufacturer part #
3RW55133HA04
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Type
3RW5513-3HA04
- Connection
Spring-loaded connector
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3638320 Siemens 3RW5513-3HA04 3RW55133HA04 Soft starter Motor power at 400 V 5.5 kW Motor power at 230 V 3 kW 200 V, 480 V Nomin
User & Safety Instructions
User & Safety Instructions 3638320 Siemens 3RW5513-3HA04 3RW55133HA04 Soft starter Motor power at 400 V 5.5 kW Motor power at 230 V 3 kW 200 V, 480 V Nomin
