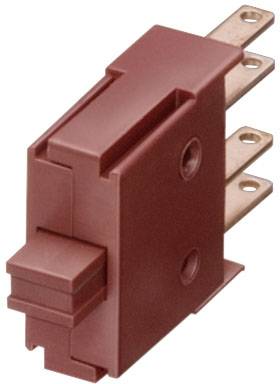

Siemens 3SB2404-0B Switch module 1 maker 230 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch module
Nominal voltage
230 V DC/AC
Connection
CEE 7/16 CEE plug
Type
3SB2404-0B
Contact type
1 maker
Datasheet (PDF)
Technical specifications
- Application area: As accessories for 3SB2 command and warning devicesSuitability for integration / pressure selector switch: YesSuitability for integration / Front element: YesProtection class IP / the connection terminal: IP00Protection class IP / of housing: IP40
- Product type
Switch module
- Type
3SB2404-0B
- Contact type
1 maker
- Auxiliary contact type
1 maker
- Nominal voltage
230 V DC/AC
- Permanent current (max.)
4 A
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Mounting type
Push-fit
- Connection
CEE 7/16 CEE plug
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
8 mm
- Height
19 mm
- Depth
31 mm
- Dim
(W x H x D) 8 x 19 x 31 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Flat plug-in connection
0
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2734963 Siemens 3SB2404-0B Switch module 1 maker 230 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2734963 Siemens 3SB2404-0B Switch module 1 maker 230 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)
Description
Switching element, 1S, flat plug connection switching element SIRIUS 3SB2 as accessories for 3SB2 command and warning devices.The 3SB2 push buttons and indicator lights are modular, tried and tested and industry compatible. Their small design makes them particularly suitable for small control surfaces. They are highly functional, extremely robust and meet the standards IEC/EN 60947-5-1 and 60947-5-5. They can be installed without special tools and in high packing density.Available designs: Various types of contacts with flat-pin or solder pin connection.Extensive optional accessories (e.g. Protective cap, labeling plates or handling) are available.3SB2 - space saving, practice proven and industry compatible!
