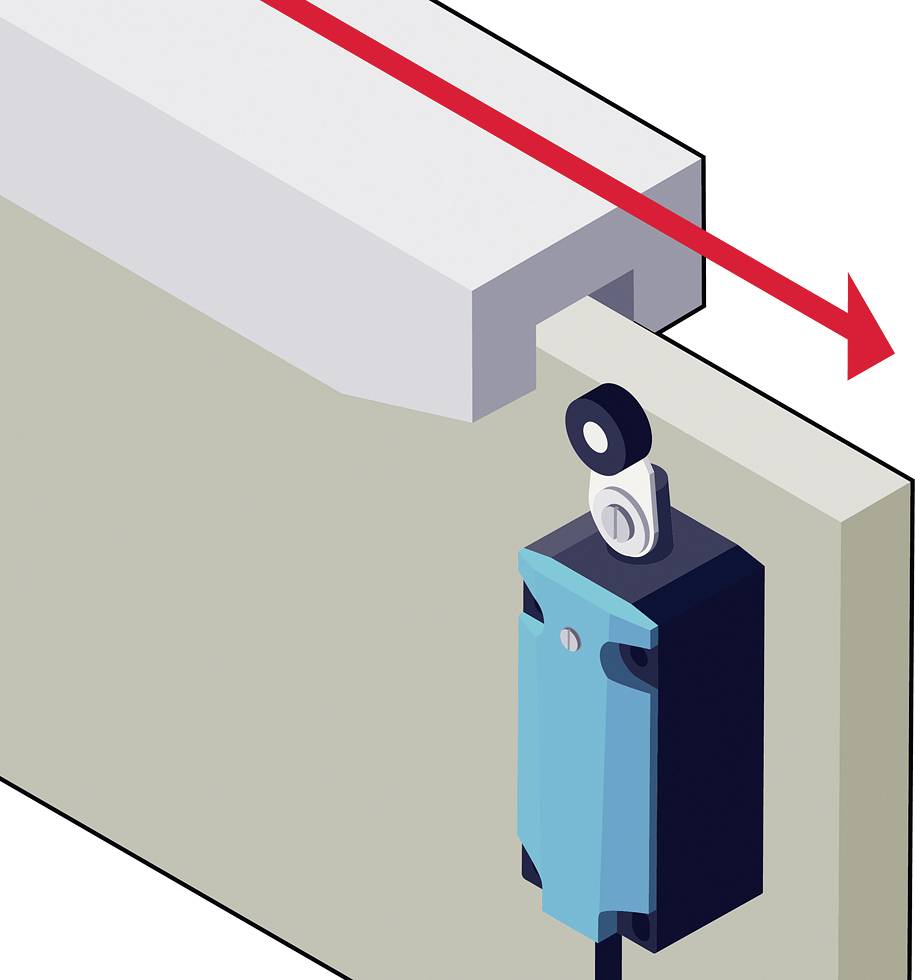

Siemens 3SE51141CH601AF3 3SE5114-1CH60-1AF3 Door-operated switch Rotary lever 1 pc(s)

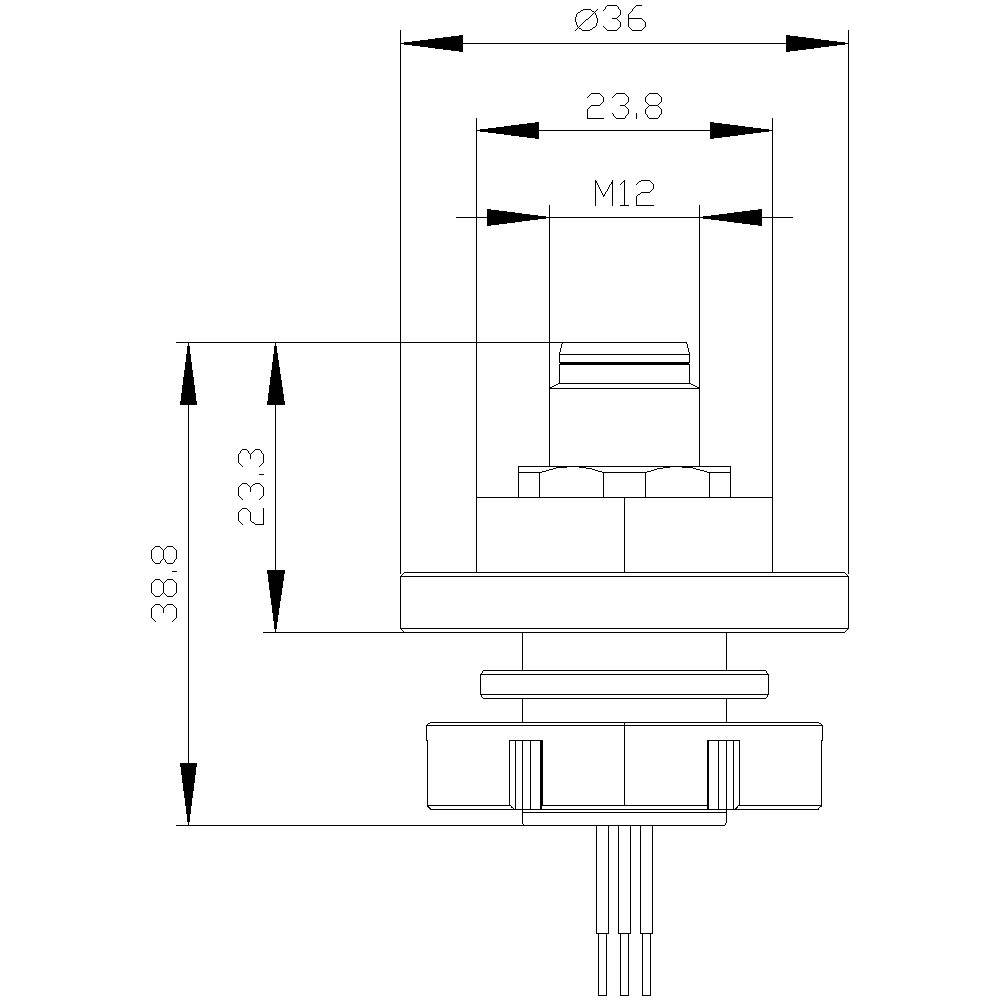

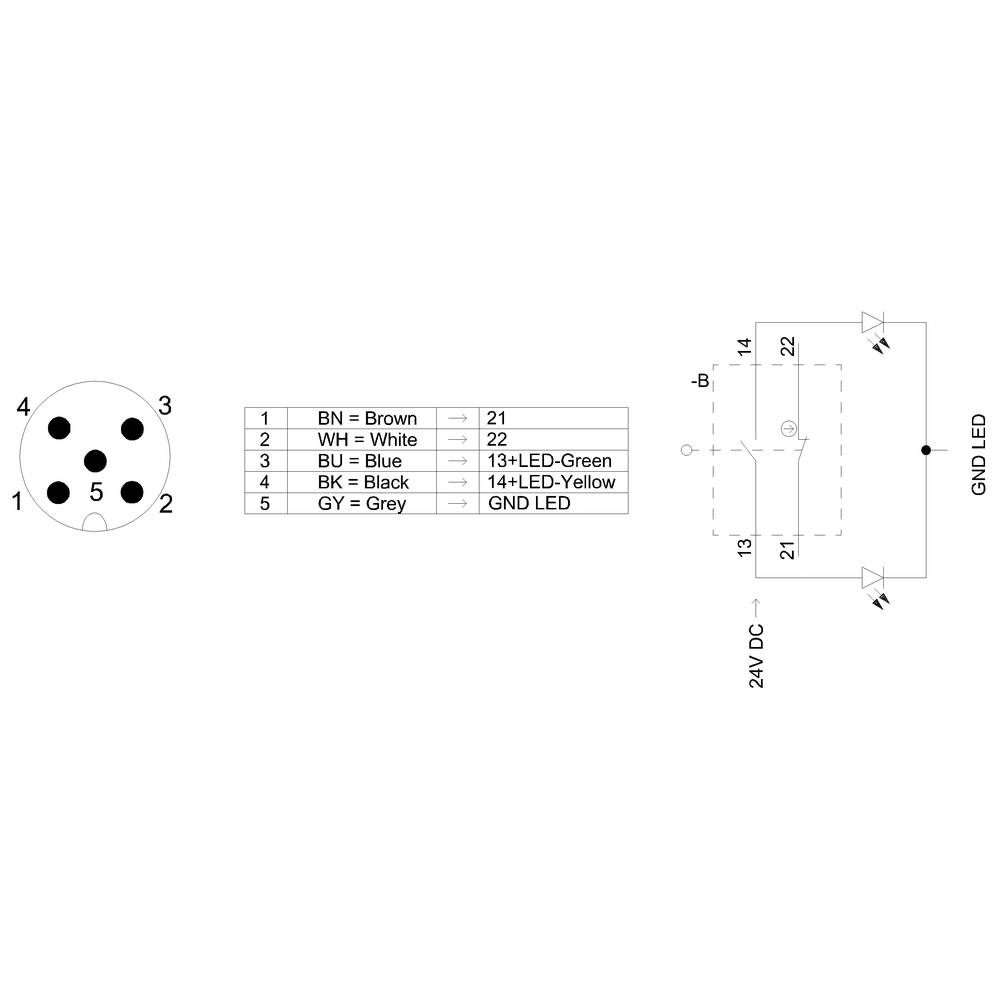

Position switch, 3SE5114 Metal housing 40 mm with adjustable swivel lever with length of raster drill EN50041.1S/1Ö Spring contacts with M12 plug, 5-pin, fixed with 2 LED, yellow/green, DC 24 V Pin assignment: Pin1=21, Pin2=22 pin 3=13 + LED green, pin 4=14 and yellow LED, pin 5=ground LED Mechanical position switch SIRIUS 3SE5 for position and position detection of machine parts and position monitoring of safety devices.
The modular design of the 3SE5 position switches enables a variety of variants with a small number of bearing types. The wide variety of plug and rollers meets almost all requirements in industrial everyday life. LEDs indicate the current status of the device. Thanks to quick connection technology, connection times can be reduced considerably. Switching points and fixing to EN 50047 and EN 50041. The devices are approved worldwide (IEC, UL). The highest security requirements can be established according to PL e or SIL 3 must be satisfied. The integrated ASIsafe electronics require low power consumption.
There are various housing sizes available, with different switching elements, in plastic or metal or compact design. Some versions are available with optional LED status indicator and M12 connector. The 3SF1 series with direct connection to the AS-Interface bus system rounds off the portfolio.
Depending on the version, drive heads and plugs as well as additional mounting/connection accessories are available.
Safety is a SIRIUS business.

This text is machine translated.
