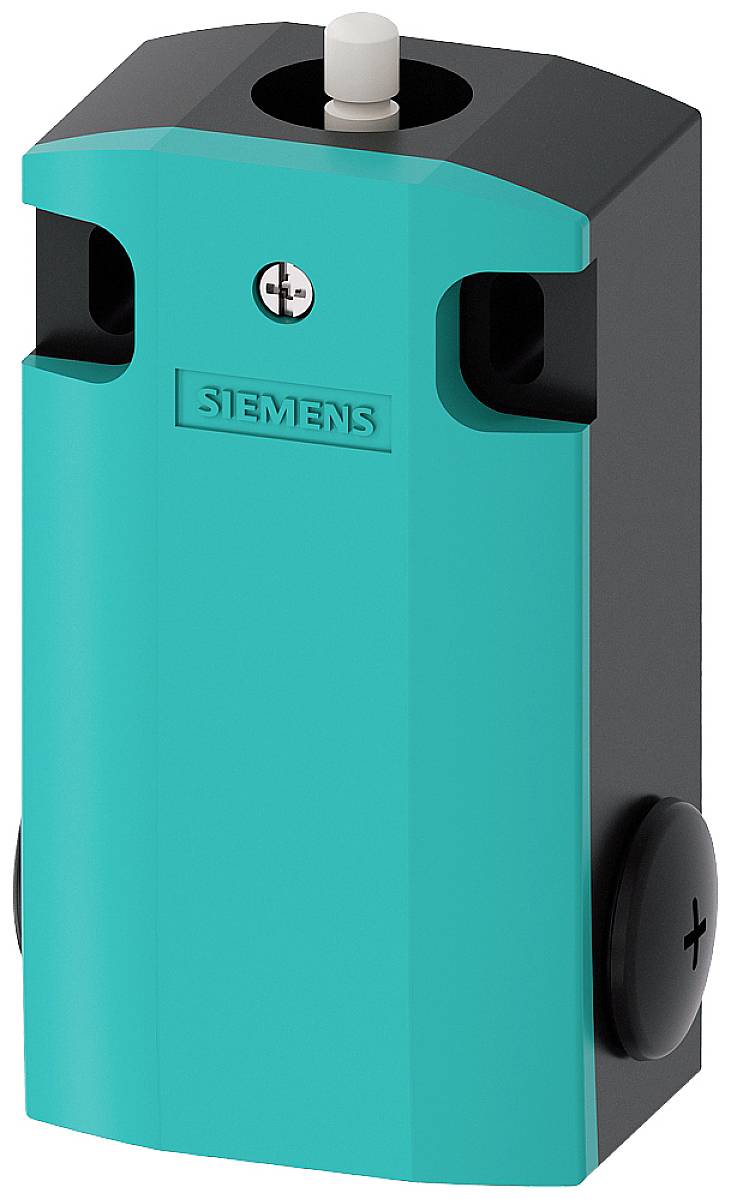

Siemens 3SE51620AA00 3SE5162-0AA00 Enclosure IP66, IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
14-day return policy included
Technical specifications
- Isolation voltage: 400 V
- Product type
Enclosure
- Weight
407 g
- Min. temperature
-25 °C
- Max. temperature
+85 °C
IP66
IP67
- Thread size
M20 x 1.5
- Material
Metal
- Compatible with (details)
For position switches
- Width
56 mm
- Type
3SE5162-0AA00
- Content
1 pc(s)

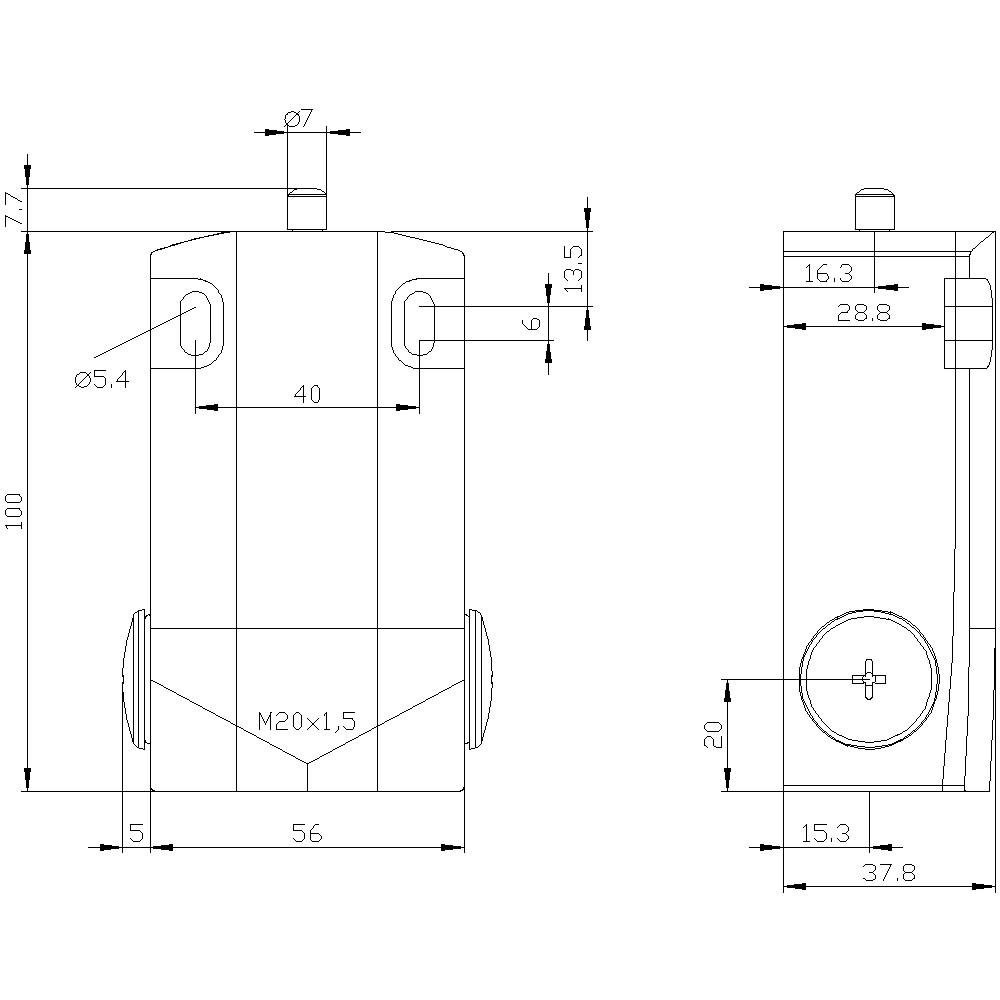

- Dim
(L x W) 100 mm x 56 mm
- RoHS-compliant
Yes
- Length
100 mm
- Depth
37.3 mm
Metal
None
None
None
IP66/IP67
None
56 mm
37.3 mm
100 mm
Roller cam straight
12
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1745501 Siemens 3SE51620AA00 3SE5162-0AA00 Enclosure IP66, IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1745501 Siemens 3SE51620AA00 3SE5162-0AA00 Enclosure IP66, IP67 1 pc(s)
Description
Position switch Metal enclosure 31 mm according to EN 50047 Device connection 1 x (M20 x 1.5) Rotary actuator right/left 1 NO/2 NC slow-action contacts adjustable, with adjustable-length Metal lever, 100 mm long and plastic roller 19 mm
