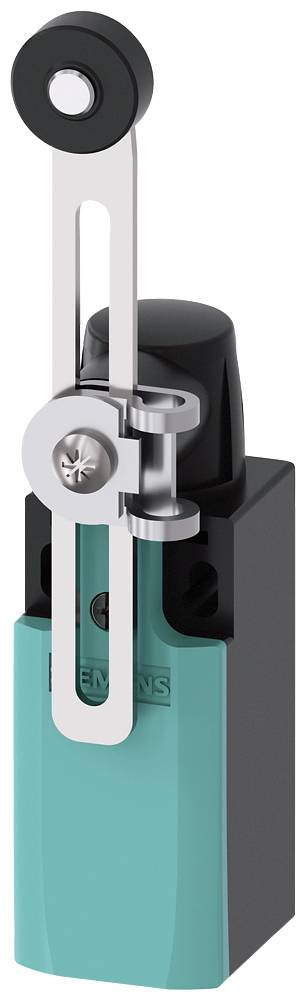

Siemens 3SE52120NH50 3SE5212-0NH50 Door-operated switch Adjustable rotary lever 1 pc(s)

Position switch metal housing according to DIN EN 50047, 31 mm device connection 1 x M20 x 1.5) 1S/1Ö jump contacts short stroke length-adjustable pivot lever right/left adjustable with plastic roll 19 mm with 3SE5000-0AH00 swivel drive (EN 50041) SIRIUS 3SE5 mechanical position switches for position and position detection of machine components and position monitoring of safety devices.
The modular design of the 3SE5 position switches enables a variety of variants with a small number of bearing types. The wide variety of plug and rollers meets almost all requirements in industrial everyday life. LEDs indicate the current status of the device. Thanks to quick connection technology, connection times can be reduced considerably. Switching points and fixing to EN 50047 and EN 50041. The devices are approved worldwide (IEC, UL). The highest security requirements can be established according to PL e or SIL 3 must be satisfied. The integrated ASIsafe electronics require low power consumption.
There are various housing sizes available, with different switching elements, in plastic or metal or compact design. Some versions are available with optional LED status indicator and M12 connector. The 3SF1 series with direct connection to the AS-Interface bus system rounds off the portfolio.
Depending on the version, drive heads and plugs as well as additional mounting/connection accessories are available.
Safety is a SIRIUS business.

This text is machine translated.
