Buy Siemens 3SU10001AA200AA0 3SU1000-1AA20-0AA0 Mushroom head pushbutton latch (Ø x H) 30 mm x 30 mm IP66, IP67, IP69/IP69K

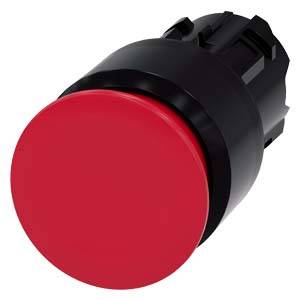

Red push button with a black casing, often used as an emergency stop switch to quickly shut down machines or equipment.

Image similar

Cable car station with an orange gondola in the foreground. Control panel on the right. Mountain landscape visible through the glass front.

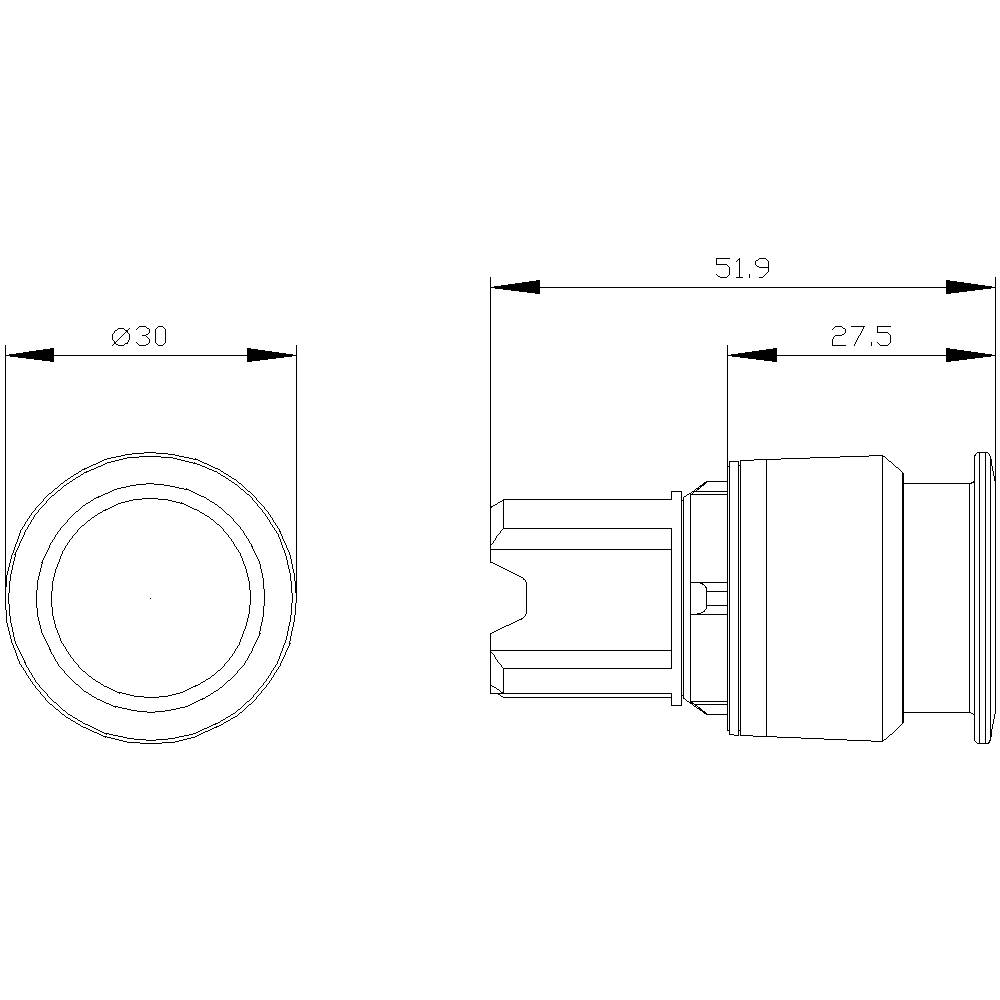

Technical drawing of a cylindrical component with dimensions Ø30, length 51.9 and detail dimension 27.5, in side and front view.

1/3

Image similar

Product type

Mushroom head pushbutton

Lighting type

None

Width

30 mm

Recess diameter

22.3 mm

IP rating

IP66

IP67

IP69/IP69K

Datasheet (PDF)

Dispatches on Fri, 10 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 28.56 / piece)

€ 28.56

plus VAT.

Report legal concerns

Technical specifications

Weight: 26 g

Product type: Mushroom head pushbutton

Switch/button features: + anti-twist safeguard

Casing/button colour: Red

Functions: latch

Type: Activation/message element

Lighting type: None

Material: Plastic

Min. temperature: -25 °C

Shape: Round

Max. temperature: +70 °C

Width: 30 mm

Height: 30 mm

(Ø): 30 mm

Recess length: 27.5 mm

Durability: 500000

Recess diameter: 22.3 mm

Recess depth: 24.4 mm

Recess width: 30 mm

Front panel cut-out: 22 mm

: IP66
IP67
IP69/IP69K

Content: 1 pc(s)

Dim: (Ø x H) 30 mm x 30 mm

RoHS-compliant: Yes

Type: 3SU1000-1AA20-0AA0

: 22.3 mm

: Red

: FALSE

: Pull-release

: FALSE

: 30 mm

: FALSE

: High

: Black

: 30 mm

: 27.5 mm

: IP67/IP69K

: Plastic

: TRUE

: Round

: FALSE

: Other

UKCA: yes
