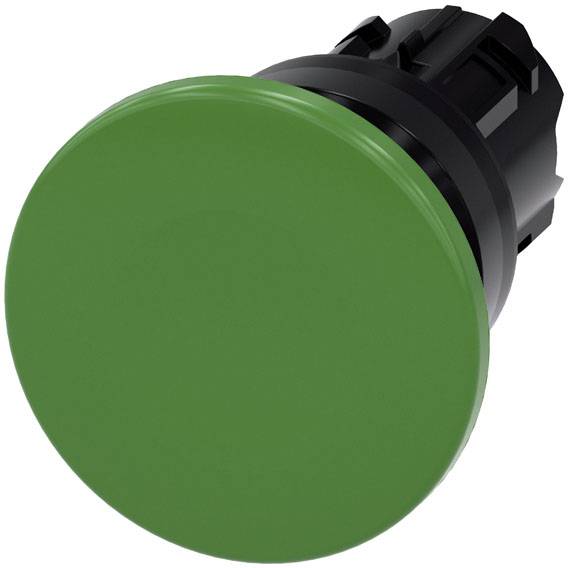

Siemens 3SU10001BD400AA0 3SU1000-1BD40-0AA0 Mushroom head pushbutton Front ring (PVC) Button Black, Green 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 16.94
3
5% = € 0.84
€ 16.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.94 / piece)
€ 16.94
plus VAT.
Only 1 Set(s) available
Technical specifications
- Number of command points: 1
- Number of switch positions: 2

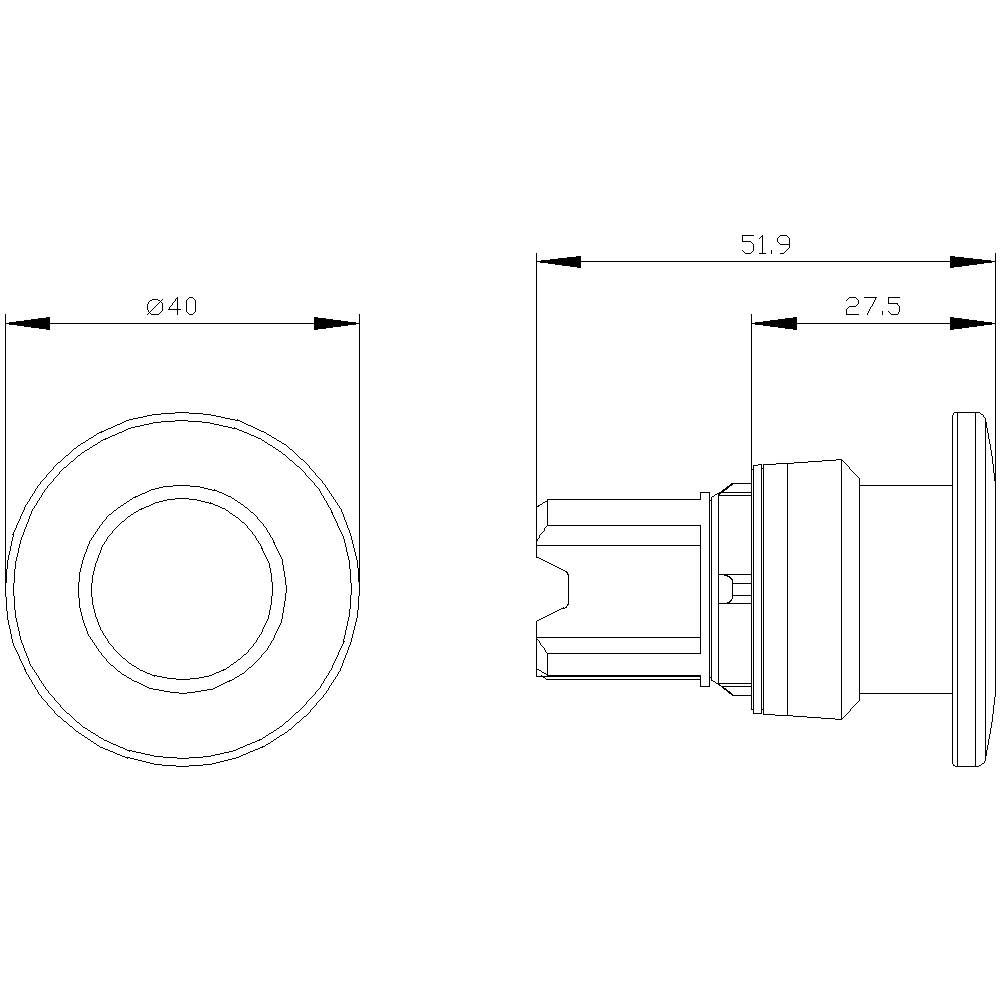

- Mounting width 40 mm
- Mounting height 27.5 mm
- Material / actuator: Plastic
- Product component / front ring: Yes
- Front ring design: Standard
- Installation depth: 24.4 mm
- Form / mounting hole: Round
- Switching frequency / maximum [1/h]: 3600
- Vibration resistance: 10 ... 500 Hz: 5g
- Equipment protection class II.
- Positive tolerance of the mounting diameter: 0.4 mm
- Product type
Mushroom head pushbutton
- Switch/button features
Front ring (PVC)
- Operation type
Button
- Factory colour
Black
Green
- Button Ø
40 mm
- Shape
Round
- Functions
momentary
- Durability
10000000
- Recess diameter
22.3 mm
- Type
Actuating/signaling element
IP66
IP67
IP69/IP69K
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Switch position
1 x Off/(On)
- Width
40 mm
- Height
40 mm
- Content
1 pc(s)
- Dim
(W x H) 40 mm x 40 mm
- RoHS-compliant
Yes
- Type
3SU1000-1BD40-0AA0
FALSE
IP67/IP69K
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2863888 Siemens 3SU10001BD400AA0 3SU1000-1BD40-0AA0 Mushroom head pushbutton Front ring (PVC) Button Black, Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2863888 Siemens 3SU10001BD400AA0 3SU1000-1BD40-0AA0 Mushroom head pushbutton Front ring (PVC) Button Black, Green 1 pc(s)
Description
Mushroom pushbutton, 22 mm, round, plastic, green, 40 mm, momentary action mushroom pushbutton SIRIUS ACT with large handle for comfortable operation with the whole hand.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: 30/40/60 mm mushroom diameter, several colors, illuminated/unilluminated, latching/momentary action, pull/twist release.
Note: Individual devices, holder and modules please order separately.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
