Buy Siemens 3SU10003AB660AA0 3SU1000-3AB66-0AA0 Double head pushbutton momentary (L x W x H) 57.7 x 29.8 x 57.7 mm IP66, IP6

An oval, two-colour light with a transparent central strip for electrical appliances or lighting systems.

Image similar

Cable car station with an orange gondola ready for boarding. Control panel for operating the system in the foreground.

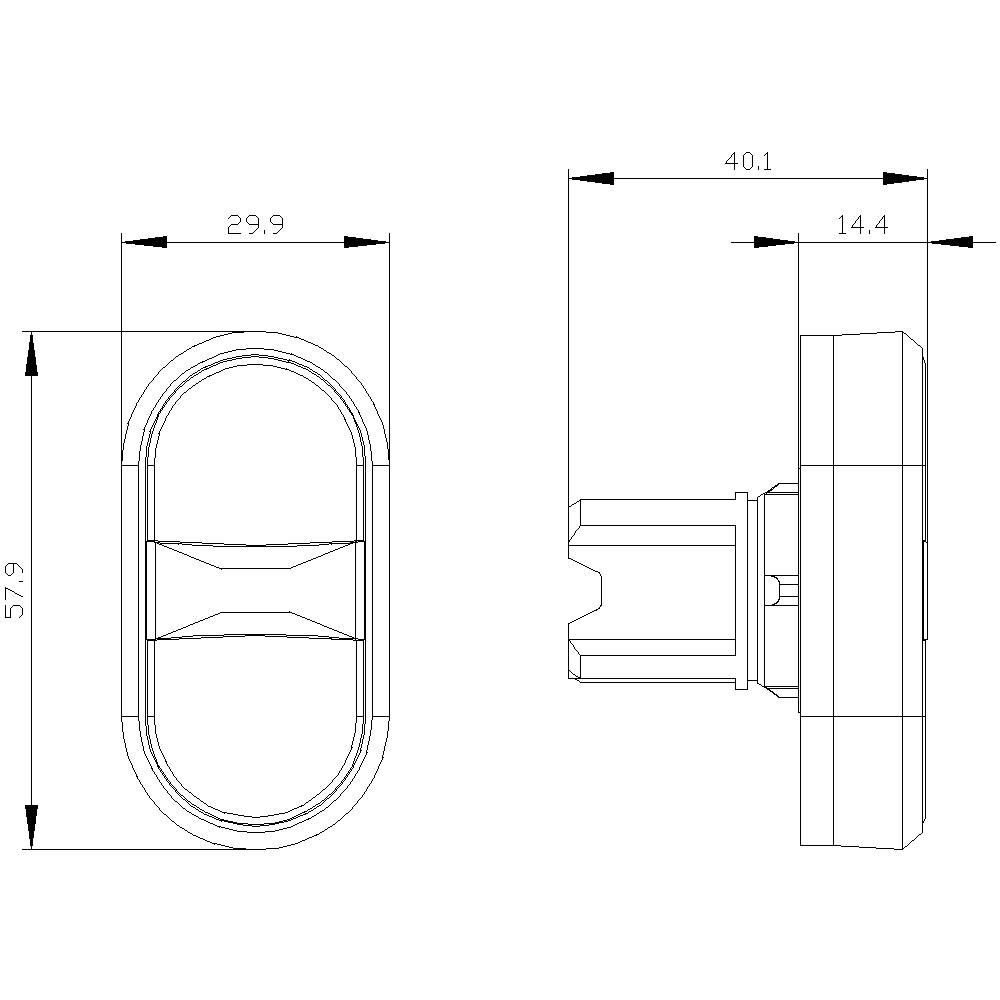

A technical drawing of an oval component with dimensions: 57.9 mm high, 29.9 mm wide, and 40.1 mm deep with a detail view on the right.

1/3

Image similar

Packaging type

Piece

Product type

Double head pushbutton

Lighting type

None

Width

29.8 mm

Recess diameter

22.3 mm

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Weight 27 g

Packaging type: Piece

Product type: Double head pushbutton

Switch/button features: planar

Casing/button colour: White

Functions: momentary

Type: Activation/message element

Lighting type: None

Material: Plastic

Min. temperature: -25 °C

Shape: Oval

Max. temperature: +70 °C

Length: 57.7 mm

Width: 29.8 mm

Height: 57.7 mm

Recess length: 57.9 mm

Durability: 2000000

Recess diameter: 22.3 mm

Recess depth: 25.7 mm

Recess width: 29.9 mm

: IP66
IP67
IP69/IP69K

Content: 1 pc(s)

Dim: (L x W x H) 57.7 x 29.8 x 57.7 mm

RoHS-compliant: Yes

Type: 3SU1000-3AB66-0AA0

: 22.3 mm

: White

: FALSE

: 1

: FALSE

: FALSE

: Black

: Other

: FALSE

: Plastic

: TRUE

: Oval

: FALSE

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1705456 Siemens 3SU10003AB660AA0 3SU1000-3AB66-0AA0 Double head pushbutton momentary (L x W x H) 57.7 x 29.8 x 57.7 mm IP66, IP6

User & Safety Instructions

User & Safety Instructions 1705456 Siemens 3SU10003AB660AA0 3SU1000-3AB66-0AA0 Double head pushbutton momentary (L x W x H) 57.7 x 29.8 x 57.7 mm IP66, IP6

Information

Information 1705456 Siemens 3SU10003AB660AA0 3SU1000-3AB66-0AA0 Double head pushbutton momentary (L x W x H) 57.7 x 29.8 x 57.7 mm IP66, IP6

Description

circuit breaker 3VA1 IEC frame 160 breaking capacity class S Icu=36kA @ 415 V 3-pole, line protection TM240, ATAM, In=125A overload protection ir=87,5A ...125A short circuit protection iI=5...10 x In busbar connection
