Buy Siemens 3SU10010DB500AA0 3SU1001-0DB50-0AA0 Illuminated push button momentary (Ø x H) 29.5 mm x 29.5 mm IP66, IP67, IP69

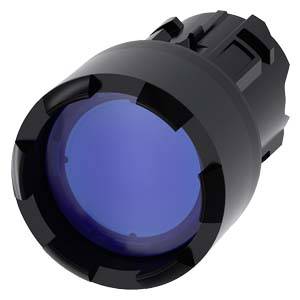

Black cylindrical button with a blue, domed centre, likely an electronic component or switch cap.

Image similar

A modern cable car station with an orange gondola ready for departure. In the foreground, a control panel with emergency buttons.

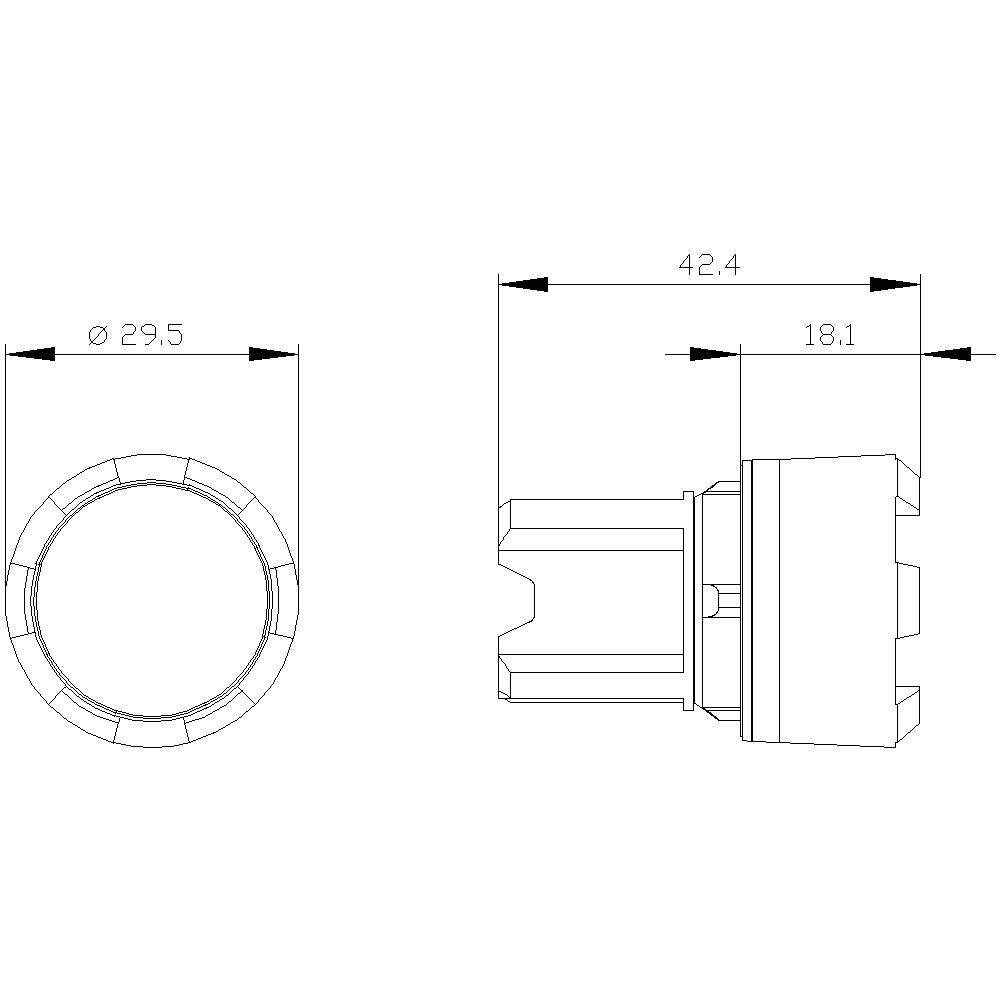

'Technical drawing of a cylindrical component with dimensions: diameter 29.5 mm, length 42.4 mm, side length 18.1 mm.'

1/3

Image similar

Packaging type

Piece

Product type

Illuminated push button

Lighting type

LED

Width

29.5 mm

Recess diameter

22.3 mm

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 25.20 / piece)

€ 25.20

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Weight: 21 g

Packaging type: Piece

Product type: Illuminated push button

Switch/button features: Front ring (PVC)

Casing/button colour: Blue

Functions: momentary

Type: Activation/message element

Lighting type: LED

Material: Plastic

Min. temperature: -25 °C

Shape: Round

Max. temperature: +70 °C

Width: 29.5 mm

Height: 29.5 mm

(Ø): 29.5 mm

Recess length: 18.1 mm

Durability: 3000000

Recess diameter: 22.3 mm

Recess depth: 24.3 mm

Recess width: 29.5 mm

: IP66
IP67
IP69/IP69K

Content: 1 pc(s)

Dim: (Ø x H) 29.5 mm x 29.5 mm

RoHS-compliant: Yes

Type: 3SU1001-0DB50-0AA0

: 22.3 mm

: Blue

: TRUE

: 1

: FALSE

: FALSE

: Black

: Other

: FALSE

: Plastic

: TRUE

: Round

: FALSE

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1737814 Siemens 3SU10010DB500AA0 3SU1001-0DB50-0AA0 Illuminated push button momentary (Ø x H) 29.5 mm x 29.5 mm IP66, IP67, IP69

User & Safety Instructions

User & Safety Instructions 1737814 Siemens 3SU10010DB500AA0 3SU1001-0DB50-0AA0 Illuminated push button momentary (Ø x H) 29.5 mm x 29.5 mm IP66, IP67, IP69

Information

Information 1737814 Siemens 3SU10010DB500AA0 3SU1001-0DB50-0AA0 Illuminated push button momentary (Ø x H) 29.5 mm x 29.5 mm IP66, IP67, IP69

Description

Selector switch, illuminable, 22 mm, round, plastic, blue, selector switch, short, 3 switch positions IOII, momentary contact on the left, latching on the right, actuating angle 2x45°, 10:30h/12h/13:30h
