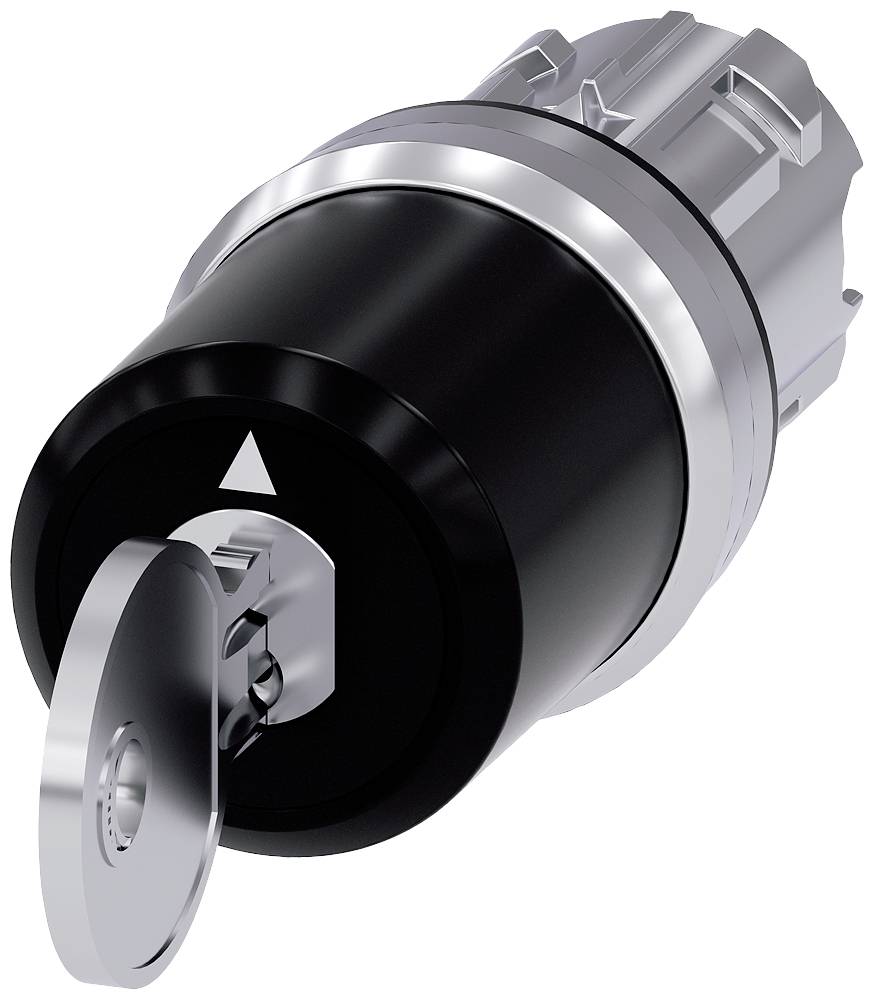

Siemens 3SU10505PL110AA0 3SU1050-5PL11-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)
EAN:
Part number:
Item no:
Functions
latch
IP rating
IP66
IP67
IP69/IP69K
Product type
Key switch
Casing/button colour
Silver
Switching angle
2 x 45 °
Datasheet (PDF)

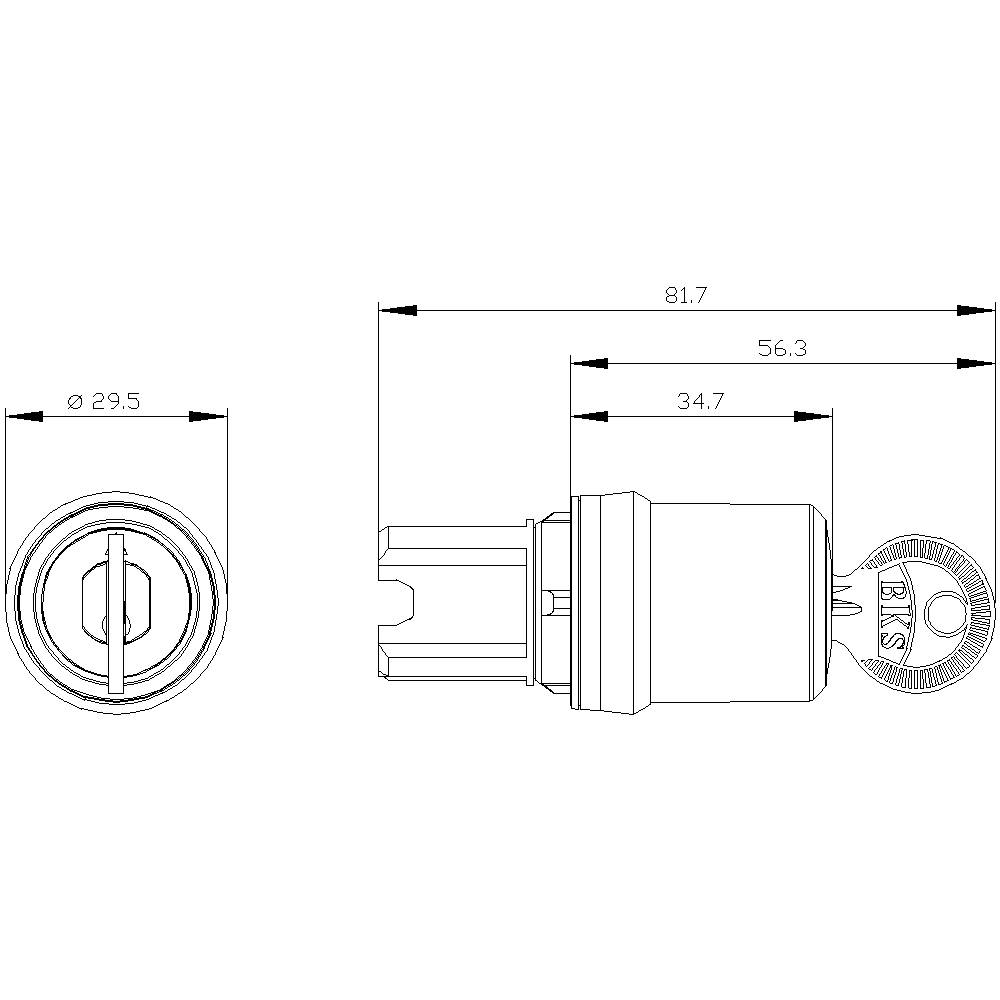

Technical specifications
- The number of positions: 3
- Number of key included: 2
- Mounting height 56.3 mm
- Mounting depth 25.4 mm
- Casing/button colour
Silver
- Functions
latch
- Switching angle
2 x 45 °
- Material
Metal
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
29.5 mm
- Height
29.5 mm
- (Ø)
29.5 mm
- Durability
300000
- Shape
Round
- Recess diameter
22.3 mm
IP66
IP67
IP69/IP69K
- Type
3SU1050-5PL11-0AA0
- Content
1 pc(s)
- Dim
(Ø x H) 29.5 mm x 29.5 mm
- RoHS-compliant
Yes
22.3 mm
3
FALSE
FALSE
Other
IP67/IP69K
29.5 mm
56.3 mm
Metal
TRUE
Rectangular
Other
Silver
TRUE
- Product type
Key switch
Documents & Downloads
Datasheet
Datasheet 1740798 Siemens 3SU10505PL110AA0 3SU1050-5PL11-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1740798 Siemens 3SU10505PL110AA0 3SU1050-5PL11-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)
Information
Information 1740798 Siemens 3SU10505PL110AA0 3SU1050-5PL11-0AA0 Key switch 2 x 45 ° IP66, IP67, IP69/IP69K 1 pc(s)
Description
LED module with integrated LED 6-24V AC/DC yellow, spring-type terminal, for floor mounting
