Buy Siemens 3SU10503AB660AL0 3SU1050-3AB66-0AL0 Double head pushbutton momentary (L x W x H) 57.9 x 29.9 x 57.9 mm IP66, IP6

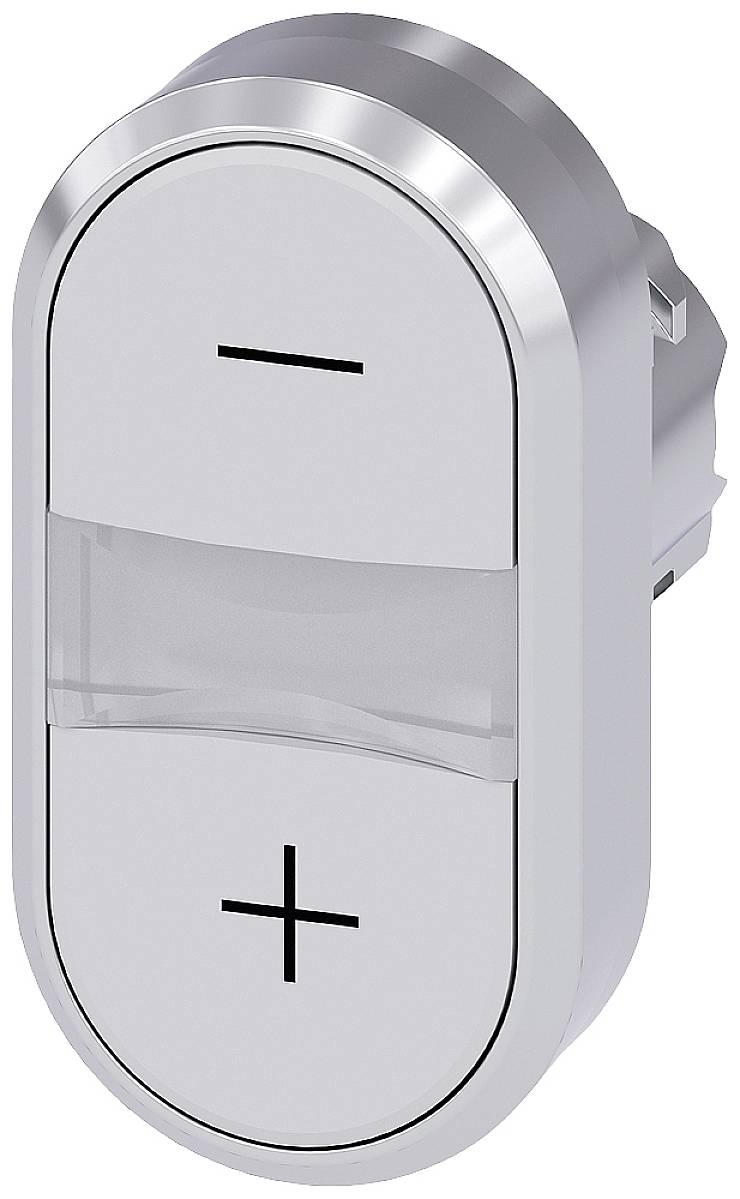

Silver toggle switch with '+' and '-' symbols, suitable for controlling volume or brightness.

Image similar

Cable car station with an orange gondola, mountain view through glass wall. Control panel with red and yellow buttons in the foreground.

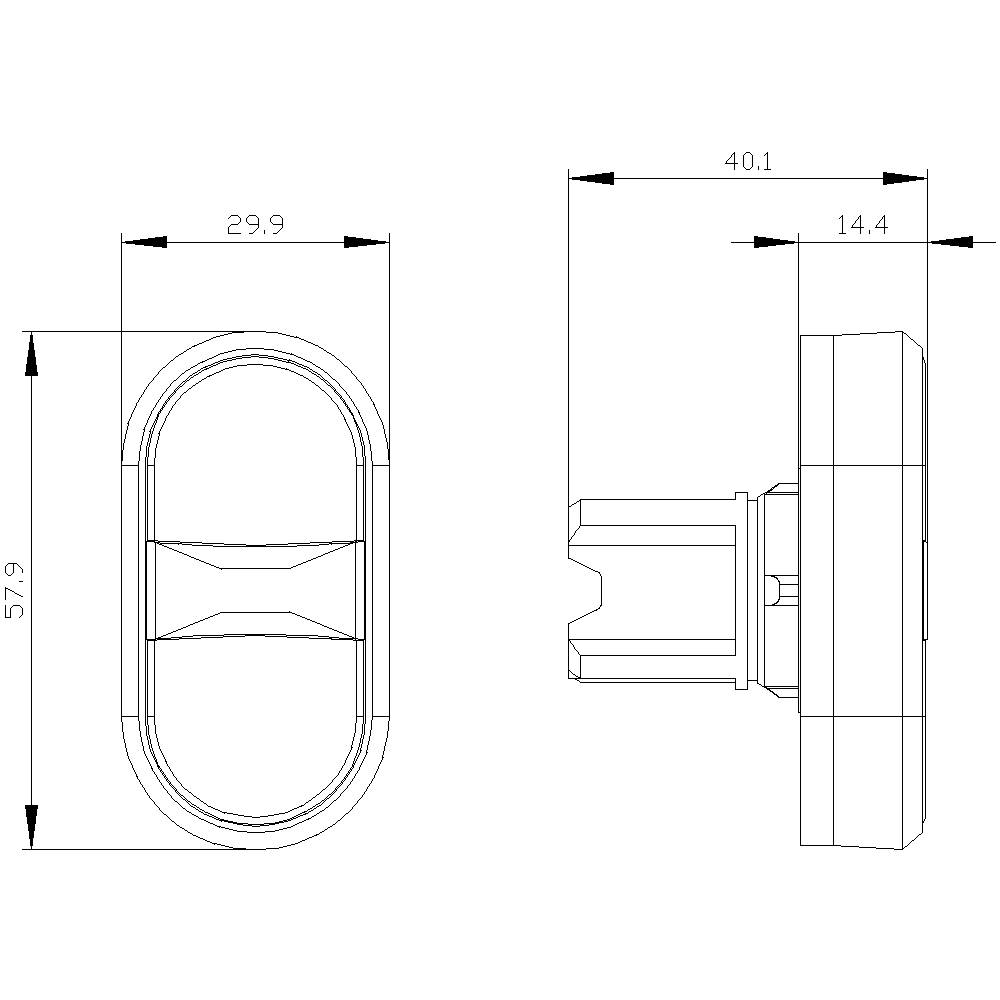

The technical drawing shows the side and front view of an oval object measuring 57.9 x 29.9 mm, with a depth of 40.1 mm and a usable length of 14.4 mm.

1/3

Image similar

Packaging type

Piece

Product type

Double head pushbutton

Lighting type

None

Width

29.9 mm

Recess diameter

22.3 mm

Datasheet (PDF)

Dispatches on Thu, 23 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 15.12 / piece)

€ 15.12

plus VAT.

Report legal concerns

Technical specifications

Weight 67 g

Packaging type: Piece

Product type: Double head pushbutton

Switch/button features: + anti-twist safeguard
writable
planar
Glossy
illuminable

Casing/button colour: White

Functions: momentary

Type: Activation/message element

Lighting type: None

Material: Plastic
Metal

Min. temperature: -25 °C

Shape: Oval

Max. temperature: +70 °C

Length: 57.9 mm

Width: 29.9 mm

Height: 57.9 mm

Recess length: 57.9 mm

Durability: 2000000

Recess diameter: 22.3 mm

Recess depth: 25.7 mm

Recess width: 29.9 mm

Front panel cut-out: 22 mm

: IP66
IP67
IP69/IP69K

Content: 1 pc(s)

Dim: (L x W x H) 57.9 x 29.9 x 57.9 mm

RoHS-compliant: Yes

Type: 3SU1050-3AB66-0AL0

: 22.3 mm

: White

: FALSE

: 1

: FALSE

: TRUE

: Chrome

: Other

: FALSE

: Metal

: TRUE

: Oval

: FALSE

: Other

UKCA: yes
