Buy Siemens 3SU10510BB300AA0 3SU1051-0BB30-0AA0 Illuminated push button momentary Yellow (Ø x H) 29.5 mm x 29.5 mm IP66, IP6

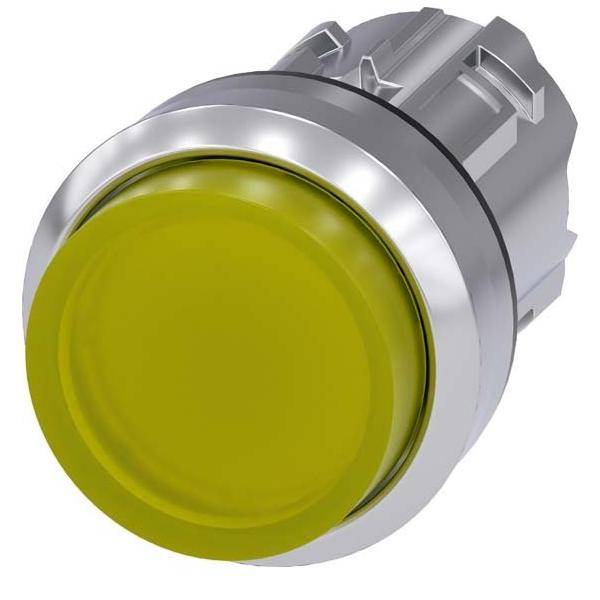

A round, yellow push button with a silver frame, commonly used for industrial controls or electronic devices.

Image similar

A cable car station in the mountains. An orange cabin is in the background on the left side. A control panel is located on the right.

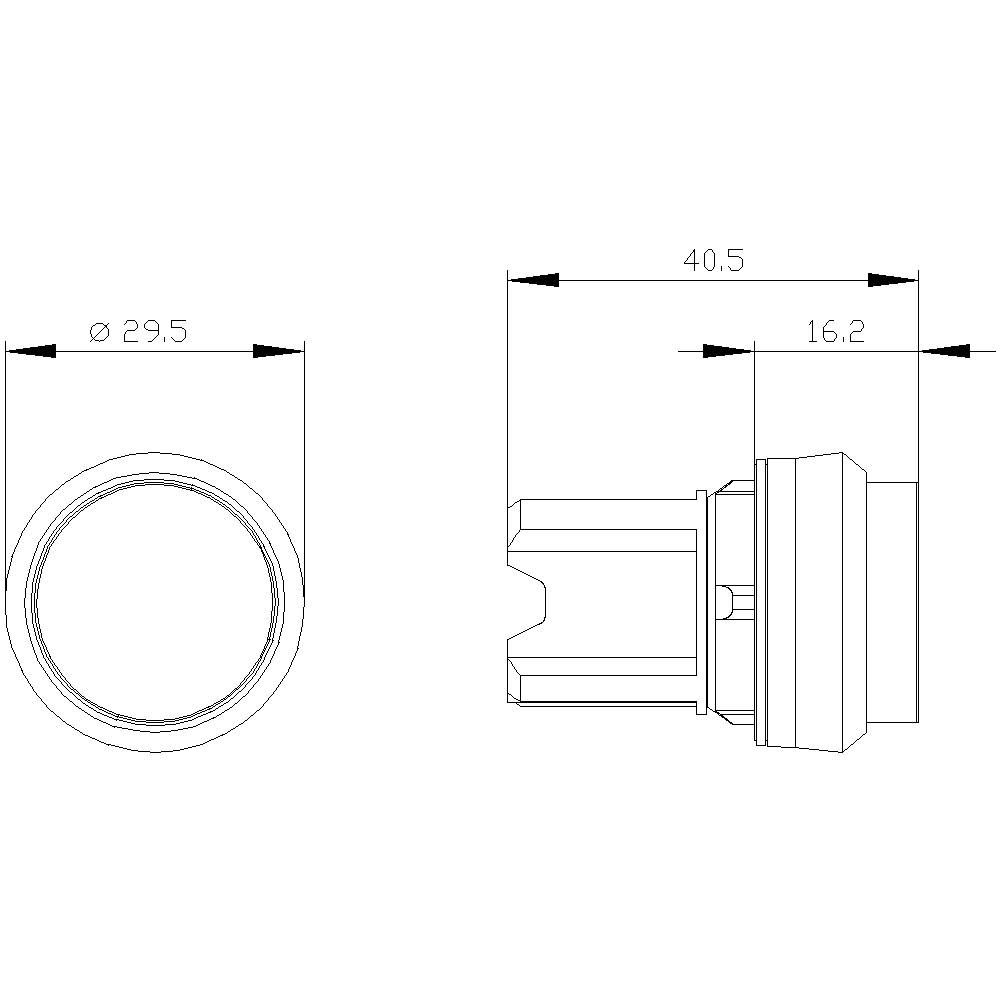

Technical drawing of a cylindrical part with a diameter of 29.5 mm and length of 40.5 mm. Contains detailed dimensions.

1/3

Image similar

Packaging type

Single

Product type

Illuminated push button

Lighting type

LED

Width

29.5 mm

Recess diameter

22.3 mm

Datasheet (PDF)

Dispatches on Mon, 12 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Weight: 41 g

Packaging type: Single

Product type: Illuminated push button

Switch/button features: illuminable

Casing/button colour: Yellow

Functions: momentary

Type: Activation/message element

Lighting type: LED

Colour: Yellow

Material: Plastic
Metal

Min. temperature: -25 °C

Shape: Round

Max. temperature: +70 °C

Width: 29.5 mm

Height: 29.5 mm

(Ø): 29.5 mm

Recess length: 16.2 mm

Durability: 3000000

Recess diameter: 22.3 mm

Recess depth: 24.3 mm

Recess width: 29.5 mm

Front panel cut-out: 22 mm

: IP66
IP67
IP69/IP69K

Content: 1 pc(s)

Dim: (Ø x H) 29.5 mm x 29.5 mm

RoHS-compliant: Yes

Type: 3SU1051-0BB30-0AA0

: 22.3 mm

: Yellow

: TRUE

: 1

: FALSE

: FALSE

: Chrome

: Other

: FALSE

: Metal

: TRUE

: Round

: FALSE

: Other

UKCA: yes
