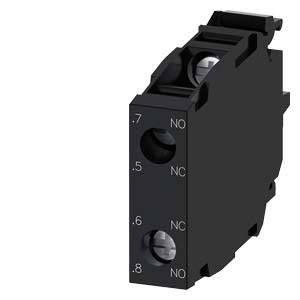

A black electrical switch contact with labels '.7 NO', '.5 NC', '.6 NC' and '.8 NO' on the front.

Image similar

A black electrical switch contact with labels '.7 NO', '.5 NC', '.6 NC' and '.8 NO' on the front.

An empty cable car cabin inside a station's interior. In the foreground, colourful control buttons are positioned on a panel.

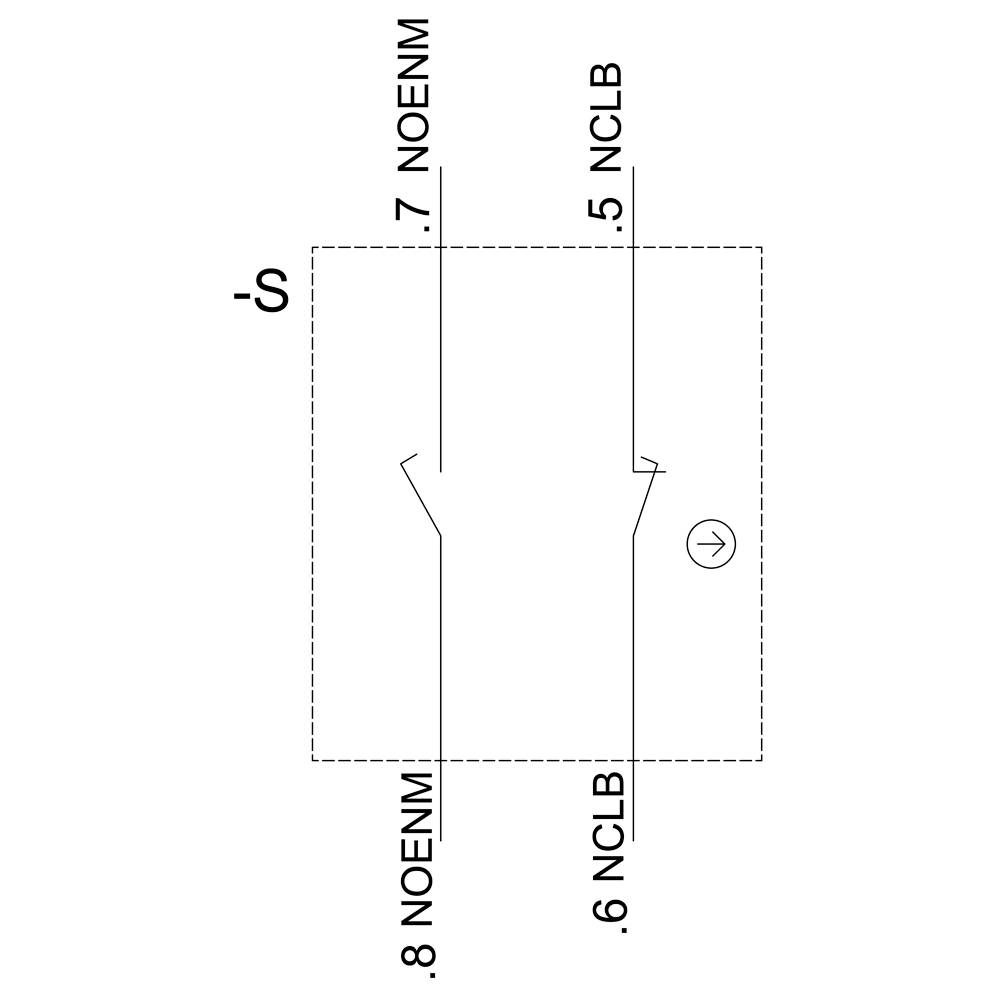

'Diagram of a technical drawing with dimensions: 0.7 and 0.8 NOENM, 0.5 and 0.6 NCLB. Arrow points to the right.'

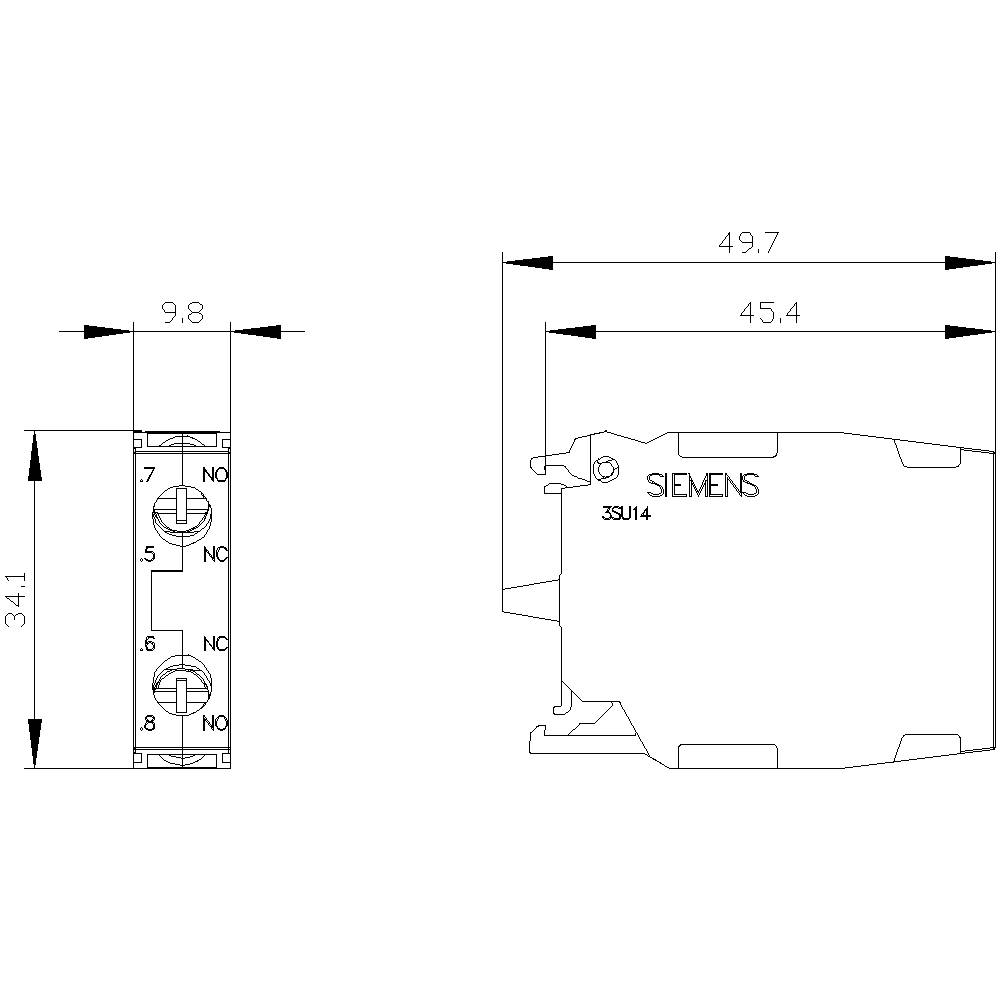

Technical drawing of a Siemens device. Dimensions: Width 45.4 mm, Height 34.1 mm, Depth 9.8 mm. Side view shows connections.

1/4

Image similar

Siemens

Our service for you

Datasheet (PDF)

Deutsch (Deutschland)

Dispatches on Wed, 15 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.88 / piece)

€ 26.88

plus VAT.

Report legal concerns

Technical specifications

Isolation voltage: 500 V
Switching frequency: 3600 1/h.
Operating voltage: 5 V, -500 V
Operating current: 10 A
Type of connectable conductor cross-sections, and single-core with wire finishing: 2 x (0.5 mm² - 0.75 mm²)
Type of connectable conductor cross-sections for AWG-wires: 2x (18-14)

Packaging type: Piece

Product type: Contact module

Switch/button features: leading

Connection: Screws

Type: With 2 contacts

Functions: Contact

Contact type: 1 breaker
1 maker

Contact material: Gold plated contacts

Switching current (max.): 10 A

: IP20
IP40

Dielectric strength: 6 kV

Width: 9.8 mm

Height: 34 mm

Durability: 1000 0000

Electrical lifespan: 1000 0000

Mounting type: Front panel fixed

Content: 1 pc(s)

Dim: (W x H x D) 9.8 x 34 x 49.7 mm

RoHS-compliant: Yes

Weight: 18 g

Depth: 49.7 mm

Type: 3SU1400-1AA10-1RA0

: Front fastening

: 4 A

: Screw connection

: 0

: 1

: 1

: 0
