Siemens 3SU1400-1AA10-3MA0 Contact module for front mounting 1 breaker Contact 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Isolation voltage: 500 V
- Switching frequency: 3600 1/h.
- Operating voltage: 5 V, -500 V
- Operating current: 10 A
- Type of connectable conductor cross-sections for AWG-wires: 2 x (24-16).
- Packaging type
Piece
- Product type
Contact module
- Switch/button features
for front mounting
- Connection
Spring-loaded connector
- Type
With 1 contact
- Functions
Contact
- Contact type
1 breaker
- Contact material
Gold plated contacts

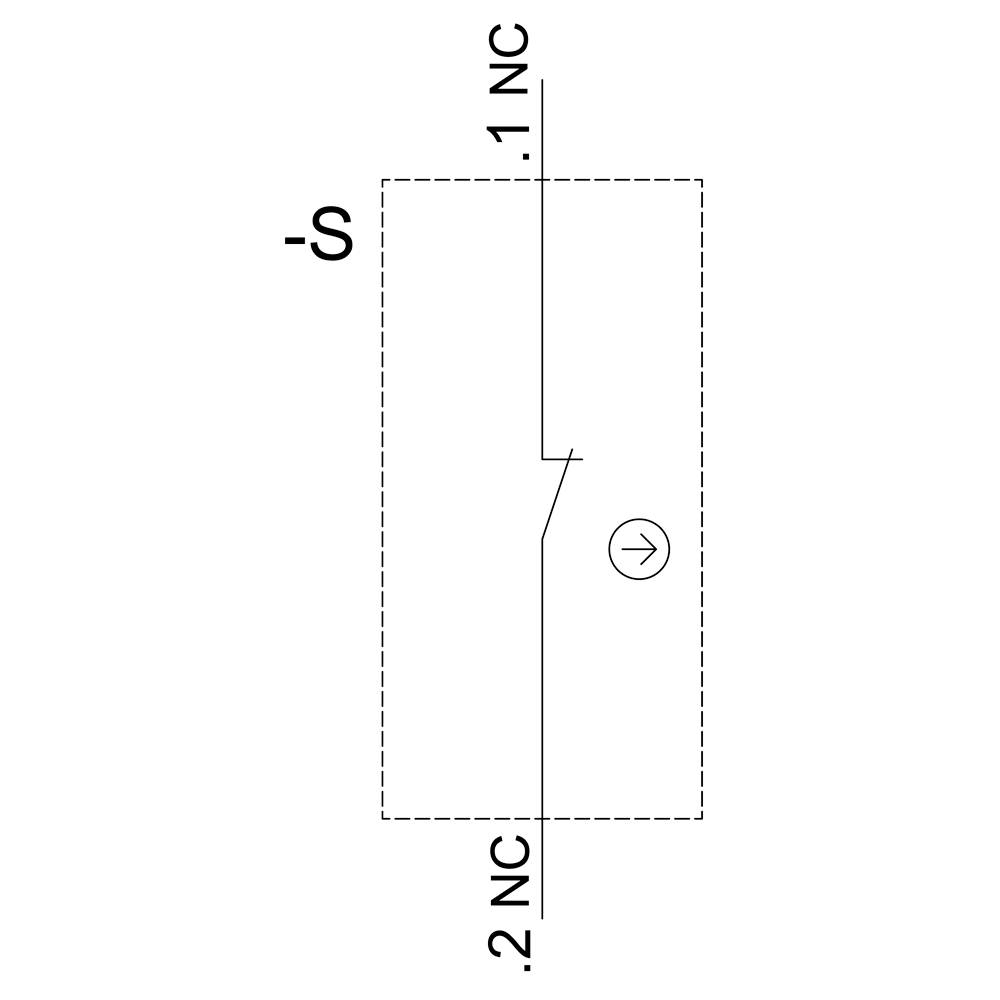

- Switch position
1 NC
- Switching current (max.)
10 A
IP20
IP40
- Dielectric strength
6 kV
- Width
9.8 mm
- Height
36 mm
- Durability
1000 0000
- Electrical lifespan
1000 0000
- Mounting type
Front panel fixed
- Content
1 pc(s)

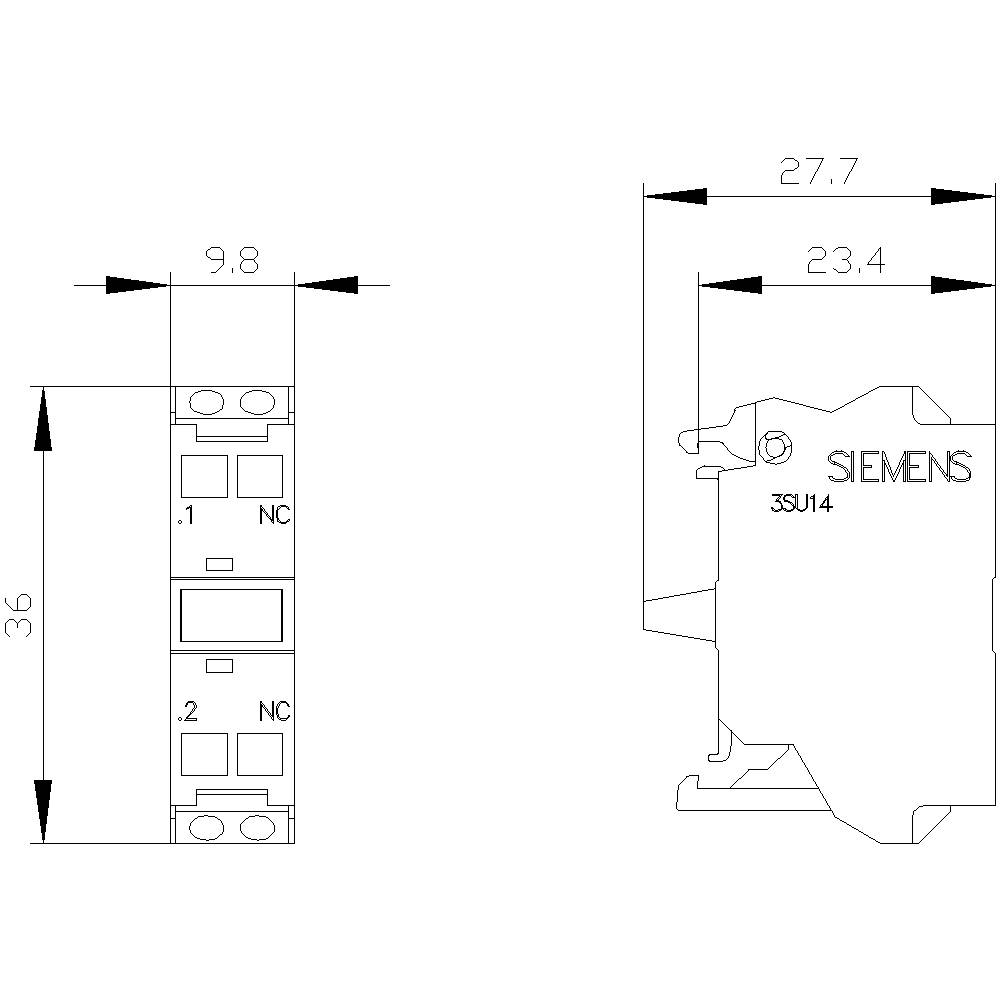

- Dim
(W x H x D) 9.8 x 36 x 27.7 mm
- RoHS-compliant
Yes
- Weight
10 g
- Depth
27.7 mm
- Type
3SU1400-1AA10-3MA0
Front fastening
6 A
Spring clamp connection
0
1
0
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1702678 Siemens 3SU1400-1AA10-3MA0 Contact module for front mounting 1 breaker Contact 1 pc(s) Piece
Datasheet 1702678 Siemens 3SU1400-1AA10-3MA0 Contact module for front mounting 1 breaker Contact 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1702678 Siemens 3SU1400-1AA10-3MA0 Contact module for front mounting 1 breaker Contact 1 pc(s) Piece
Information
Information 1702678 Siemens 3SU1400-1AA10-3MA0 Contact module for front mounting 1 breaker Contact 1 pc(s) Piece
Description
Key-operated switch CES with key monitoring, 22 mm, round, plastic, lock number SSG10 with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, Key removal O
