Buy Siemens 3SU1400-1CK10-1AA0 LED module + anti-twist safeguard 240 V DC/AC 1 pc(s) Piece

Black electrical device with blue cable at the bottom, two round buttons and a clamp on top. Used for electrical current control.

Image similar

Cable car station in the mountains with a waiting cable car. Control panel in the foreground, large windows offering a view of the surrounding landscape.

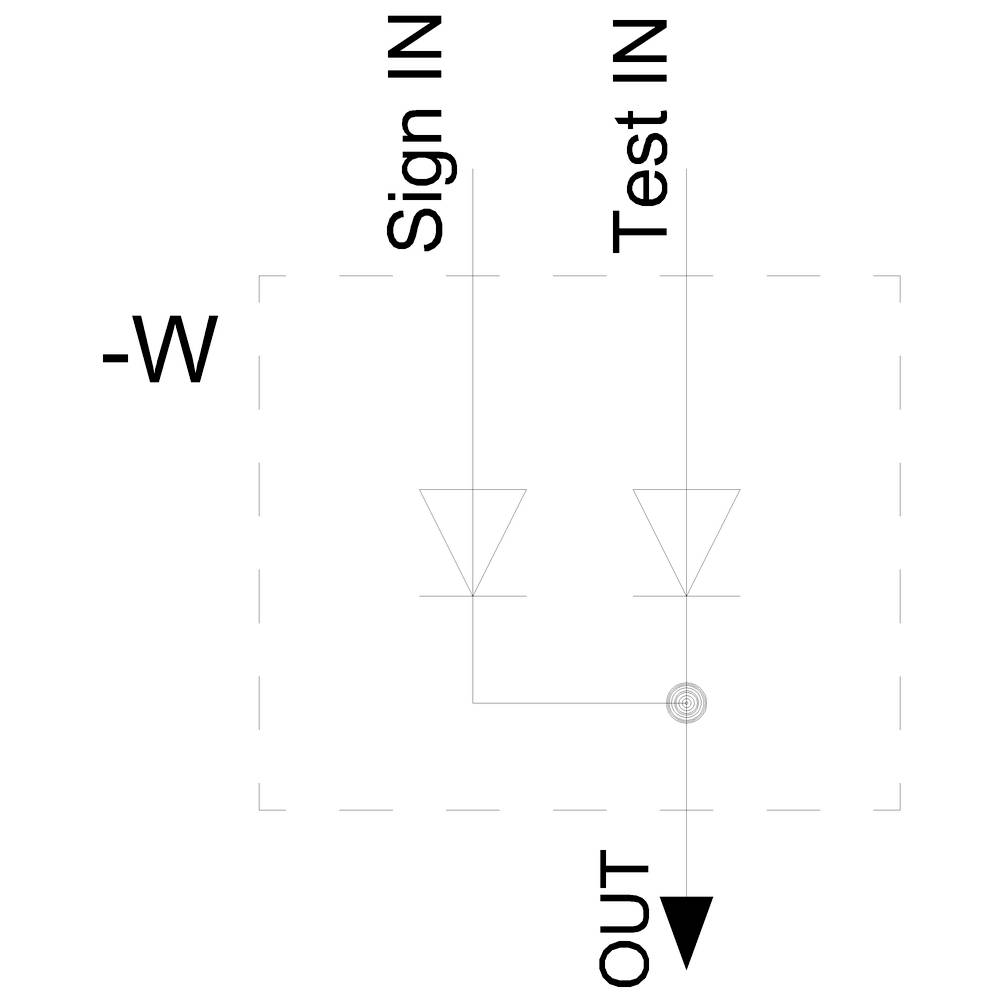

Circuit symbol with two diodes: 'Sign IN', 'Test IN' lead in, 'OUT' leads out, marked with black triangular arrow.

Technical drawing of a Siemens temperature sensor with dimensions. Left: Total length 136.7 mm. Top: Width 23.4 mm and height 25 mm.

1/4

Image similar

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

2 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 18.66 / piece)

€ 18.66

plus VAT.

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product component / diode: Yes
Vibration resistance: 10 ... 500 Hz: 5g
Tightening torque / with screw connection / minimum: 0.8 Nm
Tightening torque / for screw connection / maximum: 0.9 Nm
Type of connectable wire cross-sections / for AWG lines: 2x (18 ... 14)
Type of connectable wire cross-sections / single wire / with wire-end processing: 2x (0.5 ... 0.75 mm²
Type of connectable wire cross-sections / single wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
Type of connectable wire cross-sections / fine wire / with wire-end processing: 2x (0.5 ... 1.5 mm²
Type of connectable wire cross-sections / fine wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
Maximum switch-on current 3 A.
Insulation voltage 320 V
Pollution level 3

Depth: 25 mm

Height: 36 mm

Width: 9.8 mm

: IP20
IP40

Connection: Screws

Packaging type: Piece

Switch/button features: + anti-twist safeguard

Mounting type: Front panel fixed

Switching voltage: 240 V DC/AC

Dielectric strength: 4 kV

Electrical lifespan: 100000

Max. temperature: +70 °C

Min. temperature: -25 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2863923 Siemens 3SU1400-1CK10-1AA0 LED module + anti-twist safeguard 240 V DC/AC 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2863923 Siemens 3SU1400-1CK10-1AA0 LED module + anti-twist safeguard 240 V DC/AC 1 pc(s) Piece

Description

LED test module operating voltage6-240VAC/DC, screw connection, for front-panel mounting, for LED modules (6-24V AC/DC, 24V AC/DC, 24-240V AC/DC), 1x (L-)and2x (L+) LED testing module SIRIUS ACT for testing the functionality of up to 30 SIRIUS ACT LED modules.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: For floor mounting and for front-panel mounting.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.

This text is machine translated.

Hints

Please order bulbs separately.
