Buy Siemens 3SU1401-1BB24-1AA0 LED module illuminable Red , Yellow, Green 24 V DC/AC 1 pc(s)

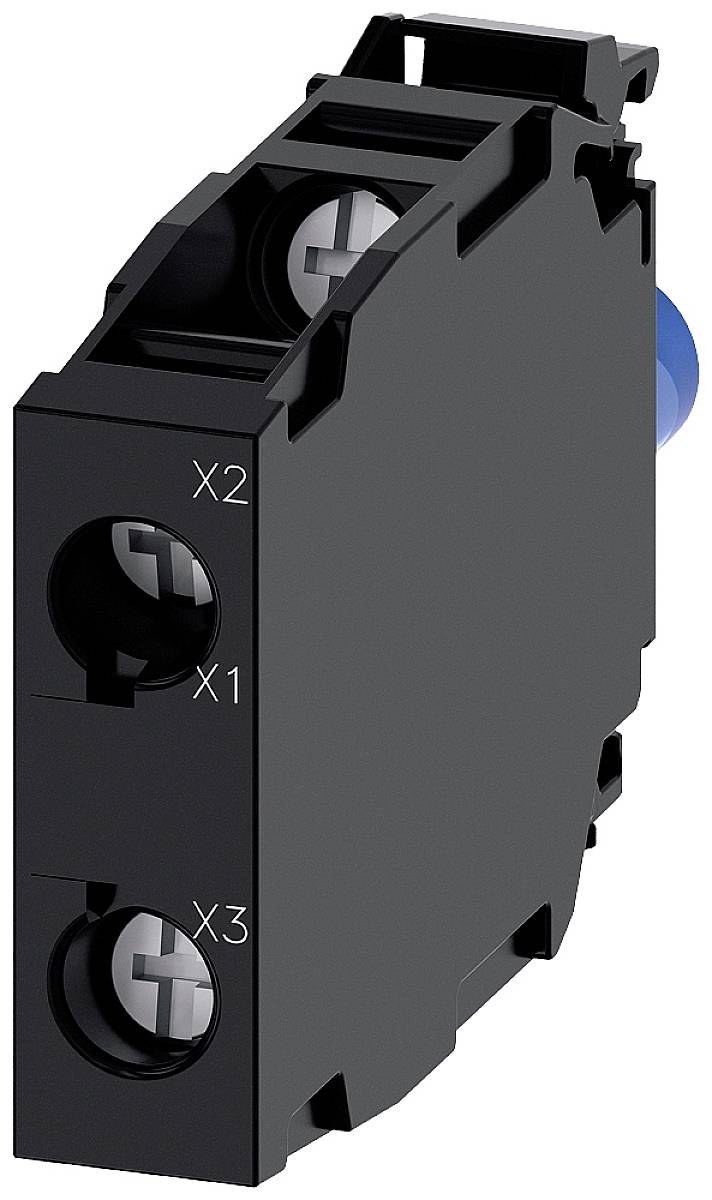

Black electronic component with blue elements and labels 'X1', 'X2', 'X3'. Possibly a connection module.

Image similar

Cable car station with an orange gondola, control panel in the foreground, mountains visible through the window.

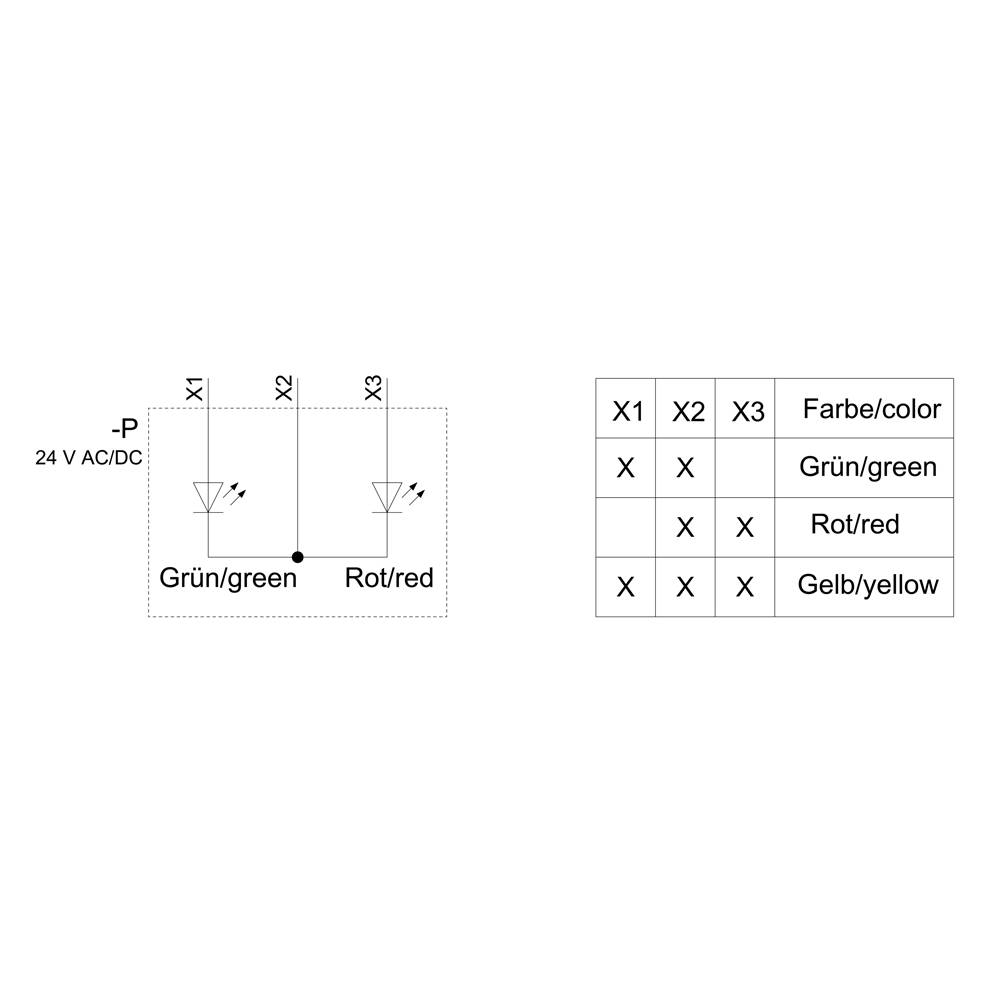

'Electrical Circuit Diagram': On the left, a diagram for 24 V AC/DC with green and red LED. On the right, a table with colours and corresponding circuit states.

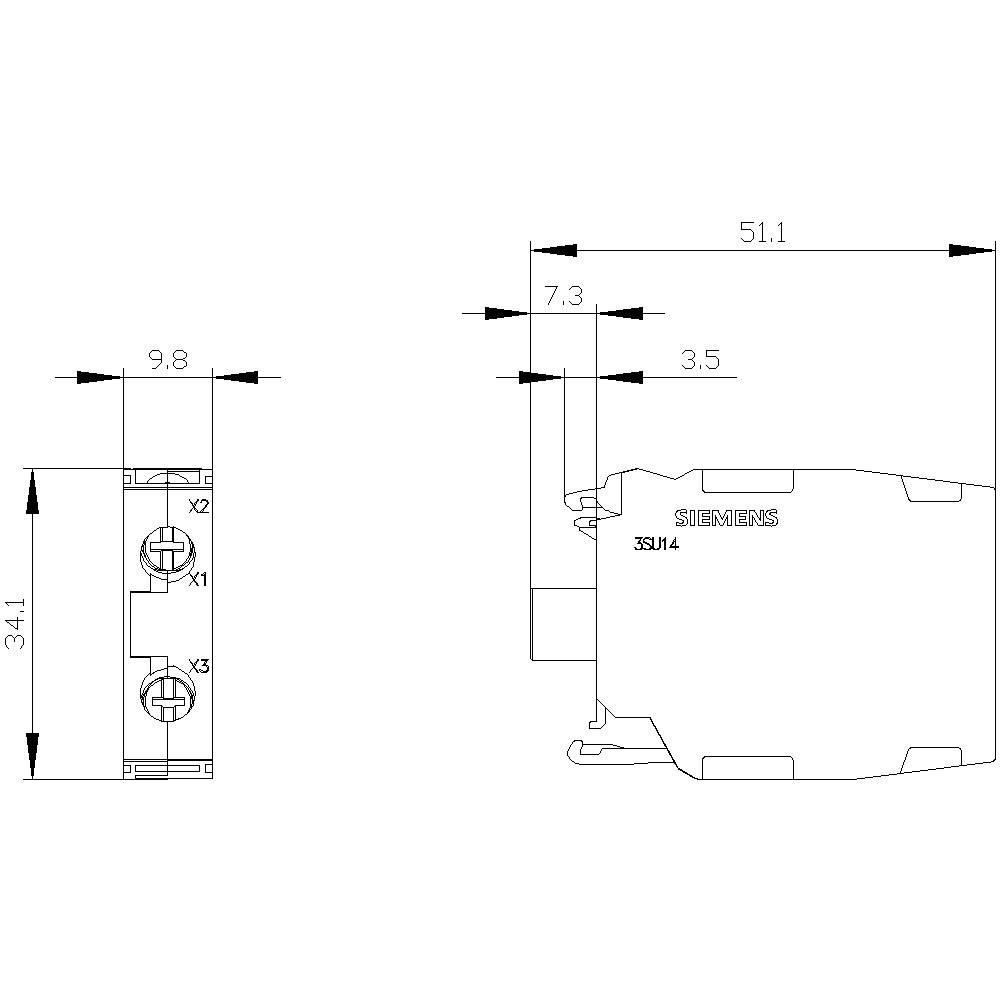

Technical drawing of a Siemens relay with dimensions: width 9.8 mm, height 34.1 mm, and depth 51.1 mm, with side connections X1, X2, X3.

1/4

Image similar

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

17 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 22.03 / piece)

€ 22.03

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type of connectable wire cross-sections / for AWG lines: 2x (18 ... 14)
Type of connectable wire cross-sections / single wire / with wire-end processing: 2x (0.5 ... 0.75 mm²
Type of connectable wire cross-sections / single wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
Type of connectable wire cross-sections / fine wire / with wire-end processing: 2x (0.5 ... 1.5 mm²
Type of connectable wire cross-sections / fine wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
Tightening torque at screw connection 0.8 - 0.9 Nm
Type of light bulb: LED
Switch-on current max. 2 A.
Insulation voltage 320 V
Diode: Yes

Product type: LED module

Switch/button features: illuminable

Connection: Screws

Colour: Red
Yellow
Green

Switching voltage: 24 V DC/AC

Switching current (max.): 25 mA

: IP20
IP40

Dielectric strength: 4 kV

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 9.8 mm

Height: 36 mm

Electrical lifespan: 100000

Mounting type: Front panel fixed

Content: 1 pc(s)

Dim: (W x H x D) 9.8 x 36 x 49.7 mm

RoHS-compliant: Yes

Depth: 49.7 mm

Type: 3SU1401-1BB24-1AA0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2863928 Siemens 3SU1401-1BB24-1AA0 LED module illuminable Red , Yellow, Green 24 V DC/AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2863928 Siemens 3SU1401-1BB24-1AA0 LED module illuminable Red , Yellow, Green 24 V DC/AC 1 pc(s)

Description

Traffic light LED module with integrated 24 V DC LED, red-yellow-green, screw connection, for front panel mounting SIRIUS ACT LED module for the illumination of the SIRIUS ACT commands and signaling devices with brilliant Leuchtkraft thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Several colors, different voltage variants, different connection and mounting types.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.

This text is machine translated.
