Buy Siemens 3SU1401-1BG60-3AA0 LED module + LED White 24 V DC/AC 1 pc(s)

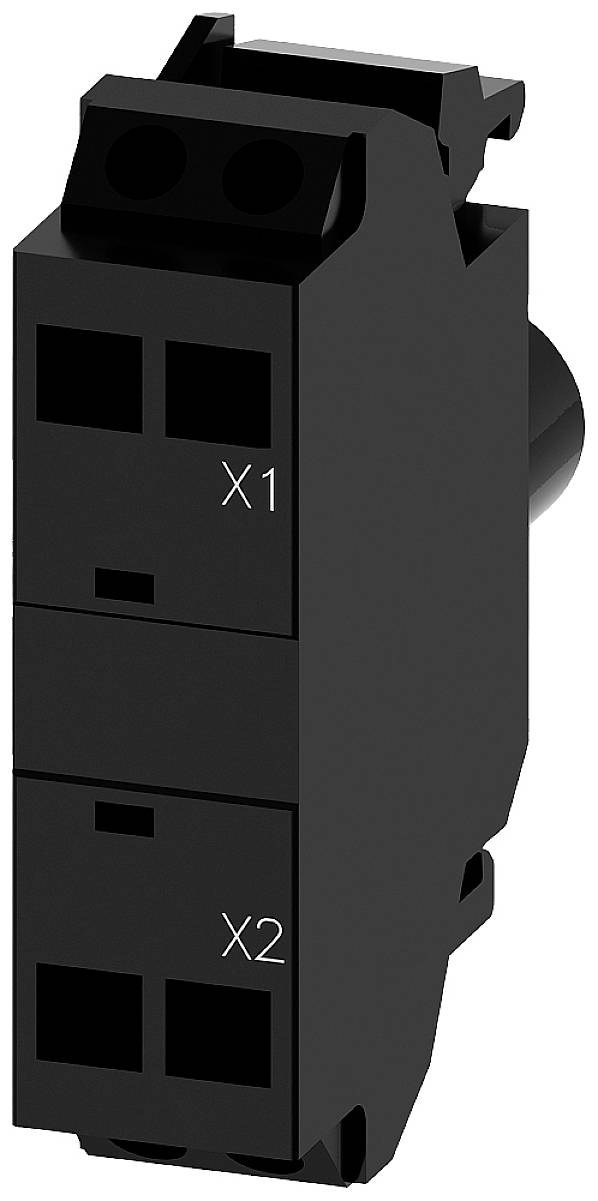

Black electrical block with two stacked connectors, marked as 'X1' and 'X2'.

Image similar

A cable car gondola at the station with a control panel in the foreground. The gondola is ready for departure in a mountainous environment.

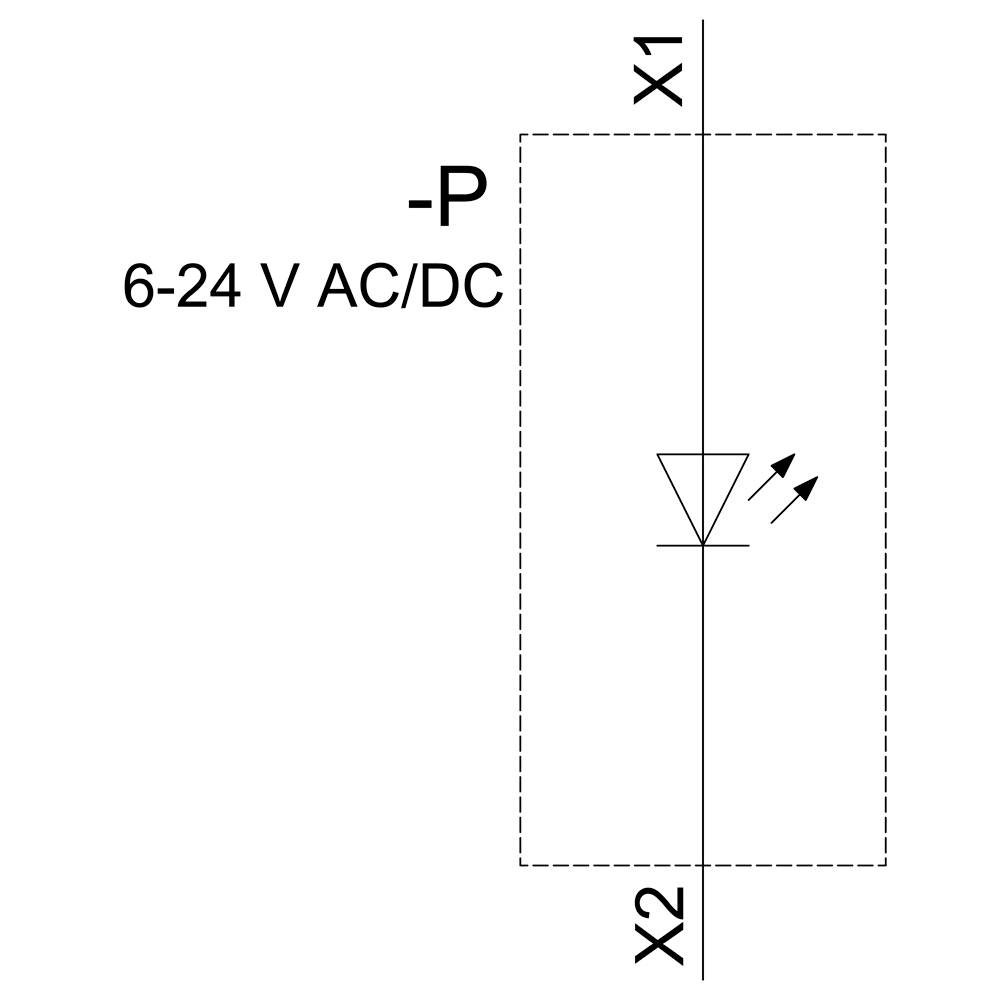

'Diagram of an electronic circuit shows LED symbol with voltage range of 6-24 V AC/DC. Connections marked with X1 and X2.'

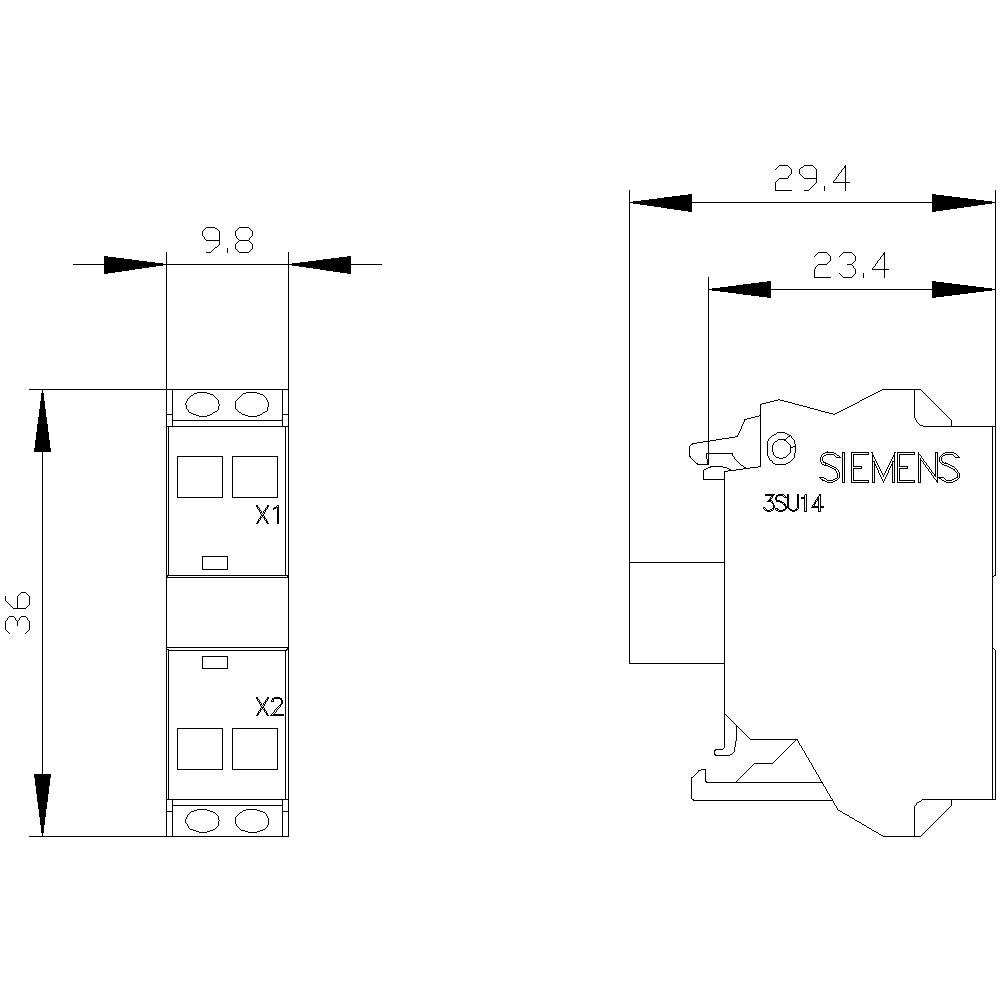

Technical drawing of an electrical component by Siemens with dimensions 9.8 x 36 mm. The labels 'X1', 'X2', and '3SU14' are visible.

1/4

Image similar

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

8 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 8.69 / piece)

€ 8.69

plus VAT.

Only 8 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Type of light bulb: LED
Product component / diode: Yes
Product component / bulb: Yes
Vibration resistance: 10 ... 500 Hz: 5g
Type of connectable wire cross-sections / for AWG lines: 2x (24 ... 16)
Type of connectable wire cross-sections / single wire / without wire-end processing: 2x (0.25 ... 1.5 mm²
Type of connectable wire cross-sections / fine wire / with wire-end processing: 2x (0.25 ... 0.75 mm²
Type of connectable wire cross-sections / fine wire / without wire-end processing: 2x (0.25 ... 1.5 mm²
Maximum switch-on current 2 A.
Insulation voltage 320 V
Minimum light intensity: 900 mcd
Maximum light intensity 1400 mcd
Pollution level 3

Product type: LED module

Switch/button features: + LED

Connection: Spring-loaded connector

Type: With integrated LED

Colour: White

Switching voltage: 24 V DC/AC

Switching current (max.): 30 mA

: IP20
IP40

Dielectric strength: 4 kV

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 9.8 mm

Height: 36 mm

Electrical lifespan: 100000

Mounting type: Front panel fixed

Content: 1 pc(s)

Dim: (W x H x D) 9.8 x 36 x 29.4 mm

RoHS-compliant: Yes

Depth: 29.4 mm

Type: 3SU1401-1BG60-3AA0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2863951 Siemens 3SU1401-1BG60-3AA0 LED module + LED White 24 V DC/AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2863951 Siemens 3SU1401-1BG60-3AA0 LED module + LED White 24 V DC/AC 1 pc(s)

Description

LED module with integrated LED AC/DC 6-24V white, spring-cage connection, for front panel mounting LED module SIRIUS ACT for lighting the command and signal devices SIRIUS ACT with brilliant Leuchtkraft thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Several colors, different voltage variants, different connection and mounting types.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.

This text is machine translated.
