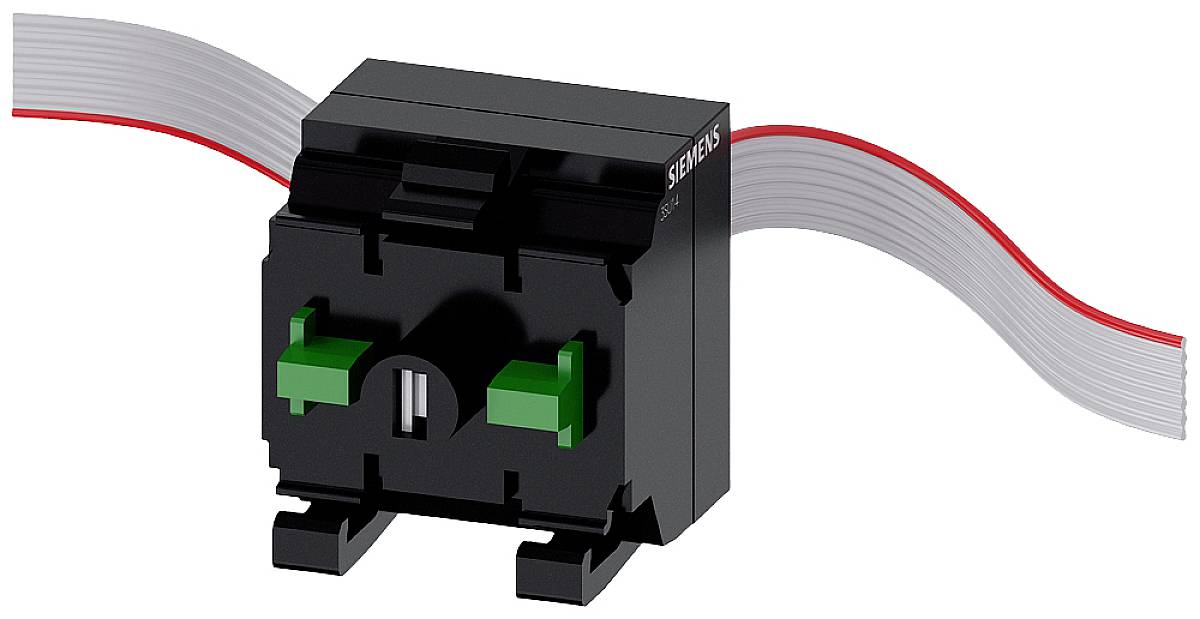

A black electronic component with two green terminals and a red cable.

Image similar

A black electronic component with two green terminals and a red cable.

A cable car gondola is situated in a modern, glass-fronted mountain station with a control panel in the foreground and mountains in the background.

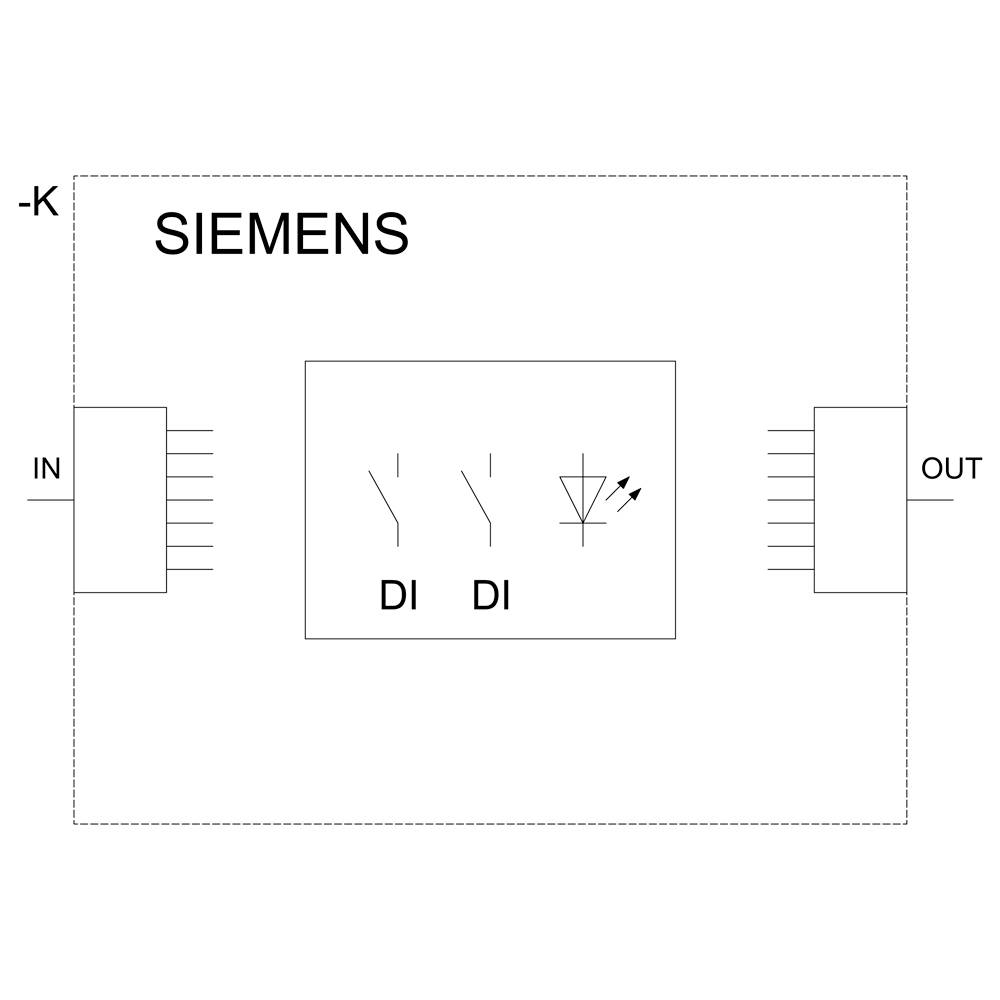

Block circuit diagram of a Siemens component with input and output connections. Contains symbols for two diodes and an LED indicator.

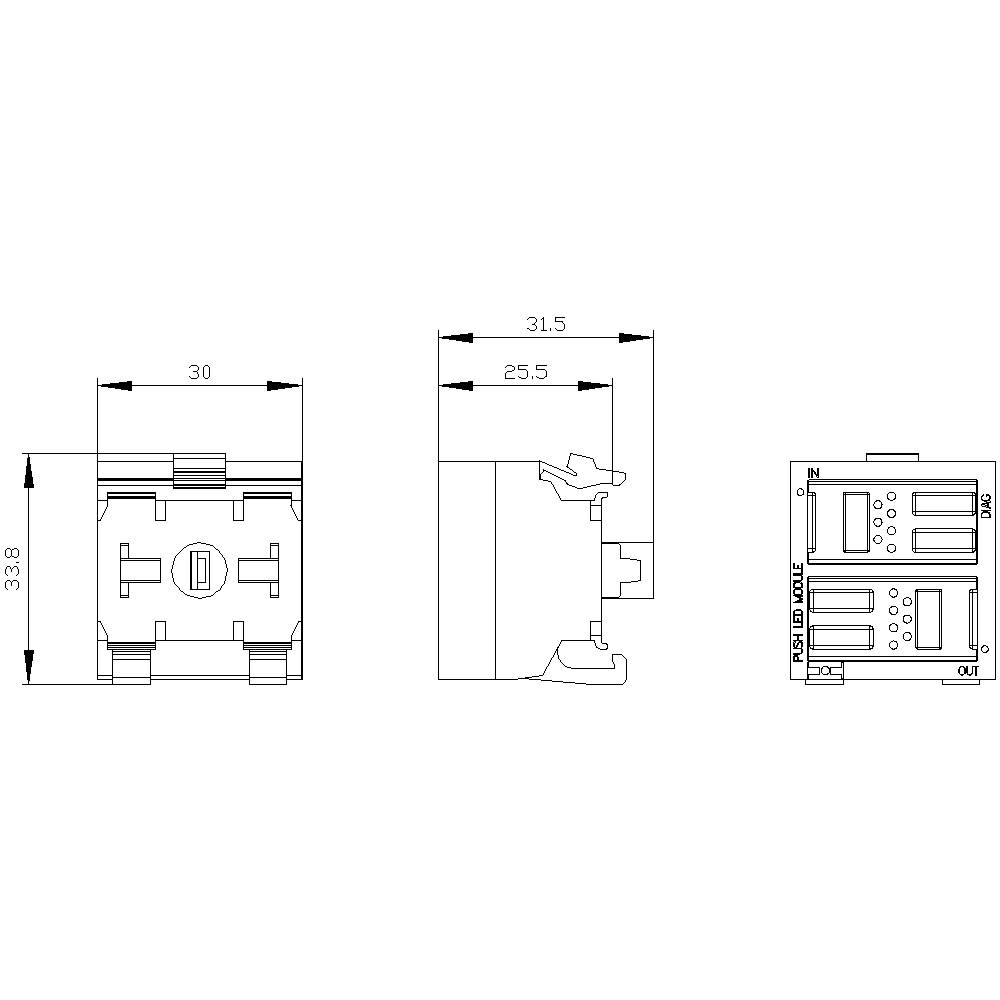

'Technical drawing of a rectangular electrical component with front, side, and top views. Dimensions: 30 x 33.8 mm.'

1/4

Image similar

Product type

Terminal module

IP rating

IP20

Connection

Cut & Clip connector

Min. temperature

-25 °C

Max. temperature

+60 °C

Datasheet (PDF)

Siemens

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 53.77 / piece)

€ 53.77

plus VAT.

Report legal concerns

Technical specifications

Mounting type: Snap-on mounting
Weight: 20g
The color of the light bulb: yellow
Power loss: 0,115 W

Product type: Terminal module

Connection: Cut & Clip connector

Min. temperature: -25 °C

Max. temperature: +60 °C

Length: 31.5 mm

Width: 30 mm

Height: 32.6 mm

: IP20

Type: 3SU1401-1MC30-1CA1

Content: 1 pc(s)

Dim: (L x W x H) 31.5 x 30 x 32.6 mm

RoHS-compliant: Yes

Type: With 2 contacts and integrated LED

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1742426 Siemens 3SU14011MC301CA1 3SU1401-1MC30-1CA1 Terminal module IP20 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1742426 Siemens 3SU14011MC301CA1 3SU1401-1MC30-1CA1 Terminal module IP20 1 pc(s)

Information

Information 1742426 Siemens 3SU14011MC301CA1 3SU1401-1MC30-1CA1 Terminal module IP20 1 pc(s)

Description

USB port, 22 mm, plastic with metal front ring, sand gray
