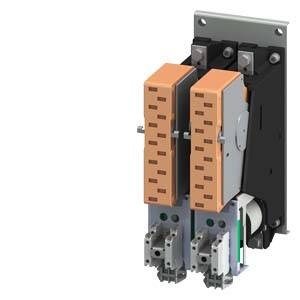

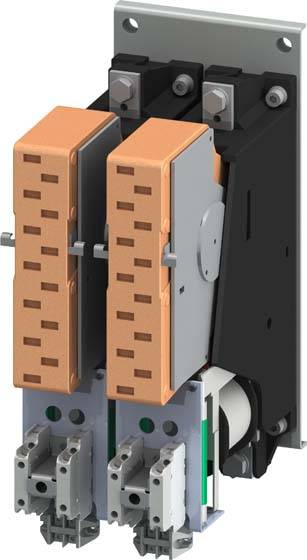

Siemens 3TC7814-0EF Contactor 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
2-pin
Connection
Screws
Type
3TC7814-0EF
Type
12
Datasheet (PDF)
Number
Total (€ 4,668.07 / piece)
€ 4,668.07
plus VAT.
14-day return policy included
Highlights & Details
STEEL CABLE 3.0MM (LENGTH 20M)
Our service for you
Technical specifications
- Operating power / at DC-3/at DC-5/at 750 V:250 kW
- Type of voltage: DC
- Isolation voltage: 1500 V
- Product type
Contactor
- Type
3TC7814-0EF
- Type
12
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
4 breakers
4 makers
- Permanent current (max.)
400 A
- Mounting type
Screw-fit
- Connection
Screws
- Durability
3000 0000
IP00
- Min. temperature
-25 °C
- Max. temperature
+55 °C

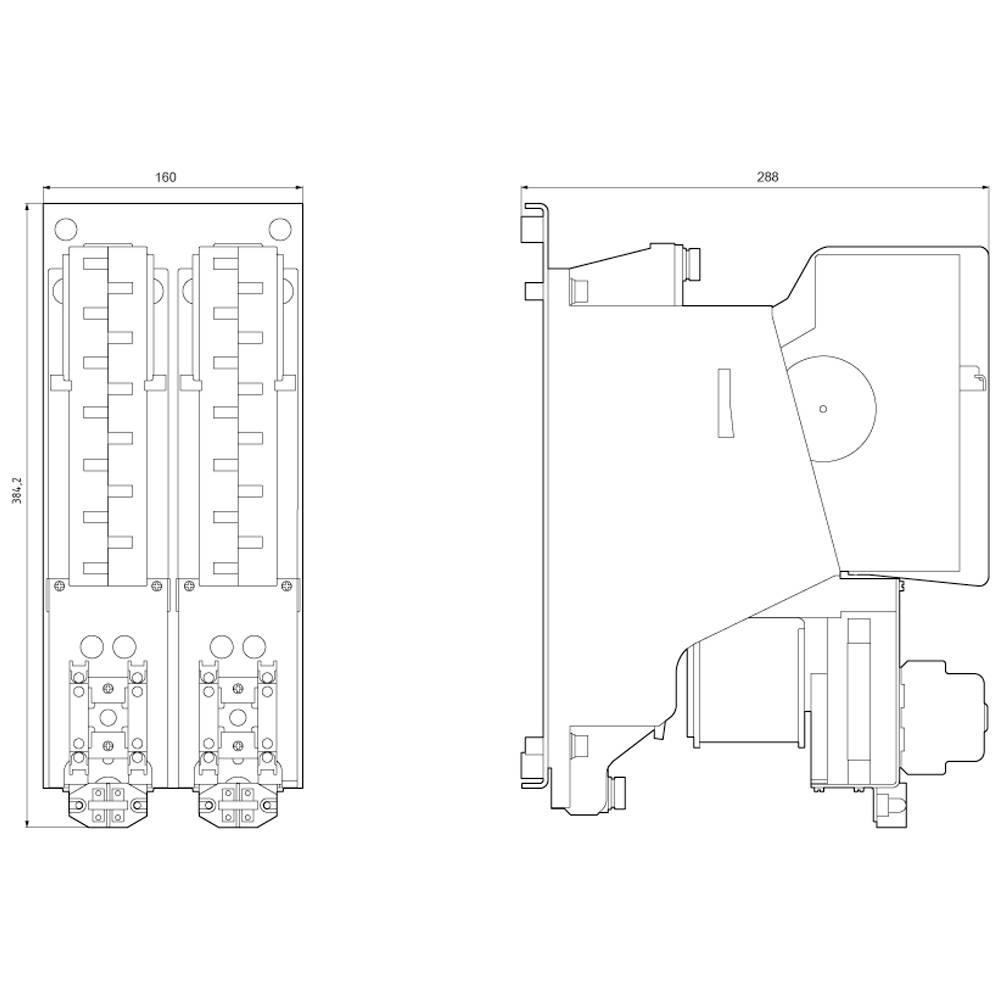

- Width
160 mm
- Height
375 mm
- Depth
290 mm
- Dim
(W x H x D) 160 x 375 x 290 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
2
0
4
4
Screw connection
140 kW
400 A
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1739405 Siemens 3TC7814-0EF Contactor 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1739405 Siemens 3TC7814-0EF Contactor 2 makers 1 pc(s)
Description
Steel rope 3 mm (length 20 m) with red plastic sheath
