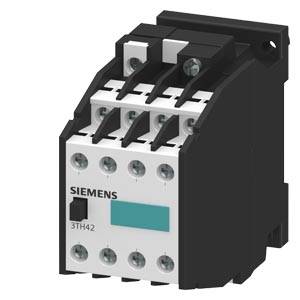

Siemens 3TH4244-0AB0 Auxiliary contactor 4 makers, 4 breakers Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
8-pin
Connection
Screw terminal
Packaging type
Piece
Type
3TH4244-0AB0
Datasheet (PDF)
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
14-day return policy included
Highlights & Details
CONTACTOR RELAY 44E EN 50 011
Our service for you
Technical specifications
- Type of voltage: AC
- Packaging type
Piece
- Product type
Auxiliary contactor
- Type
3TH4244-0AB0
- No. of pins
8-pin
- Contact type
4 makers
4 breakers
- Auxiliary contact type
4 breakers
4 makers
- Control voltage (min.)
24 V AC
- Control voltage (max.)
29 V AC
- Control voltage range
24 - 29 V AC
- Mounting type
Snap-in
Screw-fit
- Connection
Screw terminal
IP20
- Min. temperature
-25 °C
- Max. temperature
+55 °C

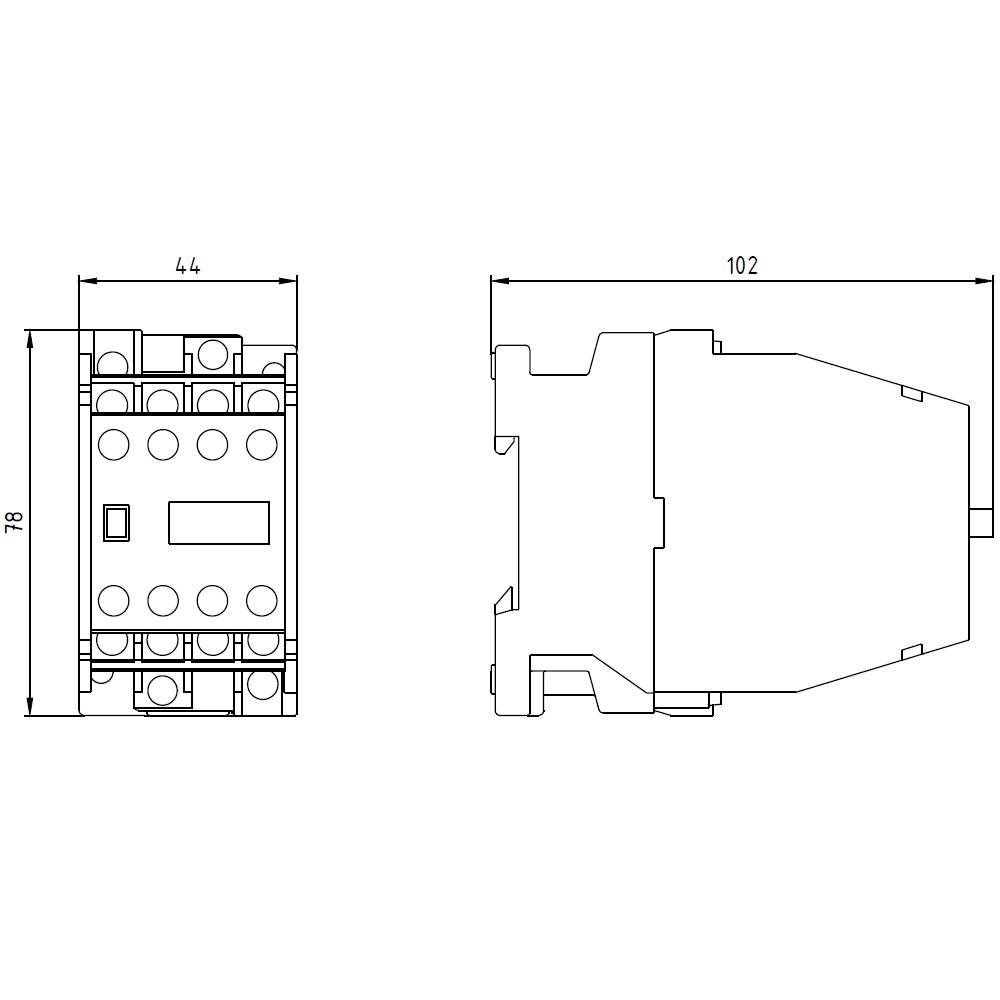

- Width
45 mm
- Height
78 mm
- Depth
102 mm
- Dim
(W x H x D) 45 x 78 x 102 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
4
4
6 A
0
Screw connection
0
0
AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1729771 Siemens 3TH4244-0AB0 Auxiliary contactor 4 makers, 4 breakers Piece 1 pc(s)
Datasheet 1729771 Siemens 3TH4244-0AB0 Auxiliary contactor 4 makers, 4 breakers Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1729771 Siemens 3TH4244-0AB0 Auxiliary contactor 4 makers, 4 breakers Piece 1 pc(s)
Description
Contactor relay, 44E, DIN EN 50011, 4NO + 4NC, screw terminal AC operation 24 V AC 50 Hz/29 V AC 60 Hz
