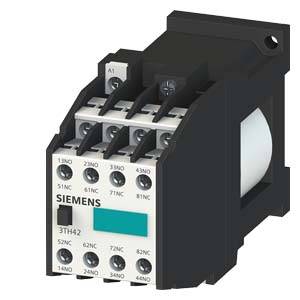

Siemens 3TH4253-0BB4 Auxiliary contactor Compatible with (relay brand): Siemens 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
8-pin
Type
3TH4253-0BB4
Auxiliary contact type
3 breakers
5 makers
Control voltage (min.)
24 V DC
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
CONTACTOR RELAY 62E EN 50 011
Our service for you
Technical specifications
- Type of voltage: DC
- Product type
Auxiliary contactor
- Type
3TH4253-0BB4
- No. of pins
8-pin
- Auxiliary contact type
3 breakers
5 makers
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Compatible with
Siemens
- Mounting type
Snap-in
Screw-fit
IP20
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
45 mm
- Height
78 mm
- Depth
135 mm
- Dim
(W x H x D) 45 x 78 x 135 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
5
3
6 A
0
24-24 V
FALSE
Screw connection
0
0
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1729952 Siemens 3TH4253-0BB4 Auxiliary contactor Compatible with (relay brand): Siemens 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1729952 Siemens 3TH4253-0BB4 Auxiliary contactor Compatible with (relay brand): Siemens 1 pc(s)
Description
Contactor relay, 62E, DIN EN 50011, 6 NO + 2 NC, screw terminal AC operation 42 V AC 50/60 Hz
