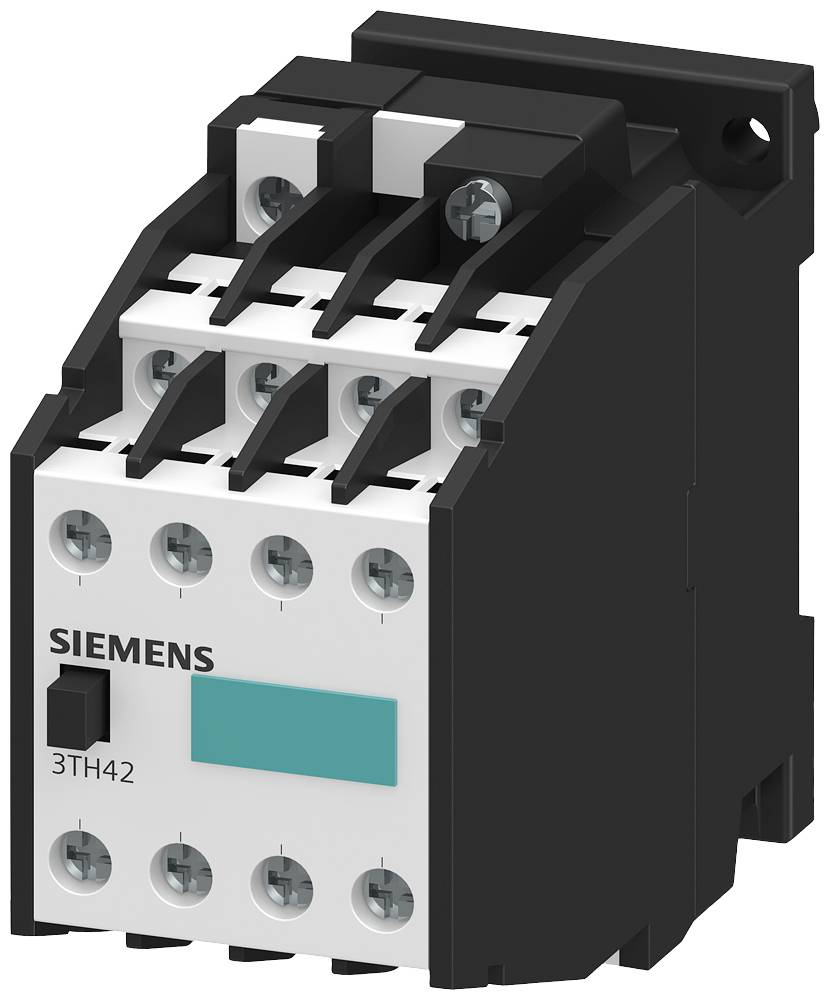

Siemens 3TH4262-0AB0 Auxiliary contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
No. of pins
8-pin
Connection
Screw terminal
Type
3TH4262-0AB0
Auxiliary contact type
2 breakers
6 makers
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Technical specifications
- Type of voltage: AC
- Product type
Auxiliary contactor
- Type
3TH4262-0AB0
- No. of pins
8-pin
- Auxiliary contact type
2 breakers
6 makers
- Control voltage (min.)
24 V AC
- Control voltage (max.)
29 V AC
- Control voltage range
24 - 29 V AC
- Mounting type
Snap-in
Screw-fit
- Connection
Screw terminal
IP20
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
45 mm
- Height
78 mm
- Depth
102 mm
- Dim

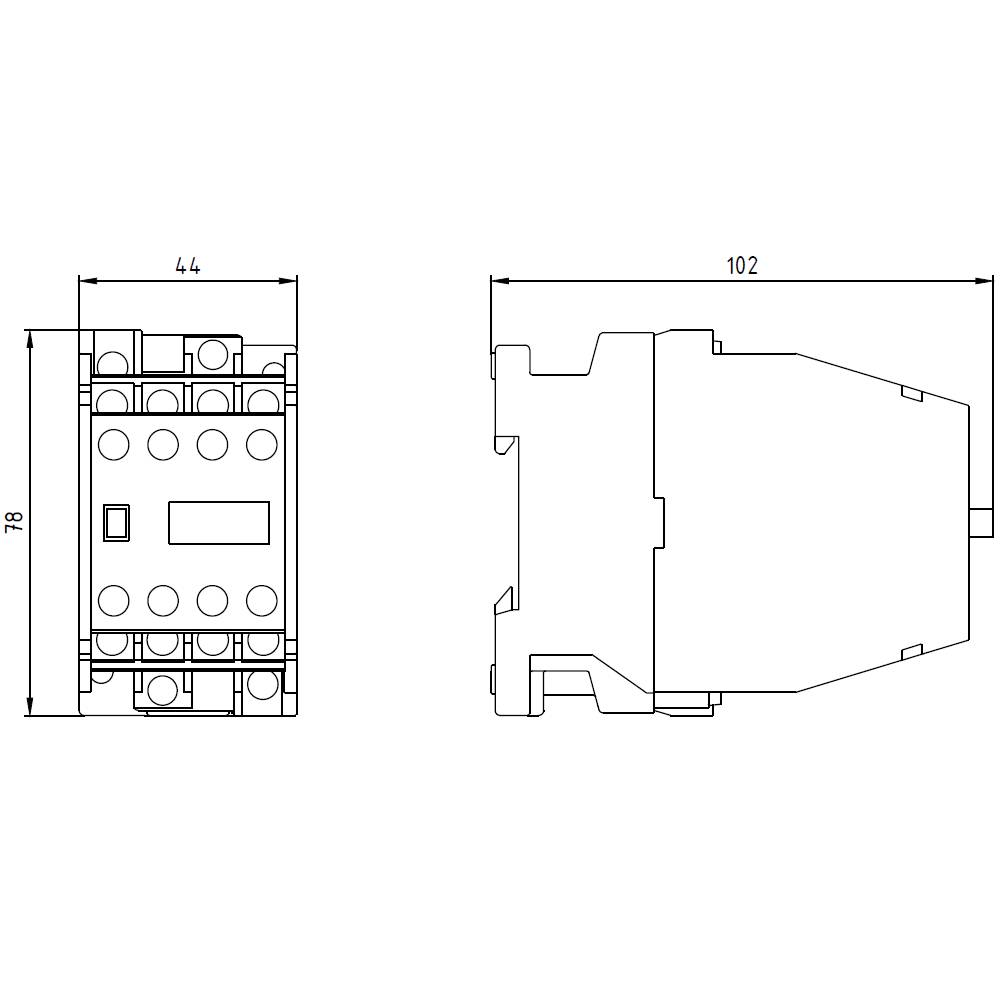

(W x H x D) 45 x 78 x 102 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
6
2
6 A
0
Screw connection
0
0
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1729959 Siemens 3TH4262-0AB0 Auxiliary contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1729959 Siemens 3TH4262-0AB0 Auxiliary contactor 1 pc(s)
Description
Contactor relay, 62E, DIN EN 50011, 6 NO + 2 NC, screw terminal AC operation 120 V AC 60 Hz/110 V AC 50 Hz
