Buy Siemens 3TY2741-2J Auxiliary switch module + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

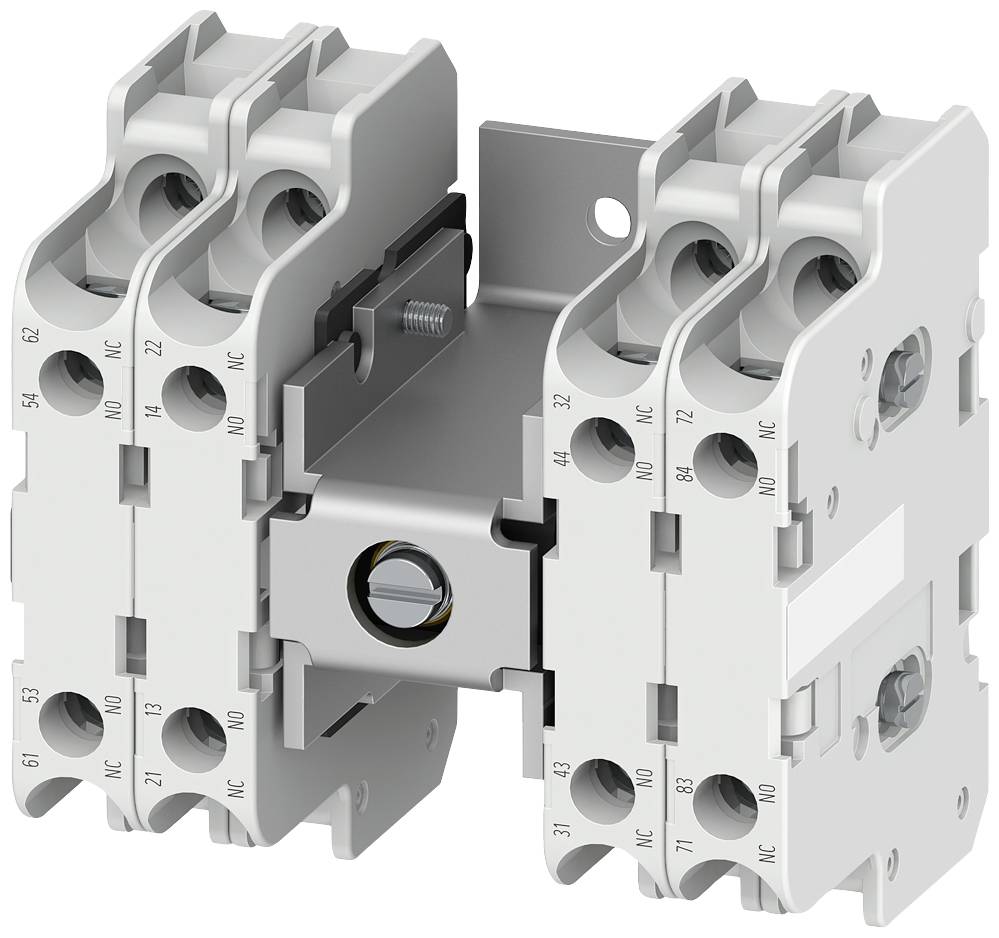

Device with multiple electrical contacts and screw connections. Possibly a component of a switching system or distributor.

Image similar

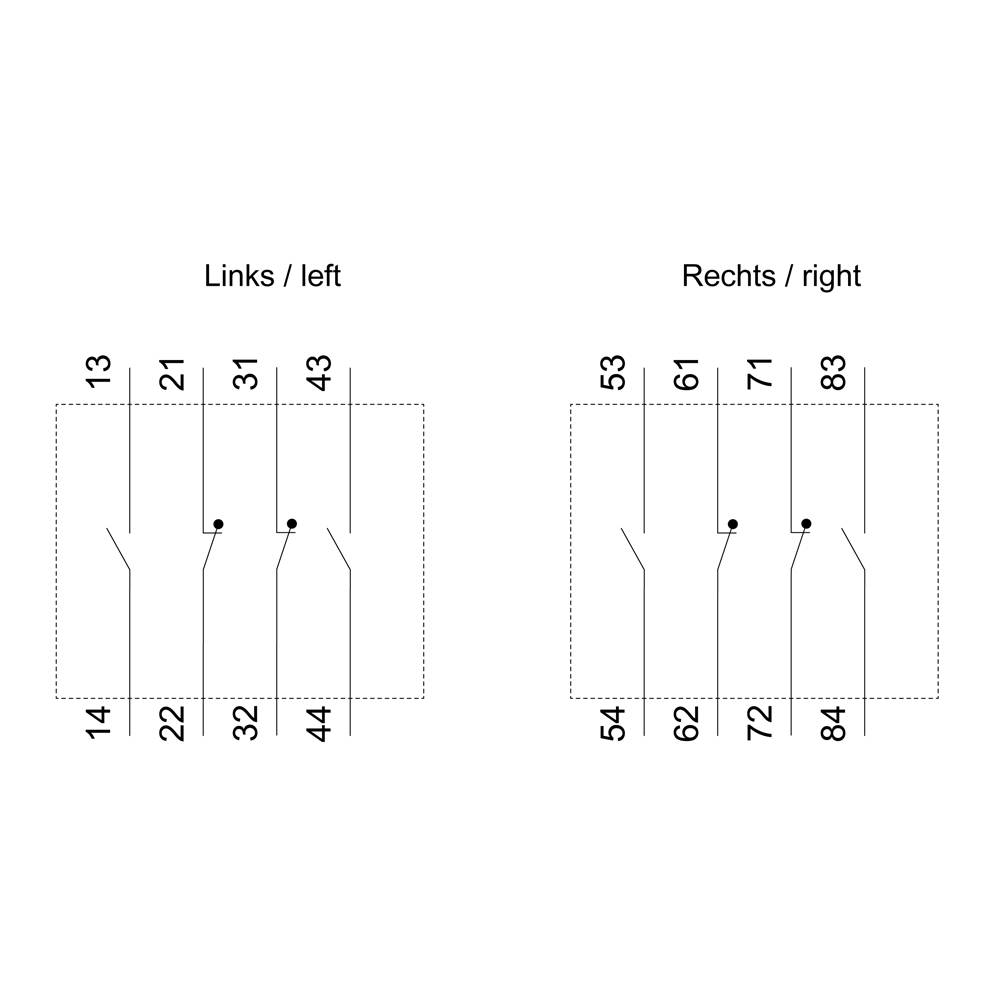

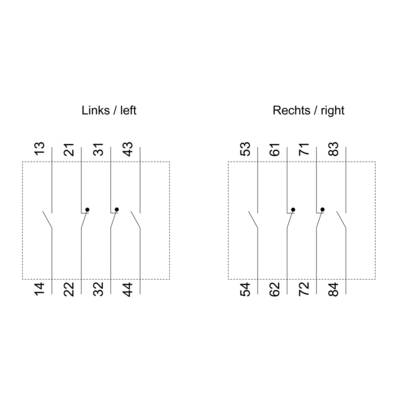

'Links/left' shows a table of connections: 13-14, 21-22, 31-32, 43-44. 'Rechts/right' shows: 53-54, 61-62, 71-72, 83-84.

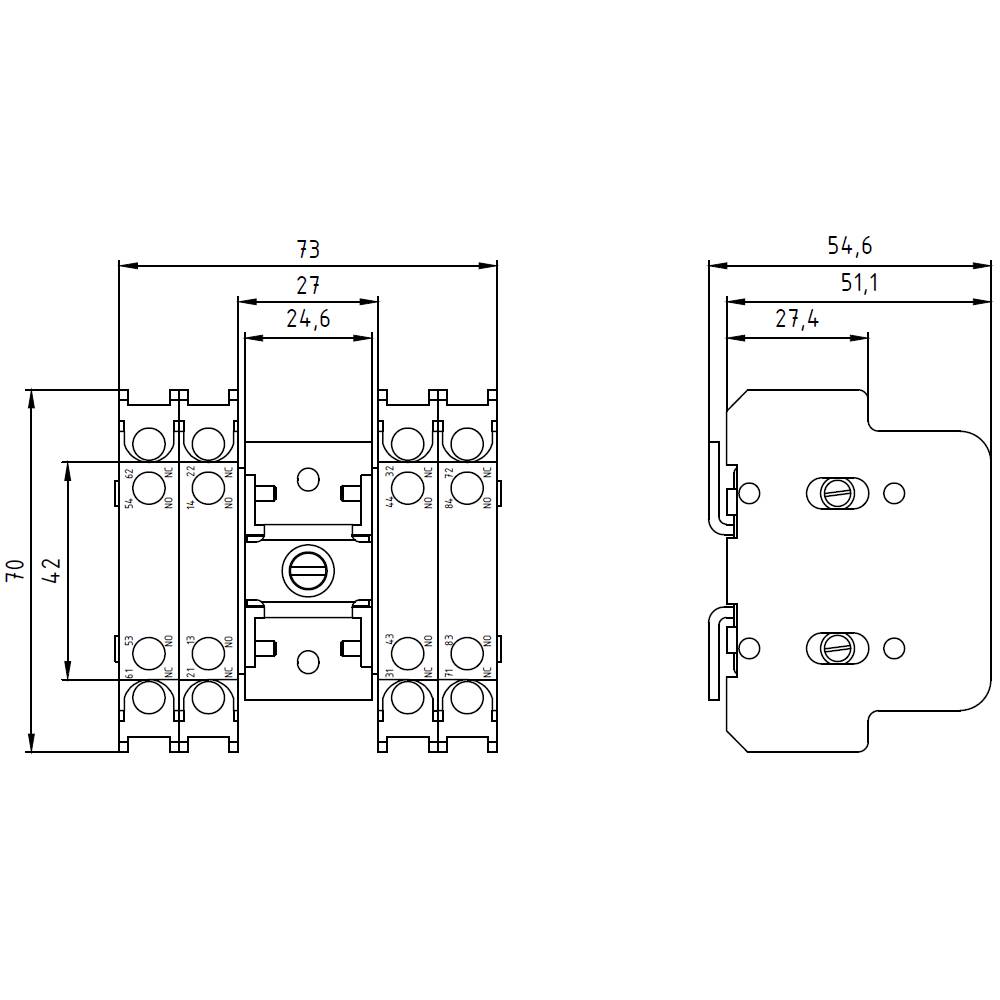

Circuit diagram shows two views of an electrical component with dimensions: 72x73 mm and 54.6x74.2 mm. Connection terminals visible.

1/3

Image similar

Product type

Auxiliary switch module

Packaging type

Piece

Type

3TY2741-2J

Type

Compatible with

Siemens

Datasheet (PDF)

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Size: 12

Packaging type: Piece

Product type: Auxiliary switch module

Type: 3TY2741-2J

Type: 12

Compatible with: Siemens

Features: + auxiliary contact

Mounting type: Snap-in

: IP20

Min. temperature: -25 °C

Max. temperature: +55 °C

Width: 75 mm

Height: 70 mm

Depth: 54 mm

Dim: (W x H x D) 75 x 70 x 54 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Other

: None

: 5.6 A

: Screw connection

: 0

: 4

: 4

: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1742454 Siemens 3TY2741-2J Auxiliary switch module + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1742454 Siemens 3TY2741-2J Auxiliary switch module + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Description

Contactor, Size 2, 2-pole, for railway applications DC-3 and 5, 7.5 A at 750 V 24 V DC Auxiliary contacts 21 (2NO+1NC) with varistor and series resistor Operating range 0.7...1.25xUS Operating range 0.7...1.25xUS
