'Siemens SIMOCODE pro C' motor management device in a black housing with multiple connection terminals and a blue status LED.

Image similar

'Siemens SIMOCODE pro C' motor management device in a black housing with multiple connection terminals and a blue status LED.

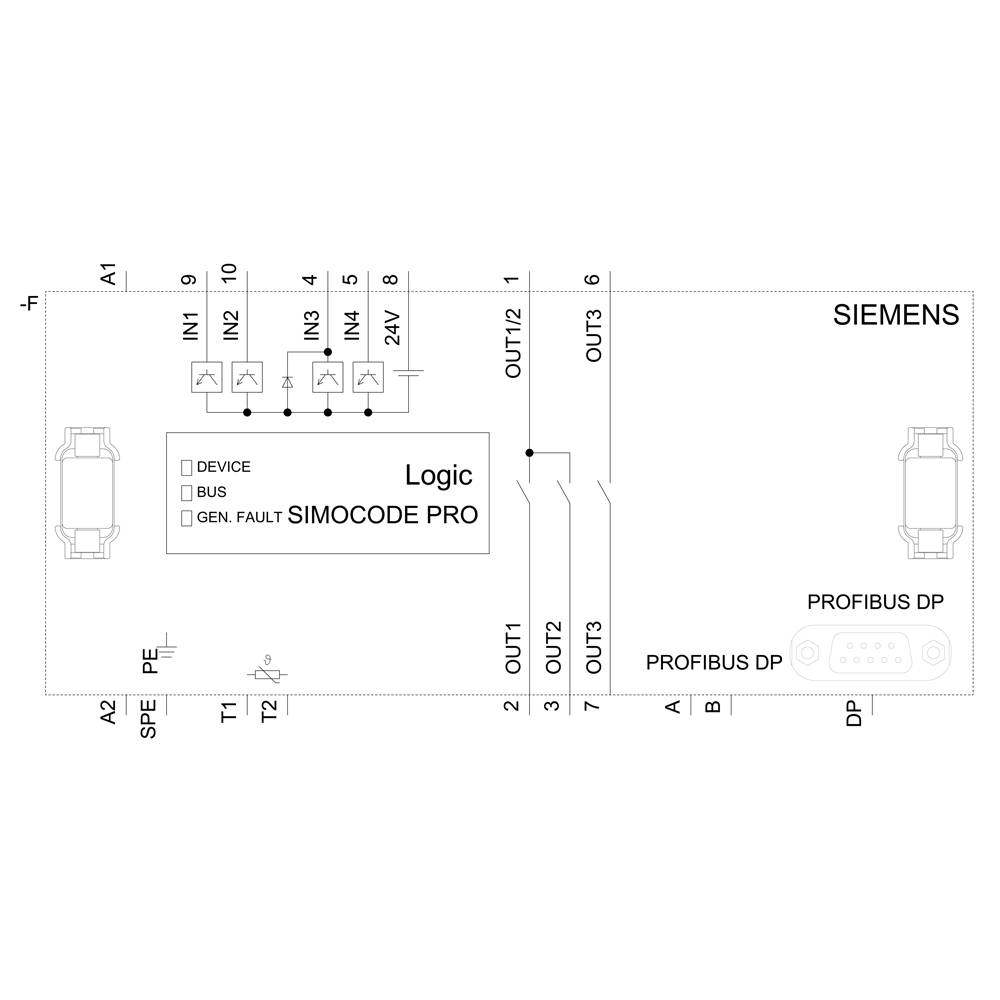

'SIEMENS SIMOCODE PRO' diagram: Shows connections, inputs and outputs. Contains labels for logic, PROFIBUS DP, IN1-4, OUT1-3.

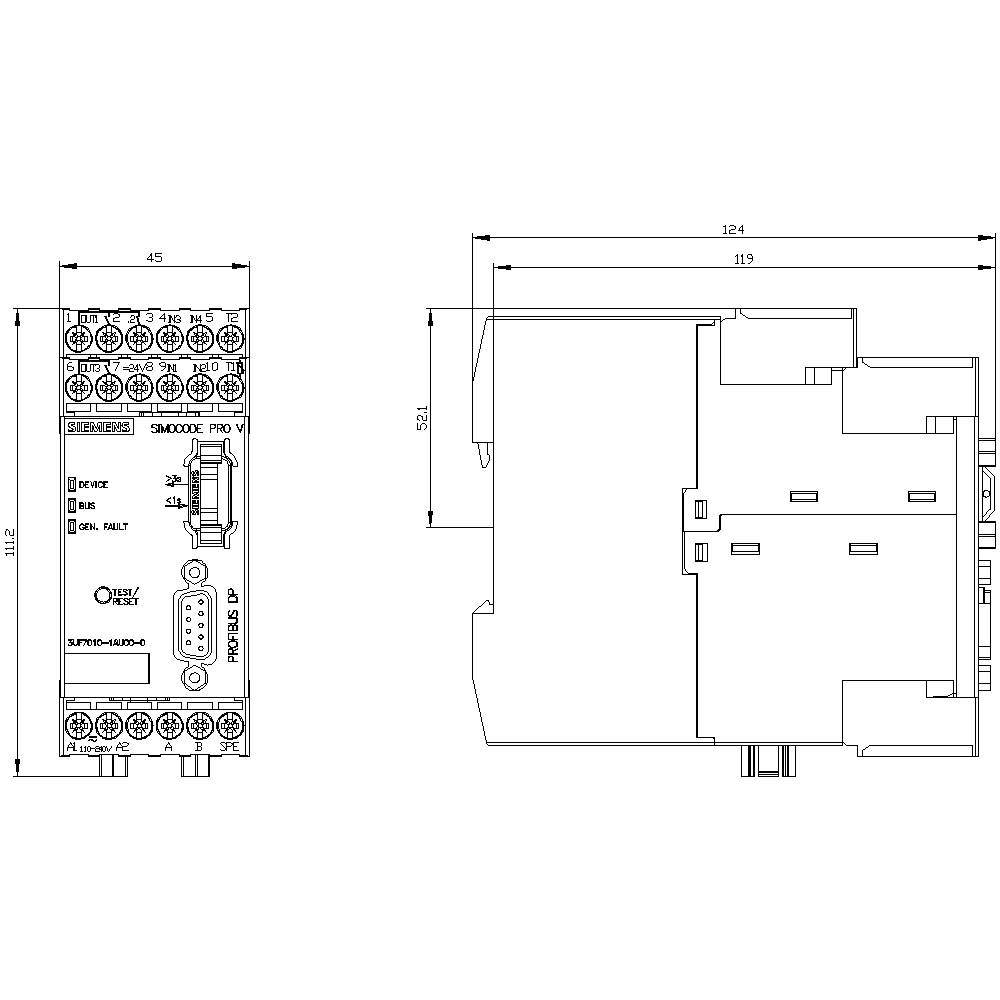

Technical drawing of an electronic device with side and front views. Dimensions: 112 mm height, 45 mm width, 124 mm depth.

1/3

Image similar

Siemens

Datasheet (PDF)

Deutsch (Deutschland)

Currently not available

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 558.82 / piece)

€ 558.82

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design of the Electrical Connection: screw terminals.
Isolation voltage: 300 V
Electrical life: 100000
Mechanical life: 1000 0000
Consumed real power: 3.6 W

Product type: Motor controller

Type: 3UF7010-1AU00-0

Manufacturer part #: 3UF70101AU000

No. of digital inputs (max.): 4

No. of inputs (max.): 4

No. of outputs (max.): 3

Height: 111 mm

Length: 124 mm

Width: 45 mm

: IP20

Series: ET 200

Dim: (L x W x H) 124 x 45 x 111 mm

Content: 1 pc(s)

Display: Optional

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: Mono stable

: 4

: 4

: IP20

: 0

: 3

: Screw connection

: FALSE

: TRUE

: TRUE

: TRUE

: None

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1702861 Siemens 3UF70101AU000 3UF7010-1AU00-0 Motor controller

User & Safety Instructions

User & Safety Instructions 1702861 Siemens 3UF70101AU000 3UF7010-1AU00-0 Motor controller

Description

Surge suppressor Varistor 115...240 V AC/150...290 V DC for contactors size 8...12
