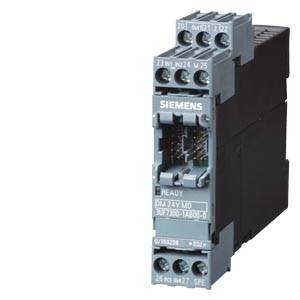

A Siemens electrical relay in dark grey and light grey. Labels are visible. Used in electrical circuits for control purposes.

Image similar

A Siemens electrical relay in dark grey and light grey. Labels are visible. Used in electrical circuits for control purposes.

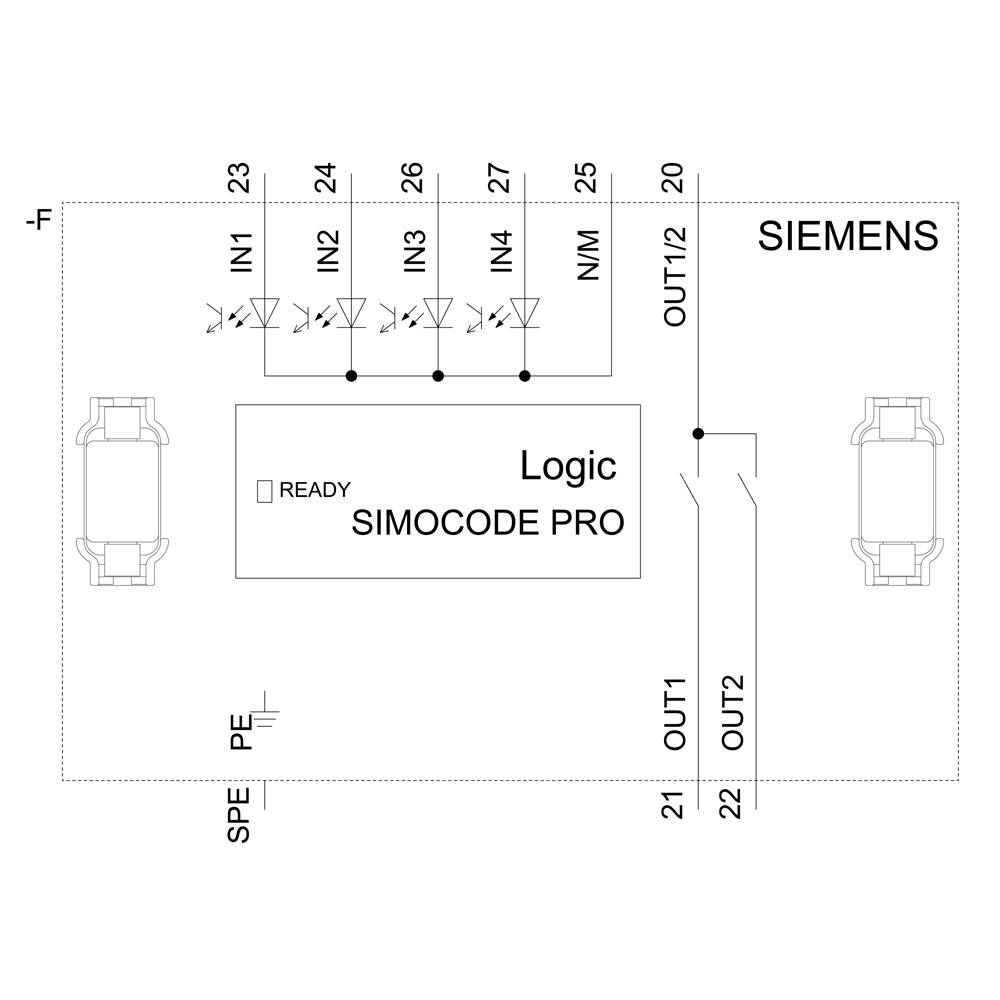

'Siemens SIMOCODE PRO' circuit diagram: Shows logic module and connections: IN1 to IN4, NM. Connections to OUT1, OUT2. 'READY' indicator present.

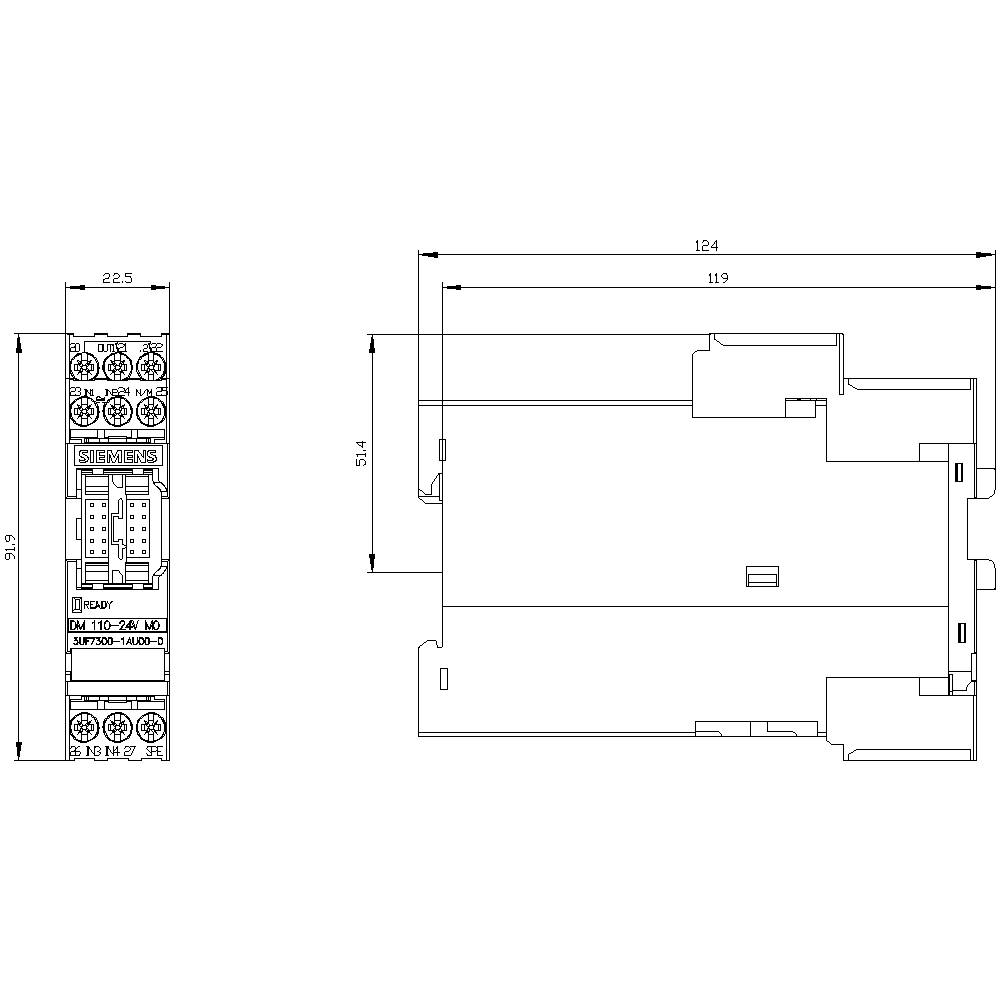

Technical drawing of an electrical device, showing dimensions and connections. Left: illustration of the front view, right: side view with dimension lines.

1/3

Image similar

Siemens

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 197.47 / piece)

€ 197.47

plus VAT.

Report legal concerns

Technical specifications

Isolation voltage: 300 V
Control supply voltage frequency: 50/60 Hz
Control supply voltage: 110V/DC 240 V/DC
Surge voltage resistance: 4000 V
Electrical life: 100000

Product type: Digital module

Type: 3UF7300-1AU00-0

Manufacturer part #: 3UF73001AU000

Type: Screw connector

No. of digital inputs (max.): 4

No. of inputs (max.): 4

No. of outputs (max.): 2

Height: 92 mm

Length: 124 mm

Width: 22.5 mm

: IP20

Dim: (L x W x H) 124 x 22.5 x 92 mm

Content: 1 pc(s)

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: Digital module

: Mono stable

: 4

: 0

: 0

: 4

: 110-240 V

: 110-240 V

: 110-240 V

: IP20

: 0

: 2

: Screw connection

: FALSE

: FALSE

: FALSE

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740724 Siemens 3UF73001AU000 3UF7300-1AU00-0 Digital module

User & Safety Instructions

User & Safety Instructions 1740724 Siemens 3UF73001AU000 3UF7300-1AU00-0 Digital module

Description

Current measuring module, Set current 0.3...3 A Overall width 45 mm, straight-through transformer
