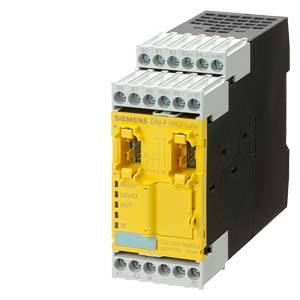

A yellow Siemens DM-F Profisafe module, mounted on a DIN rail, with multiple connection terminals at the top and bottom.

Image similar

A yellow Siemens DM-F Profisafe module, mounted on a DIN rail, with multiple connection terminals at the top and bottom.

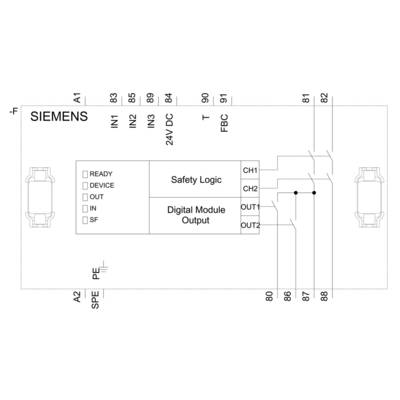

Circuit diagram for Siemens device with inputs IN1 to IN4, outputs OUT1 and OUT2. Contains safety logic and digital module output.

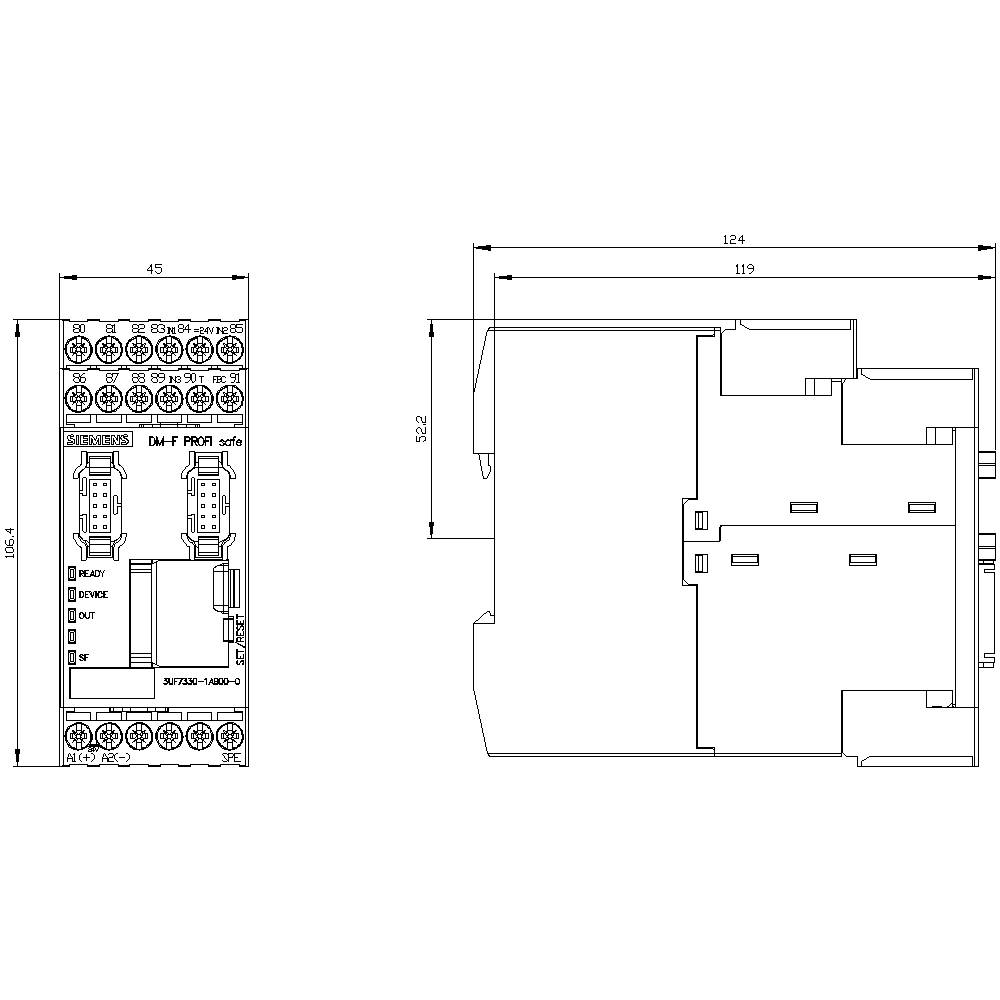

Technical drawing of an electronic device with front and side view. Dimensions are given in millimetres.

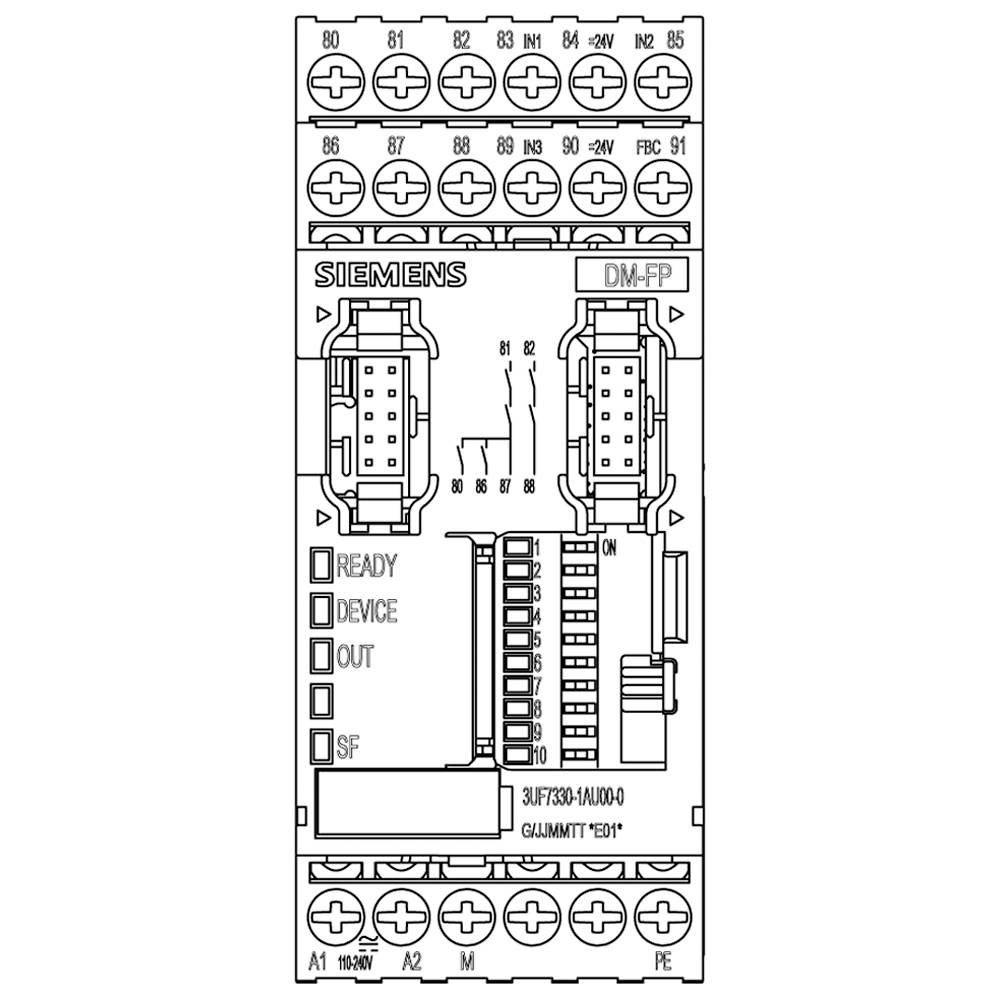

Control unit with connections and displays. Labelled with 'Siemens' and 'DM-EP'. Switches and indicator lights for status and device information.

1/4

Image similar

Siemens

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 516.81 / piece)

€

Report legal concerns

Technical specifications

Isolation voltage: 300 V
Mechanical life: 1000 0000
Electrical life: 100000
Design of the Electrical Connection: screw terminals.
Control supply voltage: 24 V/DC
Thermal current 5 A
Surge voltage resistance: 4000 V
Type of connectable conductor cross-section single-wire: 1 x (0.5 mm² - 4 mm²), 2x (0.5 mm² - 2.5 mm²)

Product type: PLC add-on module

Type: 3UF7330-1AB00-0

Manufacturer part #: 3UF73301AB000

Type: Digital module

No. of digital inputs (max.): 4

No. of inputs (max.): 4

No. of outputs (max.): 2

Height: 106 mm

Length: 124 mm

Width: 45 mm

: IP20

Dim: (L x W x H) 124 x 45 x 106 mm

Content: 1 pc(s)

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: Digital module

: Mono stable

: 3

: 0

: 0

: 3

: IP20

: 0

: 2

: Screw connection

: FALSE

: FALSE

: FALSE

: DC

Documents & Downloads

Datasheet

Datasheet 1740728 Siemens 3UF73301AB000 3UF7330-1AB00-0 PLC add-on module

User & Safety Instructions

User & Safety Instructions 1740728 Siemens 3UF73301AB000 3UF7330-1AB00-0 PLC add-on module

Description

SIRIUS safety relay Basic unit Advanced series electronic enabling circuits 1 enabling circuit 0.5 A Us = 24 V DC screw terminal
